P3.91 Full-Color Interactive Floor Tile Video Game Platform LED Display Stage for Stage Lighting & Display

Product Item : FL Series
Category： Creative Led Screen
P2.5, P2.604, P2.976, P3.91, P4.81, P5.2, P6.25
Pressure-sensitive / Infrared touch, real-time response

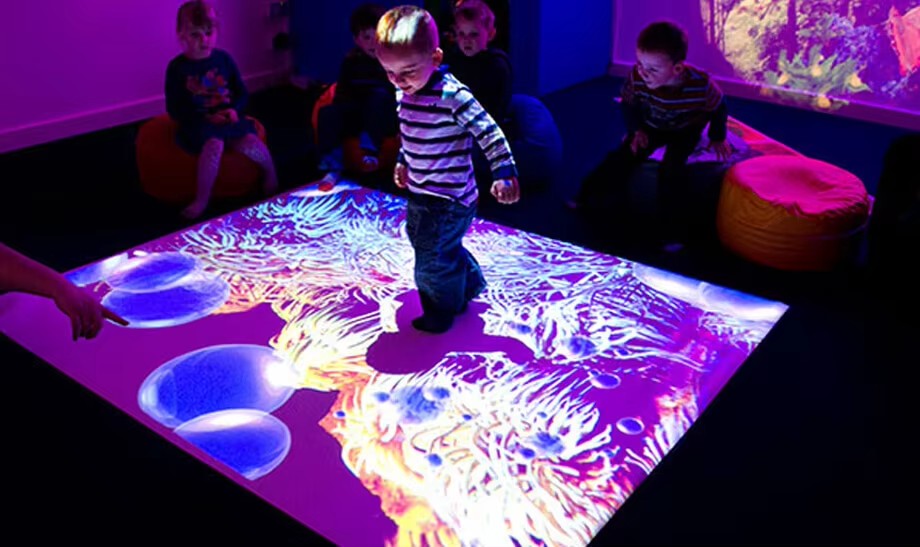

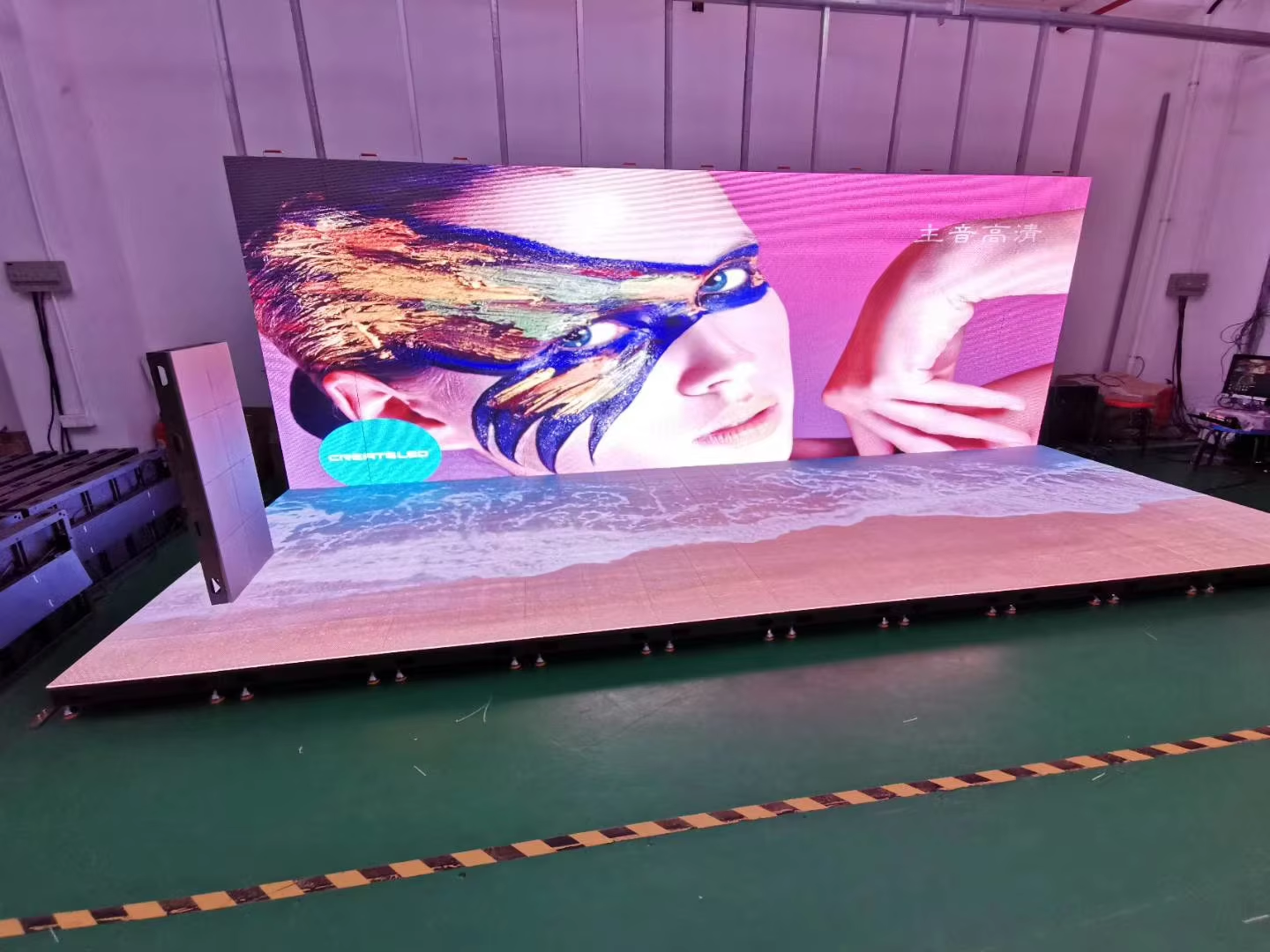

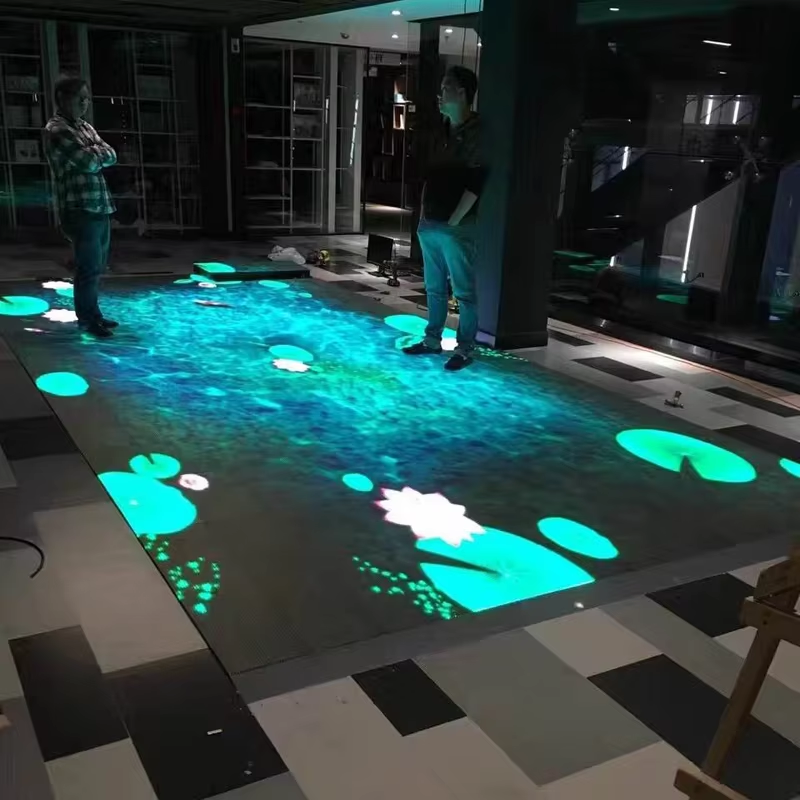

Interactive floor display, stage lighting, gaming platform, exhibition
IP65 waterproof, high brightness (≥1200nits), modular design
Product description：Pressure-sensitive P3.91 LED floor display creates dynamic stages & interactive game platforms. Waterproof, modular, with high brightness visuals.
Attachment INQUIRY EMAIL

P3.91 Indoor Interactive LED Floor Display

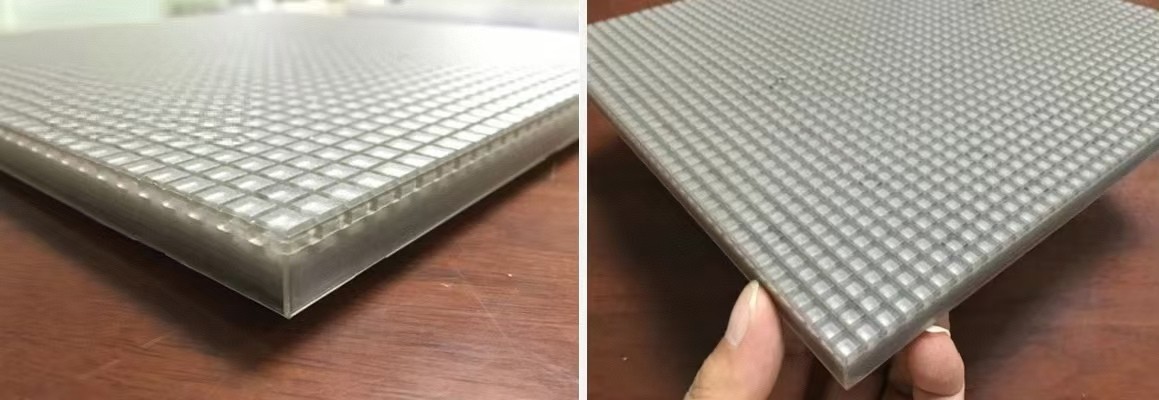

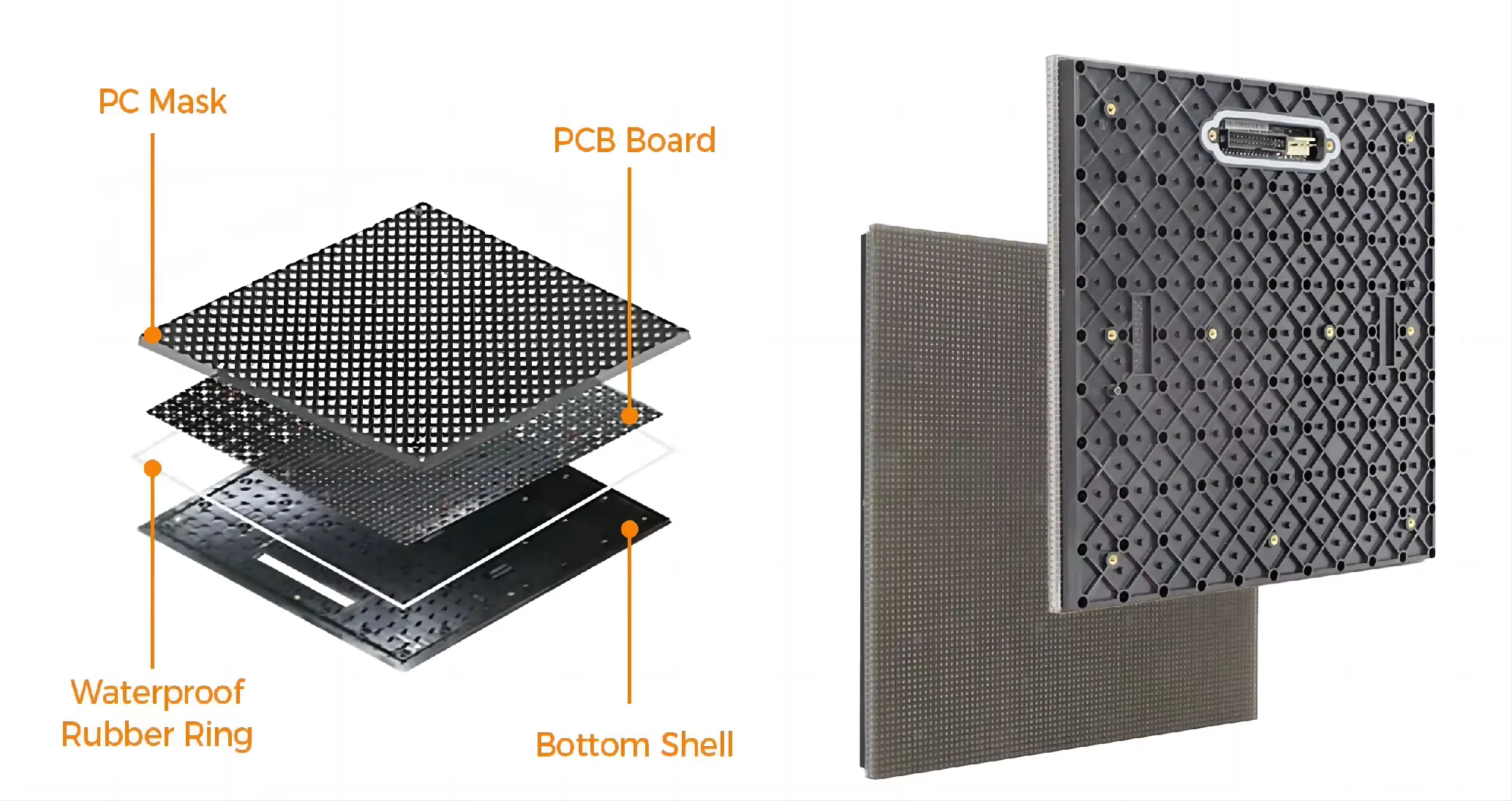

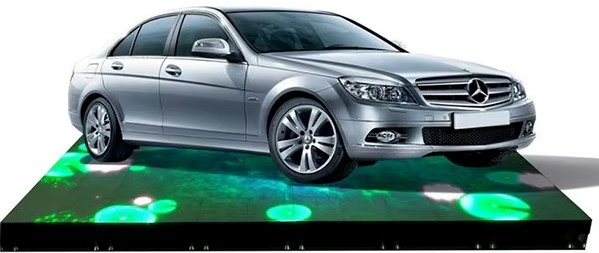

1) Strong load-bearing, the PC cover is made of anti-slip and the bearing weight is above 2T

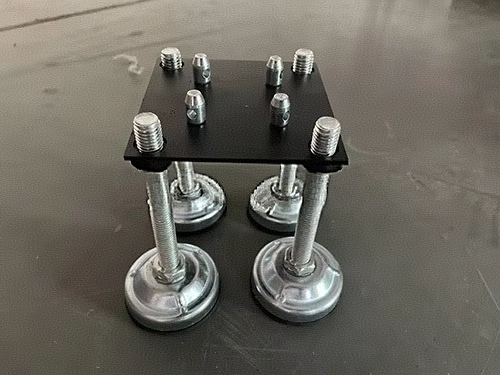

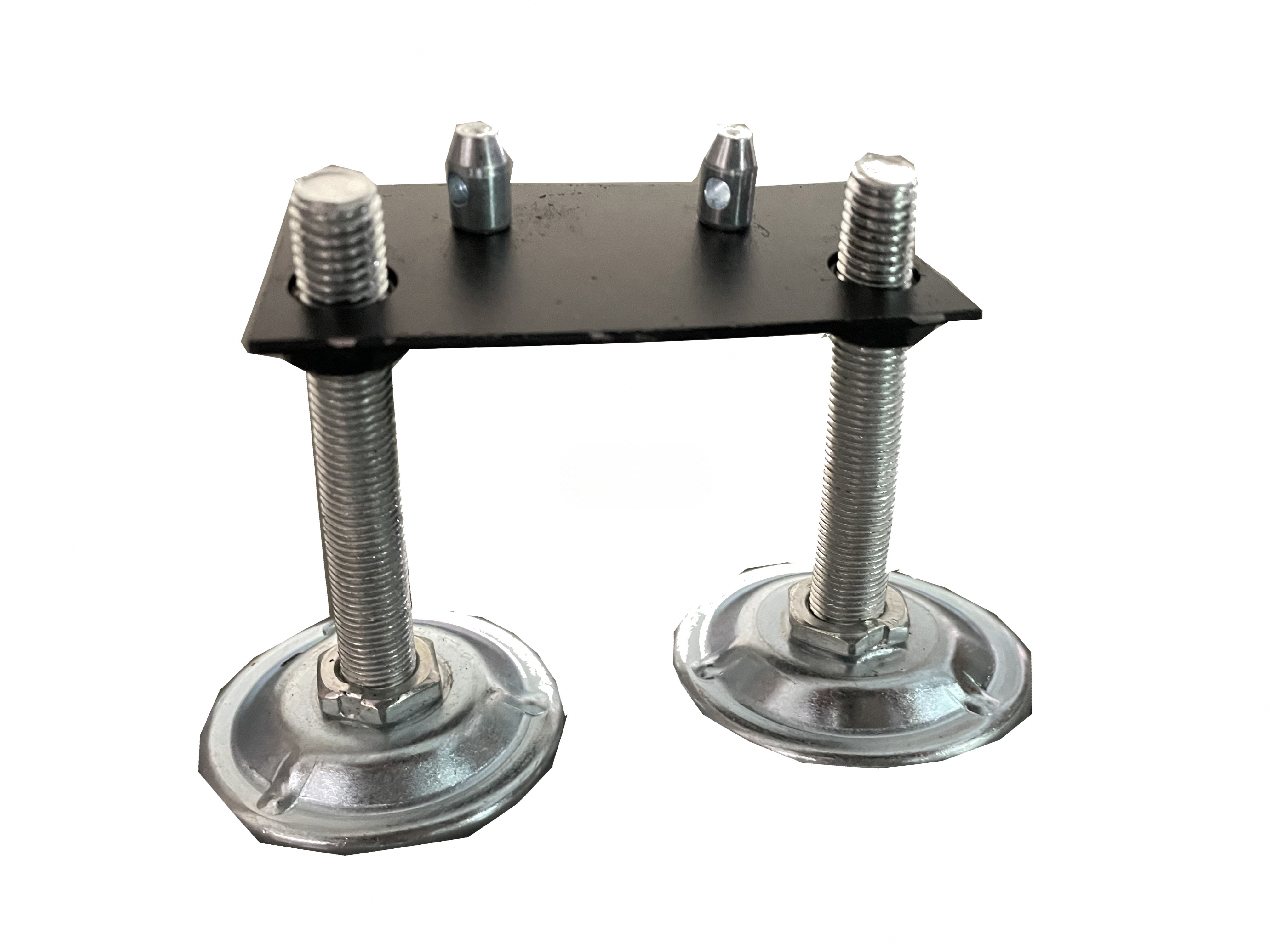

2) Adjustable foot to reach great flatness and seamless splicing

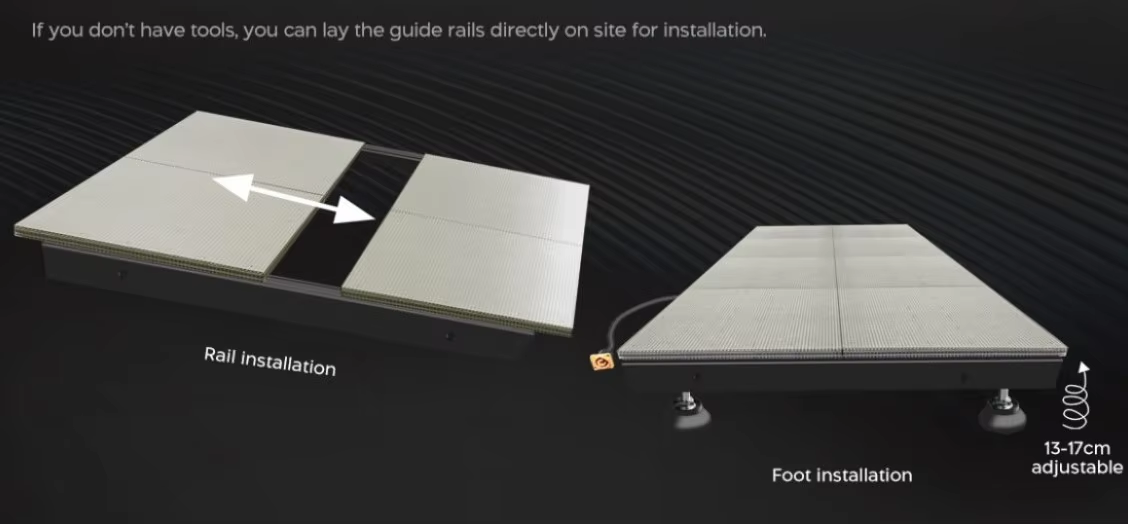

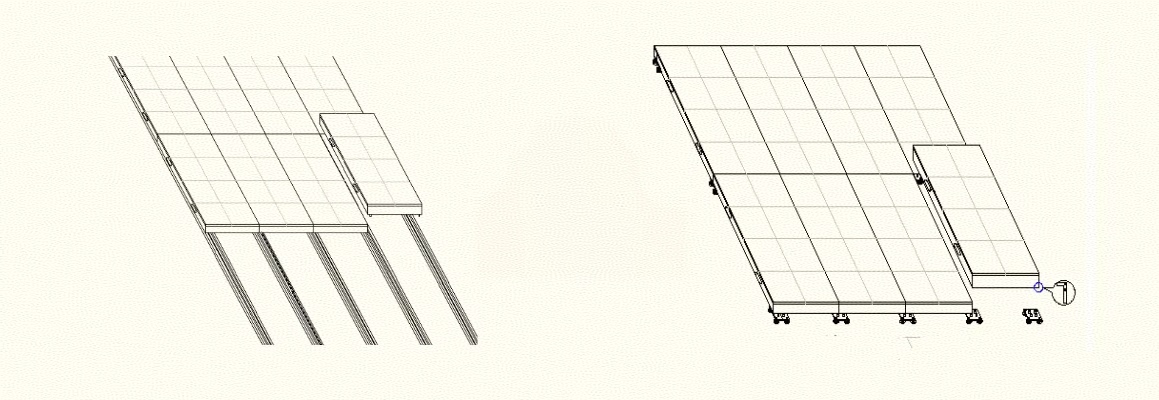

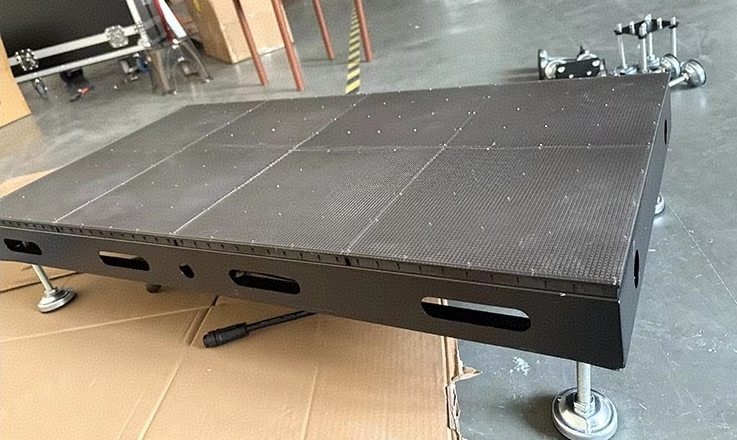

3) Foot stand and track installation method for option

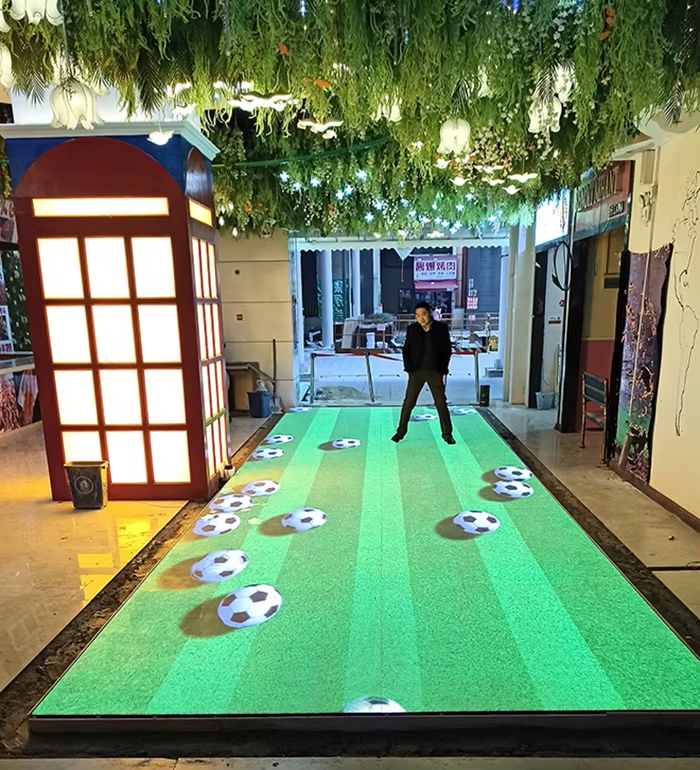

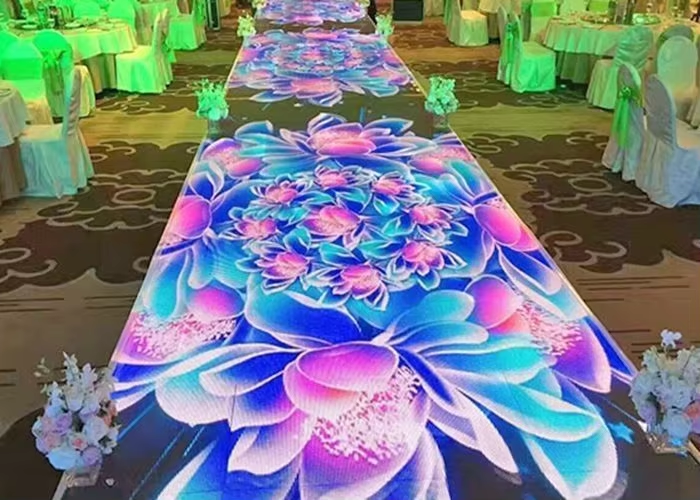

4) Widely using applications, like DJ, club, shopping mall, and all kinds of events

5) Parameters

Pixel Pitch	P2.5	P2.6	P2.976	P3.91	P4.81	P5.2	P6.25
Module Resolution (W*H)	100*100	96*96	84*84	64*64	52*52	48*48	40*40
Module Size (WHD) mm	25025018
Panel Resolution (W*H)	200*200	192*192	168*168	128*128	104*104	96*96	80*80

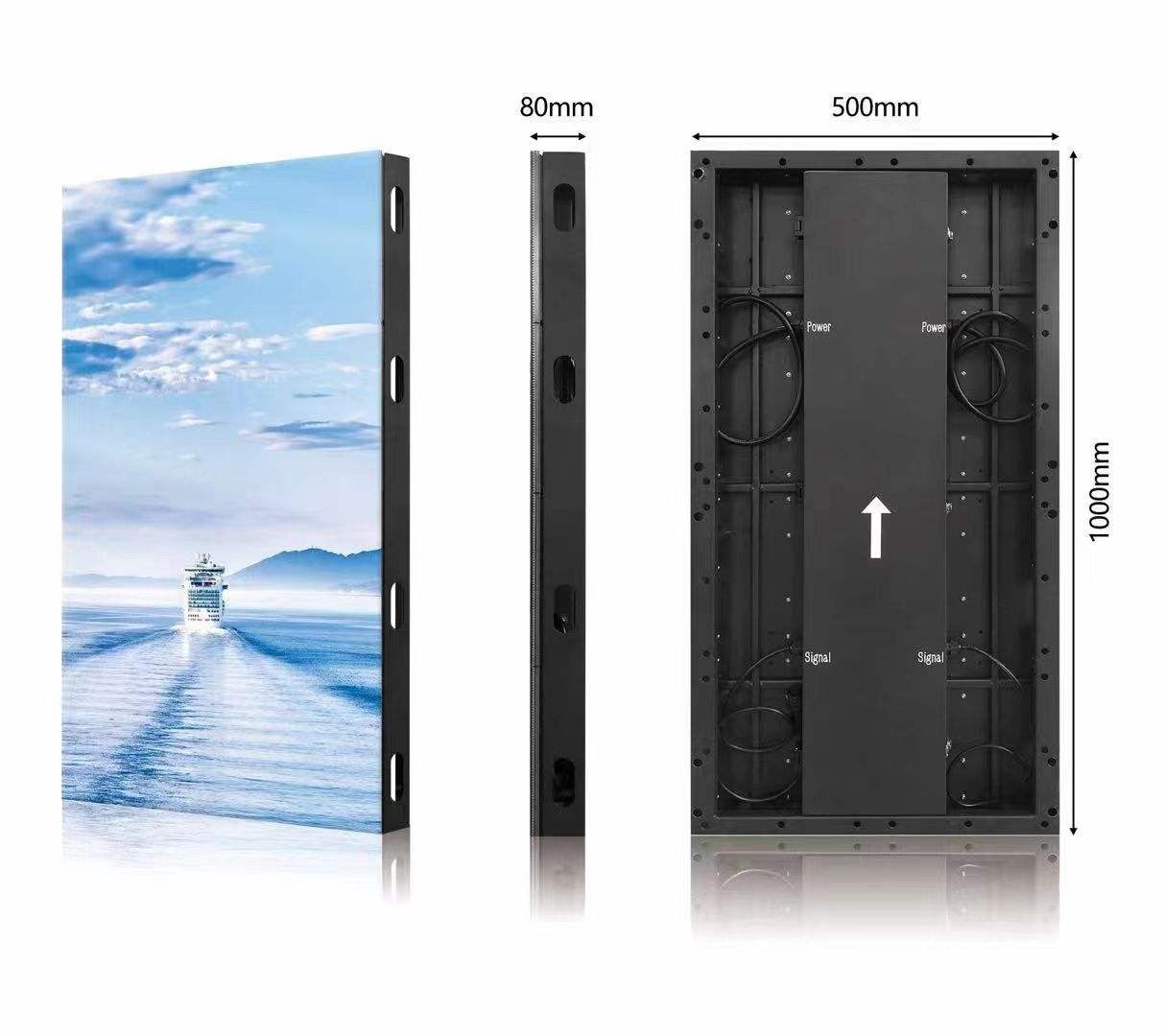

Panel Size (WHD) mm	50050080
	500100080
Resolution(dot/㎡)	160000	147456	112896	65536	43264	36864	25600
Protection level	Indoor(lP54)			Indoor(lP54)/ Outdoor(lP67)
White Balance Brightness (nits)	Indoor ≥1300 / Outdoor ≥3000
Color Temperature (K)	6000-9300 adjustable
View Angle (°)	>120
Power Consumption (A/unit module)	DC 6 ∾7
Max Power Consumption (W/㎡)	800
Average Power Consumption (W/㎡)	300
Power Requirements	AC100-240V
Drive Method	Constant current drive
Frame Frequency(Hz)	50&60
Refresh @60Hz Frame Signal input	≥23840 / ≥7680
Life Typical Value (hrs)	100,000
Work Temperature (°C)	-20-55
Storage Temperature (°C)	-30-60
Defective Ratio	≤4 / 100000
Interaction	Interactive/Non-Interactive
