Using Deep Learning to Scale MicroLED Quality Assessment in Manufacturing

Recent research presents a novel method for mass detection in MicroLED displays, leveraging regression analysis and deep learning to evaluate light output quality directly from on-wafer LED arrays.

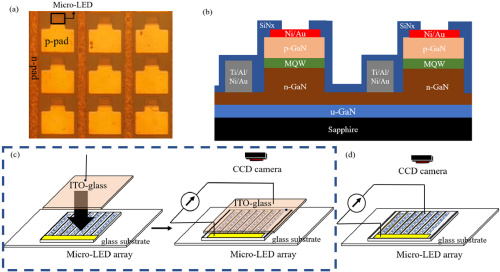

MicroLED characteristic and measurement setup. (a) Top view microscopic image of the whole MicroLED array. (b) The cross-sectional schematic structure. (c)The mass detection measurement setup from ITO-glass attachment to the whole measurement setup. (d) Individual measurement setup. (Source: Optics Express)
This method involves two key stages: calibrating light output power through multi-variable regression analysis and examining MicroLED radiation profiles using 2-D convolutional neural networks (CNNs). By capturing luminescent images and employing a calibration technique that accounts for resistance variations, the approach achieves low average variation in predicted device performance.

The CNN models further enable precise identification of functioning LEDs with high accuracy and precision. This comprehensive approach addresses critical challenges in MicroLED display manufacturing, offering a scalable solution for assessing and ensuring the quality of MicroLEDs before their integration into display substrates.
