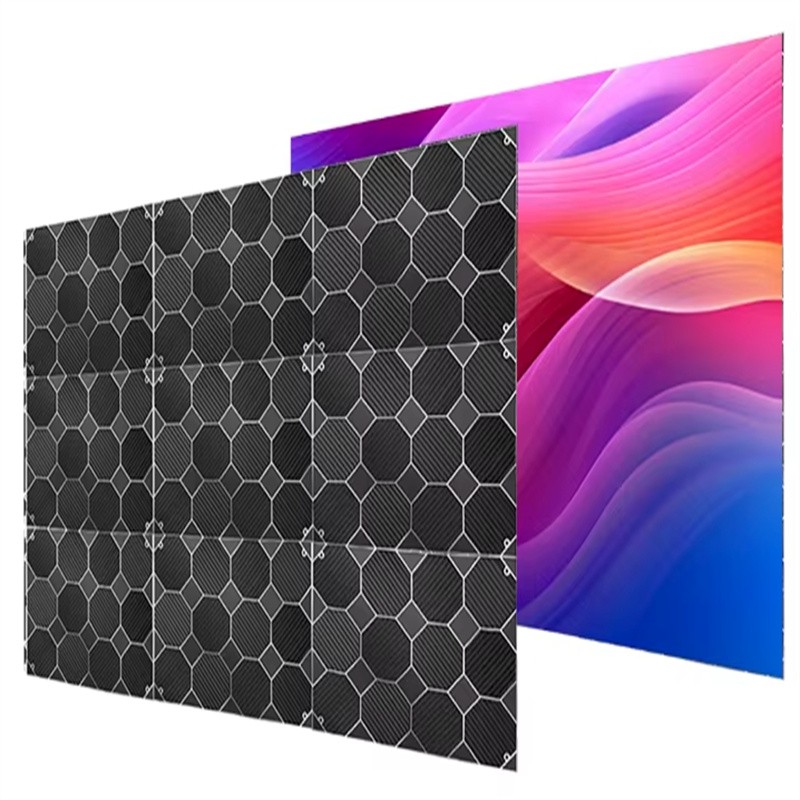

Indoor Small Pitch Wall Fixed LED Display Screen

Product Item : M Series
Category： Indoor LED Display
Low power consumption
Ultra-slim
Magnetic attachment
Seamless splicing
Product description：Combining a high refresh rate, wide viewing angle, and durable energy-efficient design, the CONWIN fixed LED screen delivers reliable performance in demanding command centers.
INQUIRY EMAIL

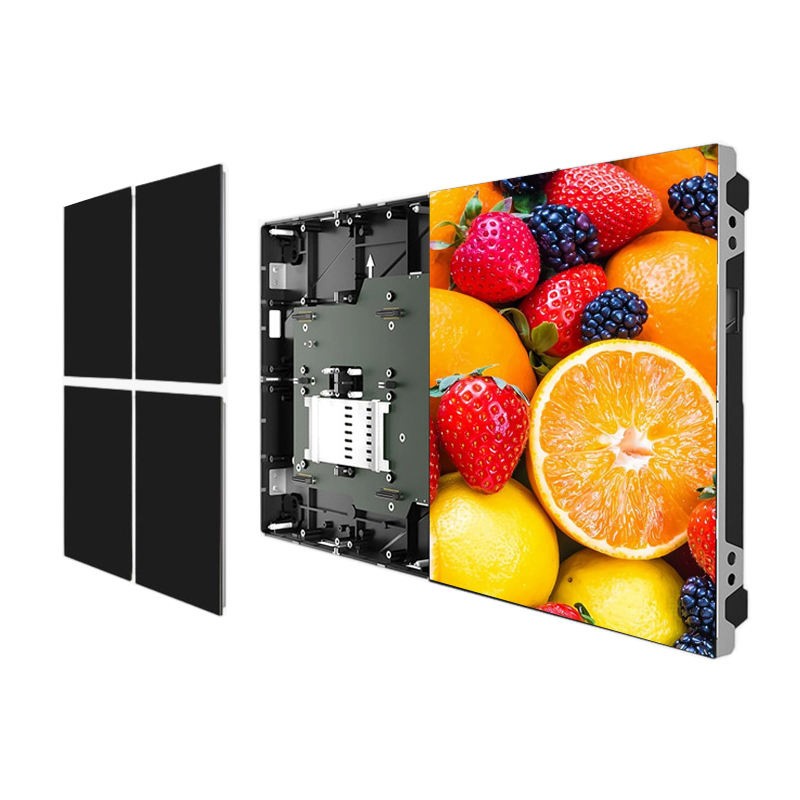

M Series Indoor Wall Fixed Thin Type LED Display Screen

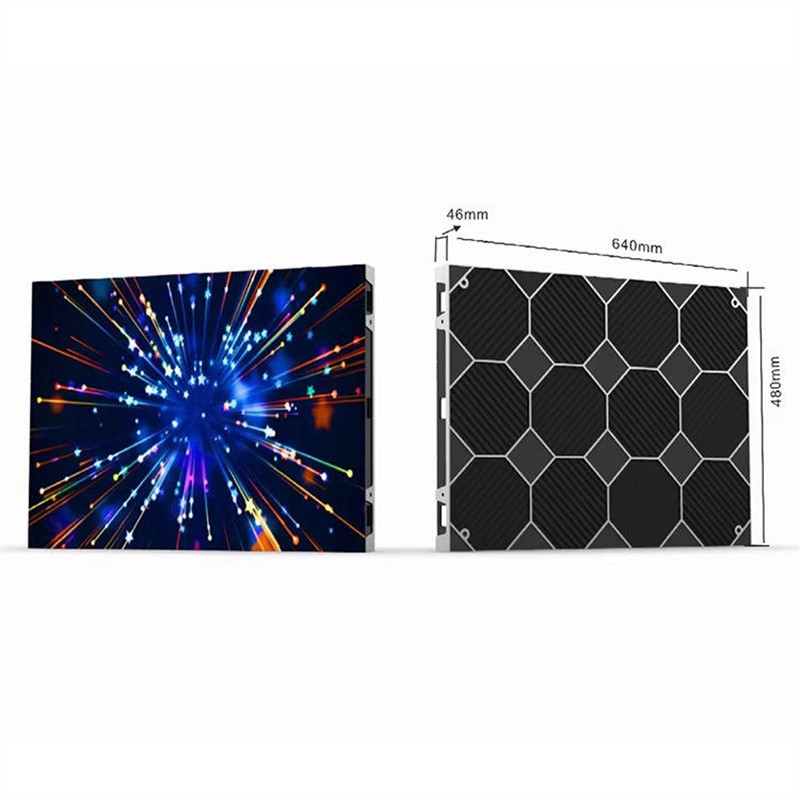

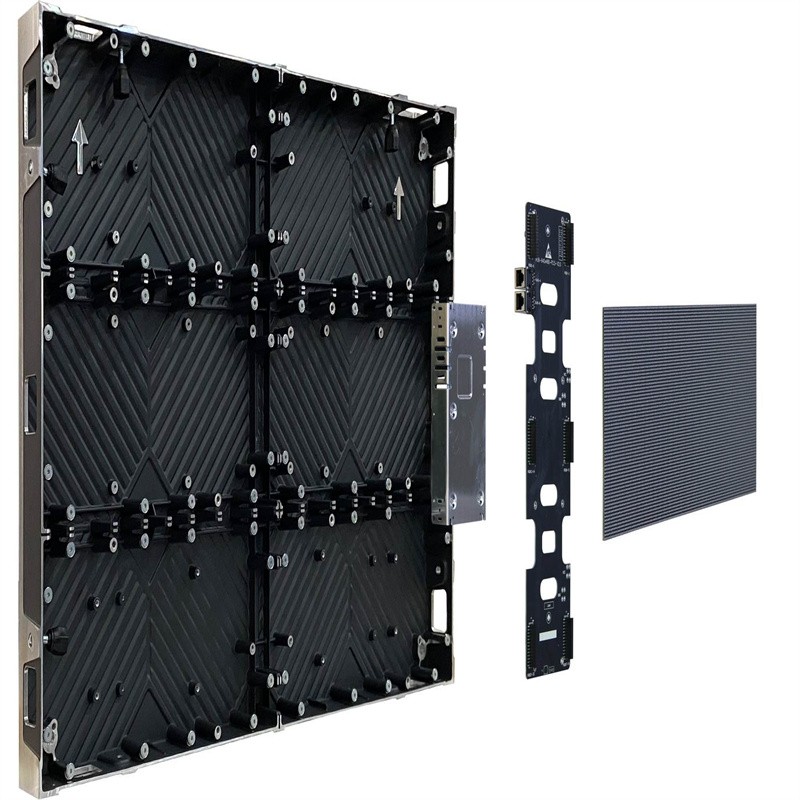

1) 640mm x 480mm thin cabinet

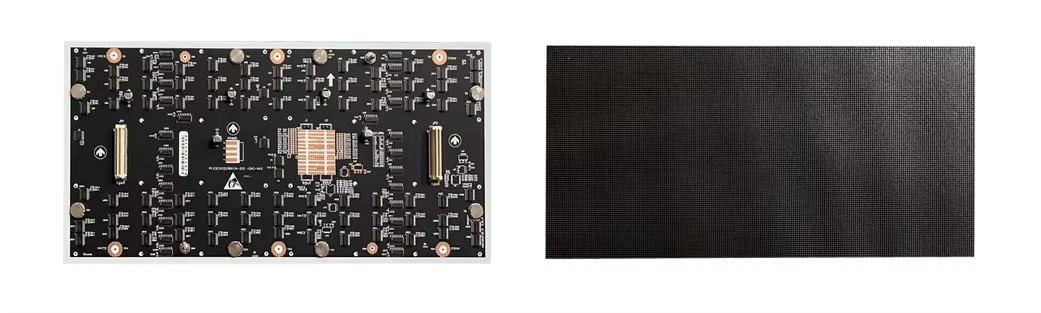

2) 320mm x 160mm magnetic module, various pixel pitches: P1.25 / 1.53 / P1.86 / P2.5

3) High quality lamp beads

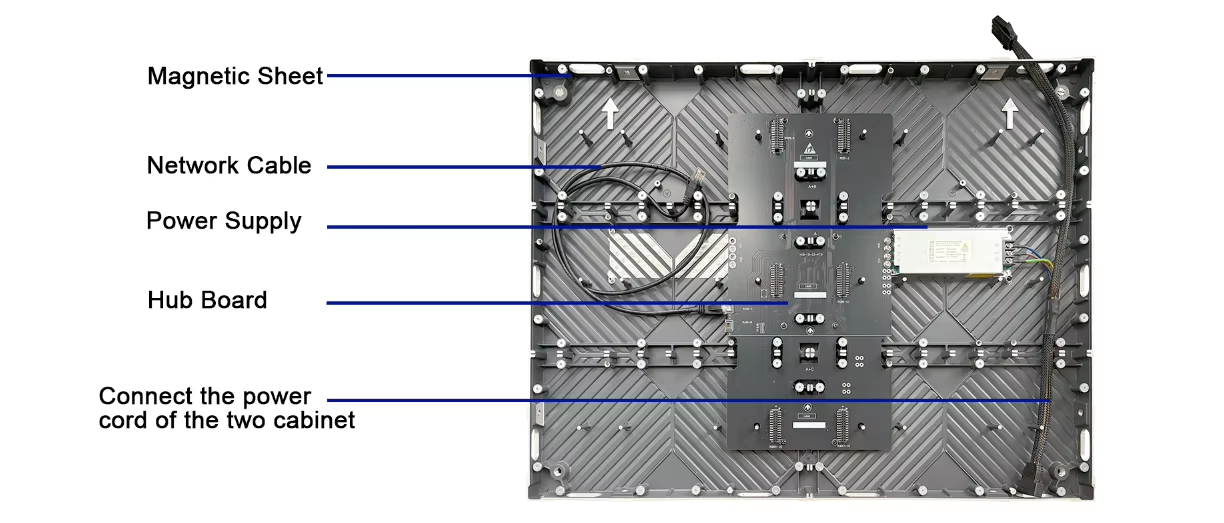

4) Seamless splicing, high definition, easy to install

5) Tailor-made to specific size requirements and can enable wireless connection between modules and cabinets

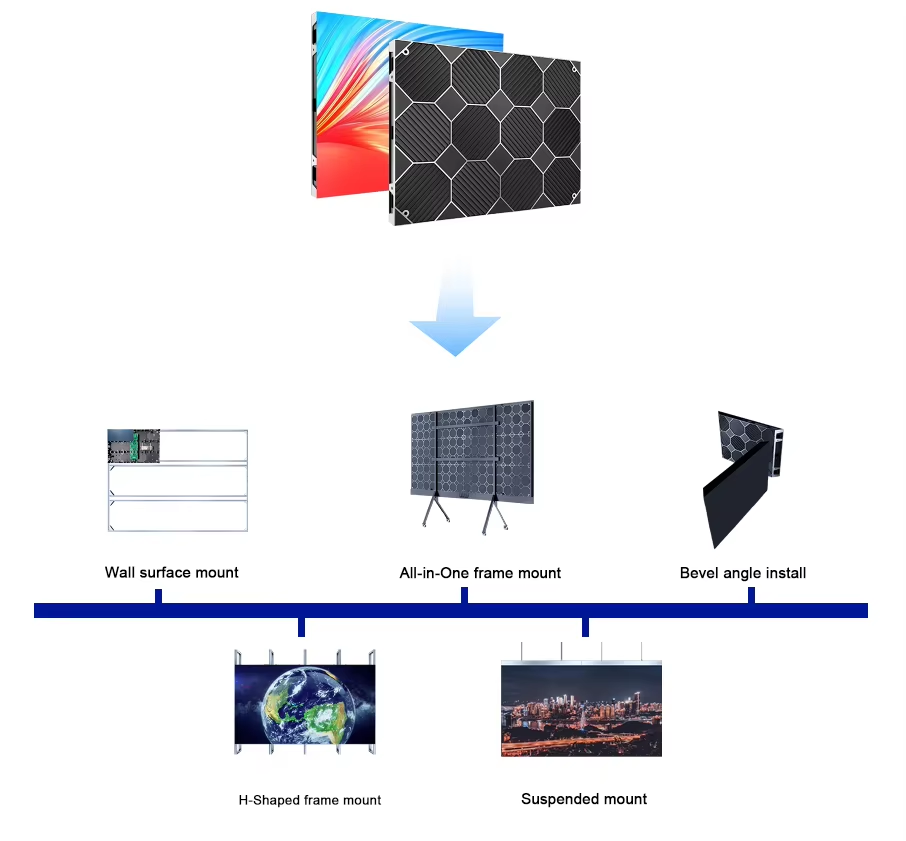

6) Multiple installation methods

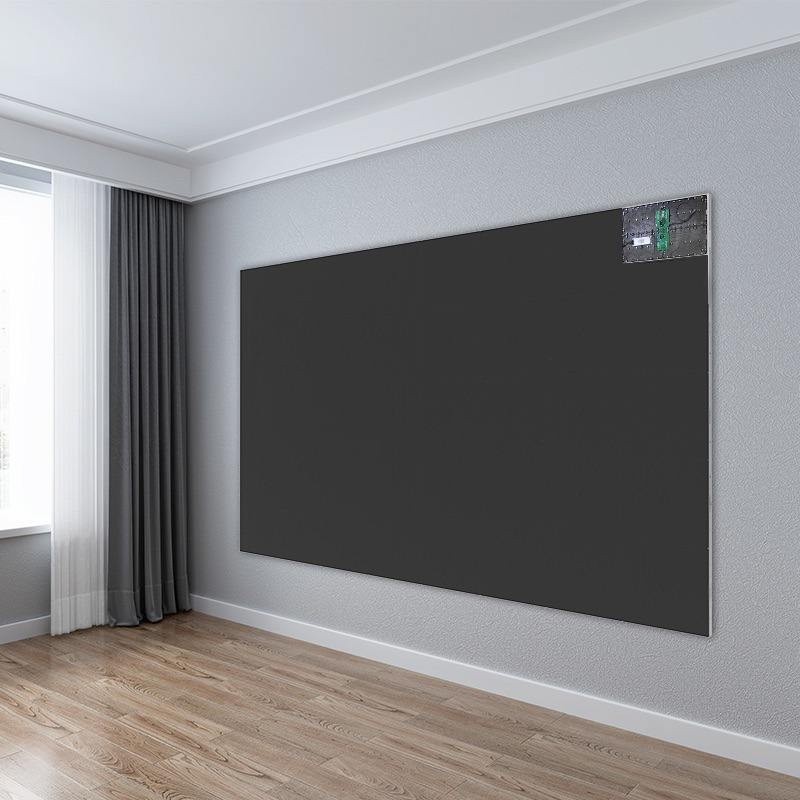

7) On-site installation

8) Parameters

Pixel Pitch	P1.25	P1.53	P1.86	P2	P2.5
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020
Physical Density (dots/m2)	640000	622626	289000	250000	160000
Module Size (W x H)	320x160
Module Resolution	256x64	209x105	172x86	160x80	125x64
Cabinet Size (mm)	640x480
Cabinet Resolution	512x384	418x314	344x258	320x160	256x192
Cabinet Weight (kg)	4.5
Cabinet Material	Die-casting Aluminum
Brightness	800nits	800nits	800nits	1000nits	1000nits
Grey Level	16 bit
Viewing Angle (H/V)	160°/160°
Contrast Ratio	10000:1
Frame Frequency	50/60Hz
Drive Mode	1/64 Scan	1/52 Scan	1/43 Scan	1/40 Scan	1/32 Scan
Refresh Rate (Hz)	3840
Max/Average Power Consumption (W/m2)	690/230
IP Grade	IP40
In put Power	AC90-264V, 47-63 Hz
Working Temperature /Humidity (°C/RH)	-20~60°C/10%~85%
