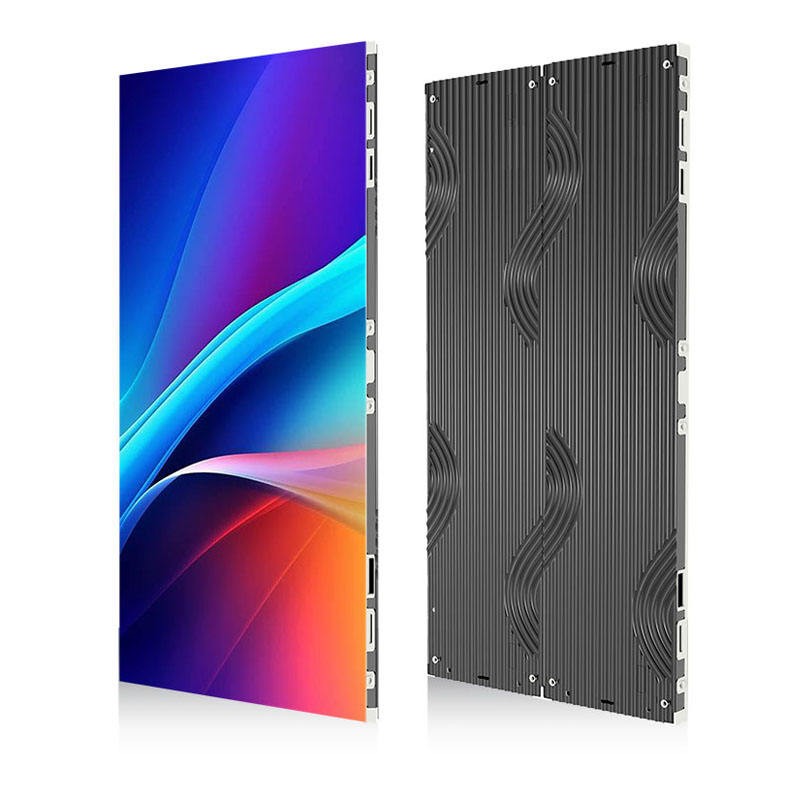

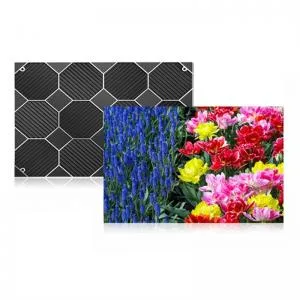

T Series Fine Pitch Indoor Fixed LED Video Wall

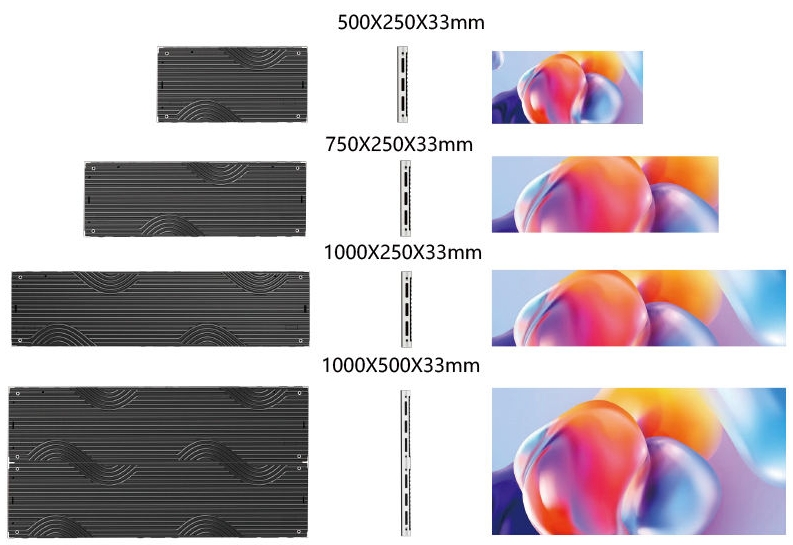

1) Various product sizes available, high precision die-cast aluminum cabinet, and 33mm slim shape

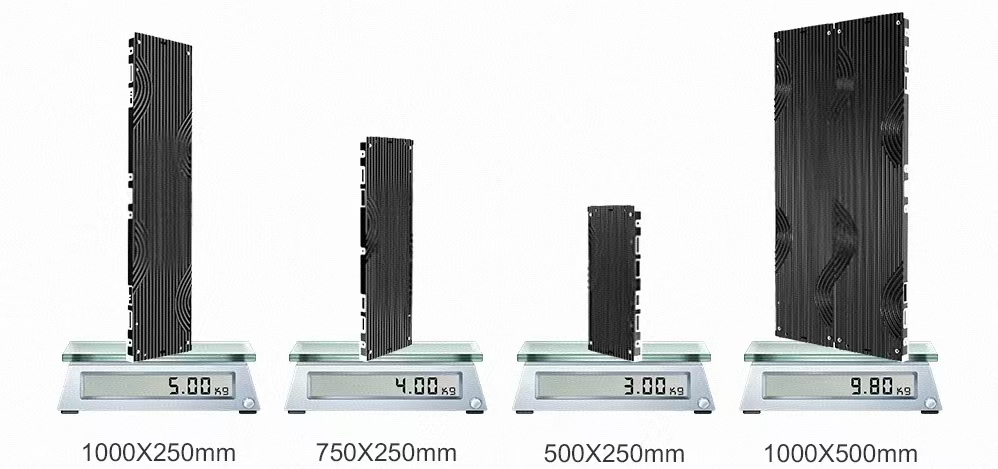

2) Lightweight cabinets for each model

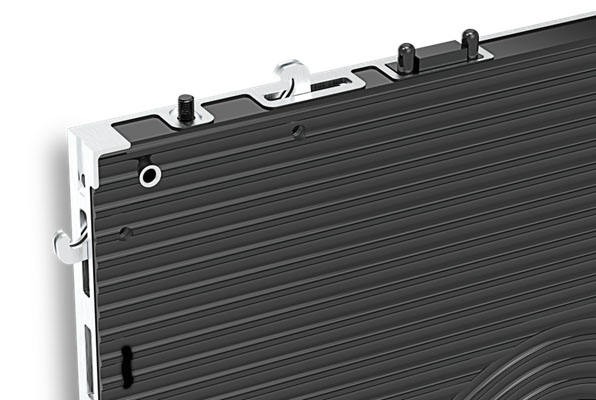

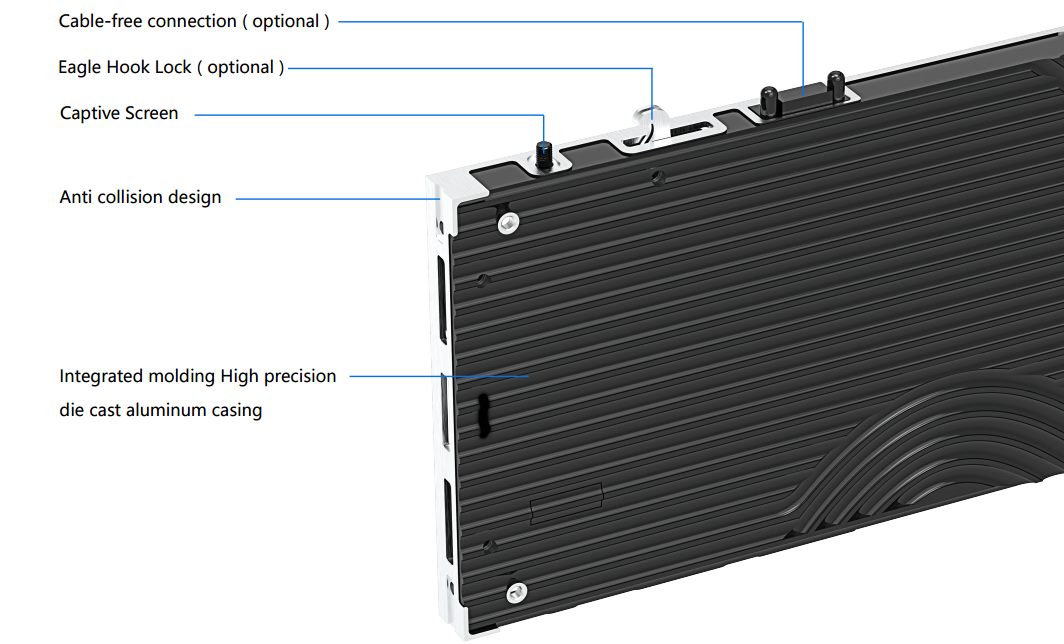

3) Smart cabinet connection design

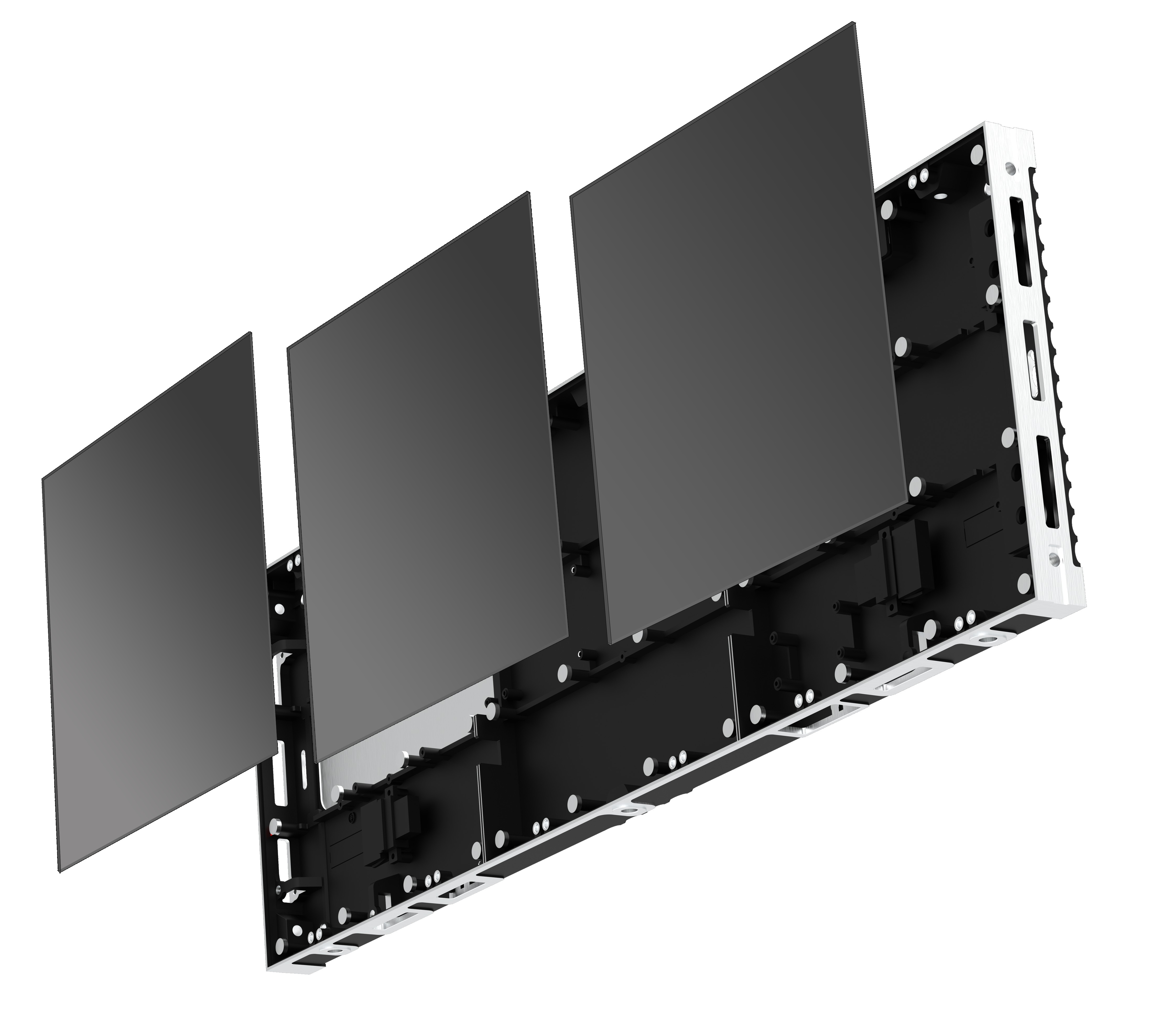

4) Easy and fully front maintenance with cableless-free design, very stable quality performance
5) Innovative module design, supporting 90 ° rotation display without color deviation

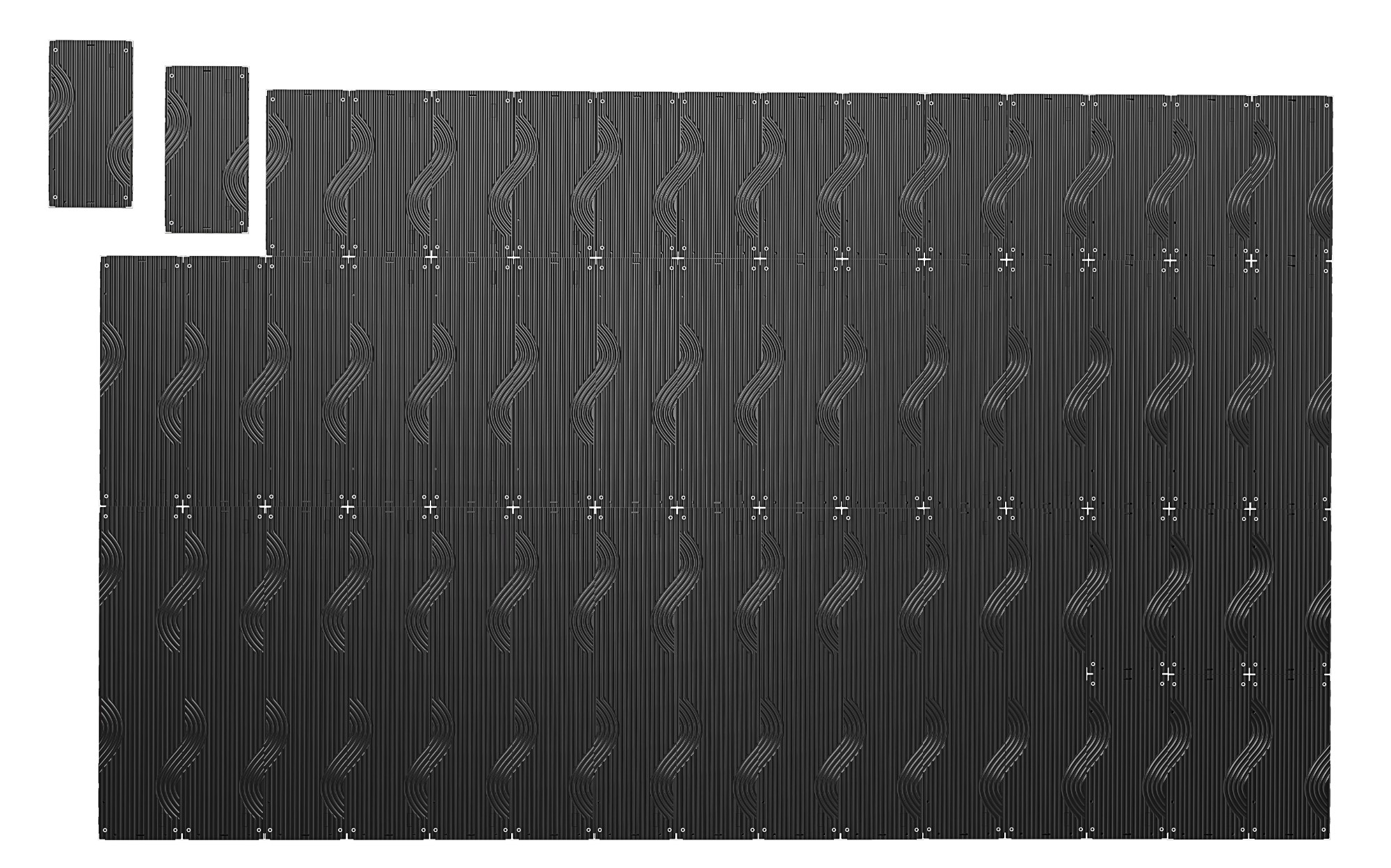

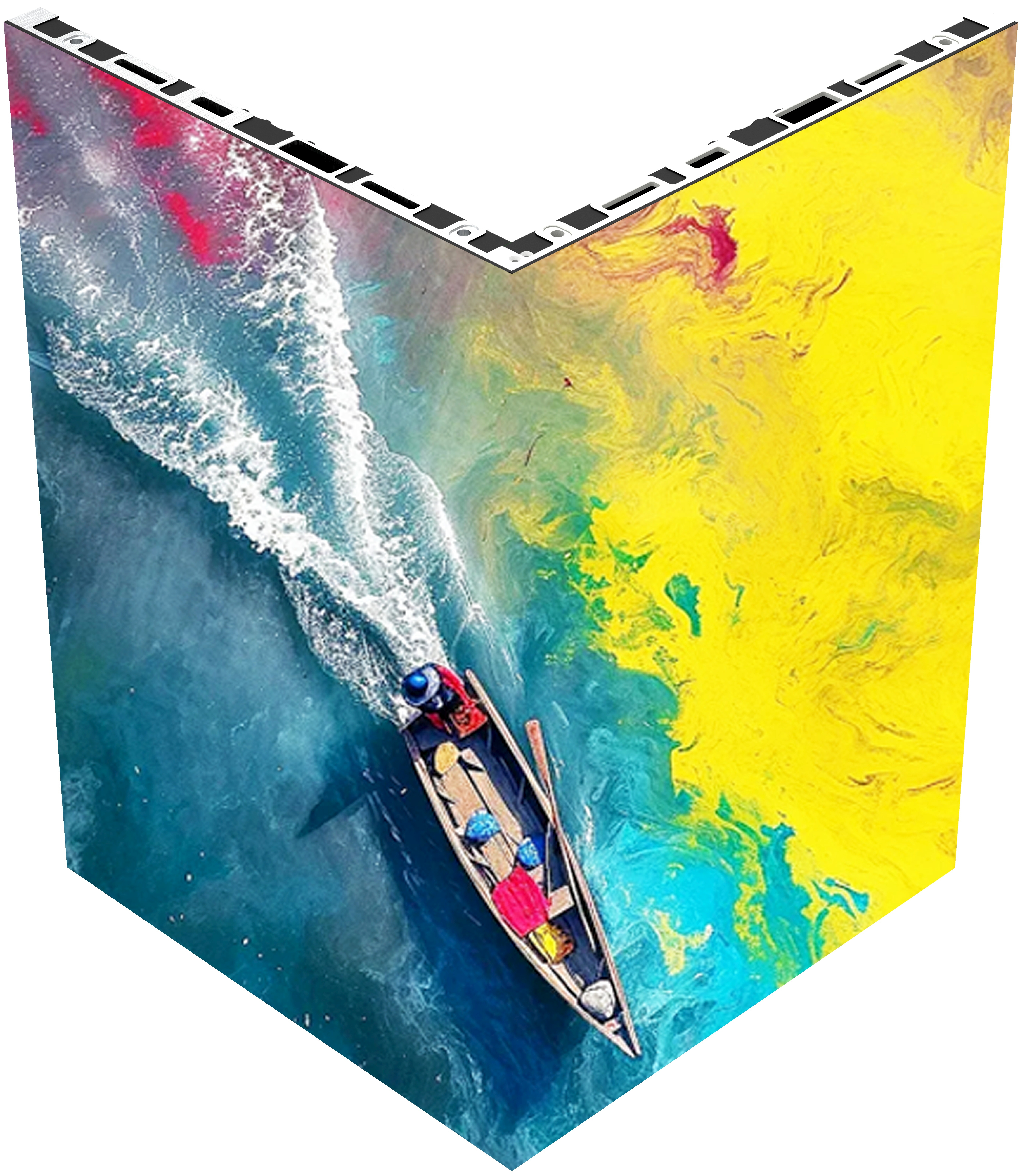

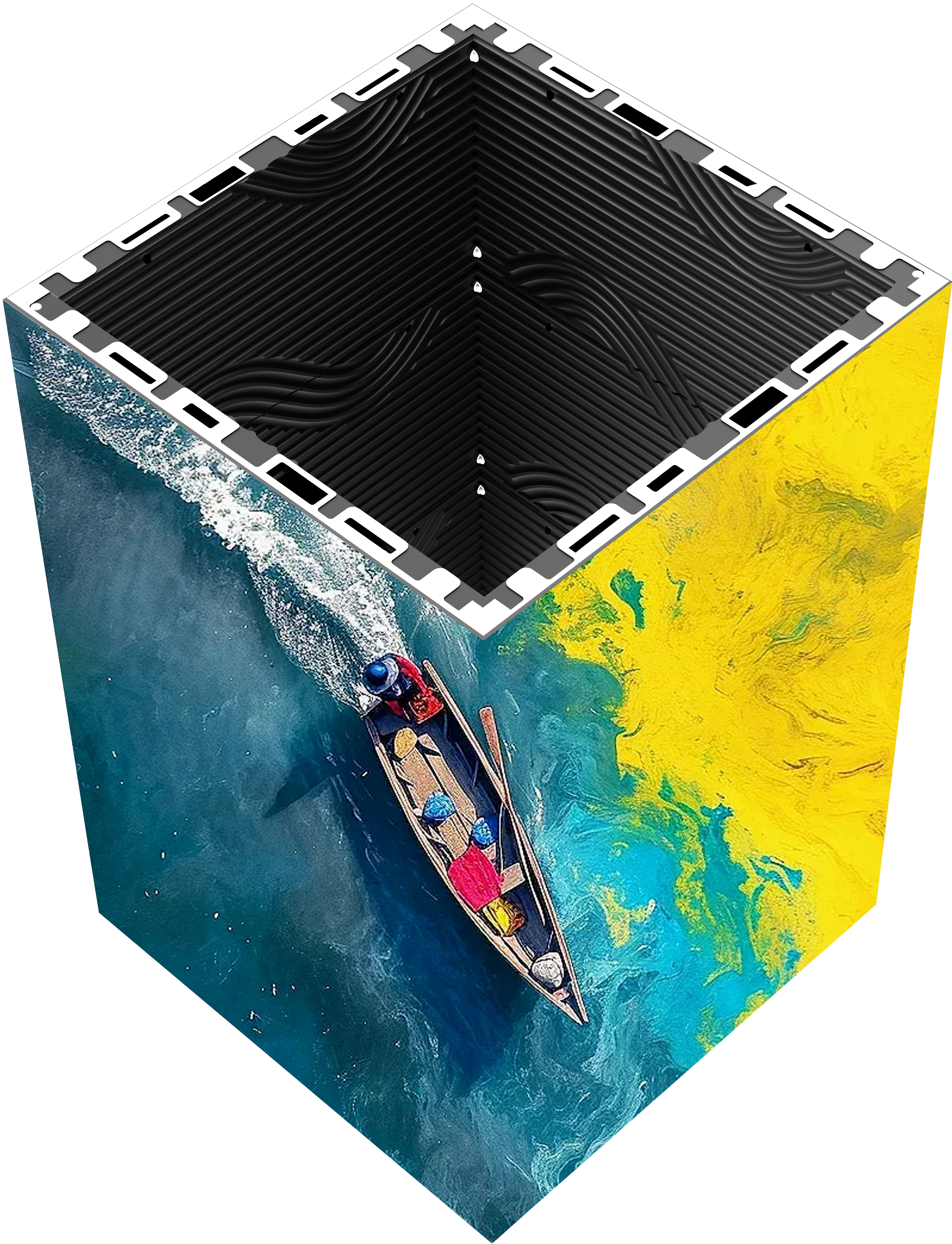

6) High refresh rate, high contrast ratio & high gray

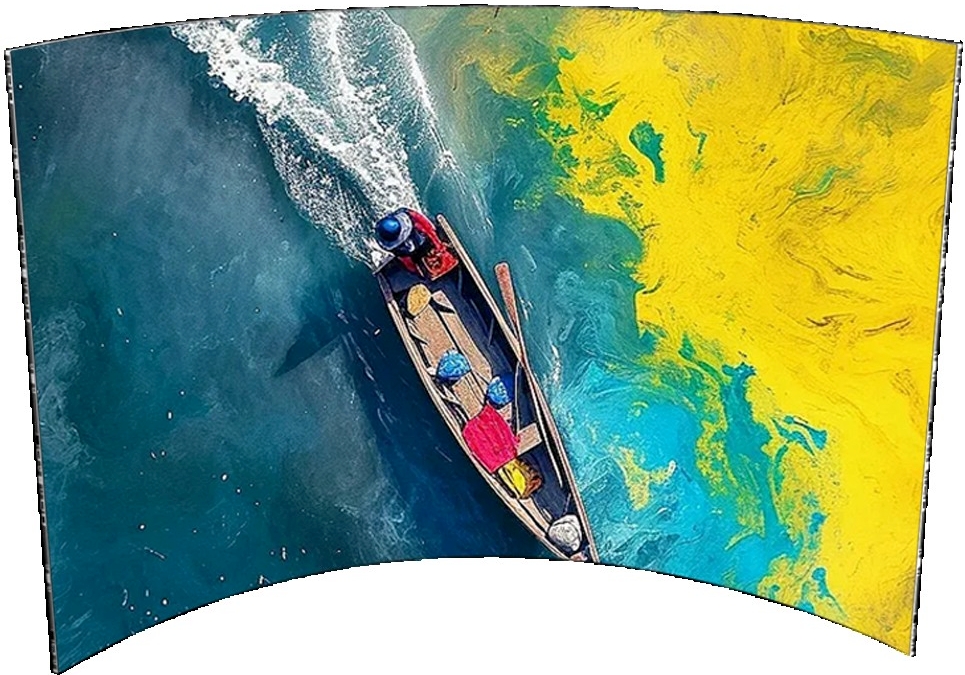

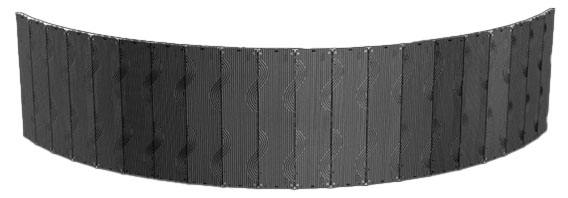

7) Creative Splicing, Infinite Imagination

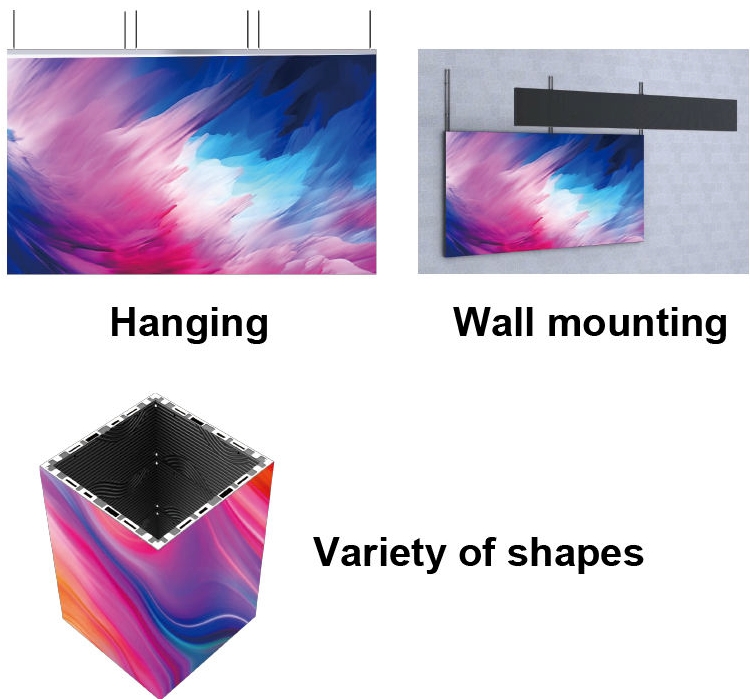

8) Multiple Installation Methods
9) Parameters

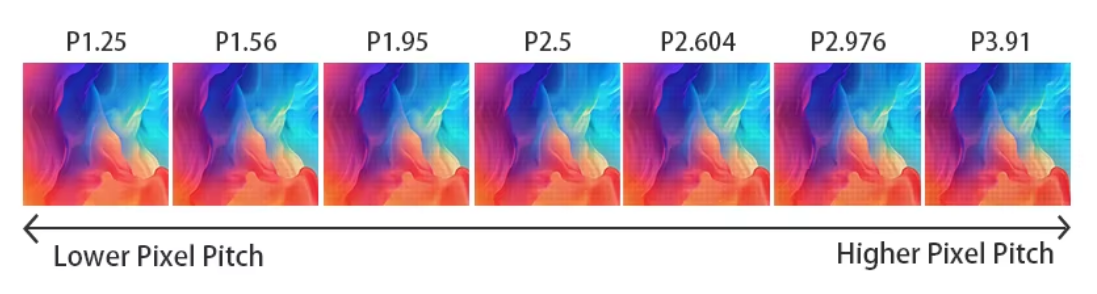

Model
P1.25
P1.56
P1.95
P2.5
P2.604
P2.976
P3.91
Module size (mm)
250X250
Module resolution
200x200
160x160
128x128
100x100
96x96
84x84
64x64
Scanning
1/50S
1/40S
1/32S
1/25S
1/32S
1/28S
1/16S
Cabinet size (mm)
1000 ×500 ×33 / 1000 ×250 ×33 / 750 ×250 ×33 / 500 ×250 ×33
Brightness (cd/㎡)
600
600
800
800
800
800
800
Waterproof grade
IP 31
Grayscale
10000:1
Refresh rate (hz)
3840
Horizontal
viewing angle
160°/160°
Color temperature (K)
5000-12000 (adjustable)
Frame rate
50/60
Temperature range
-20 ~60℃/10% ~85%
Lifespan (H)
≥100,000
Applicable standards
CCC/CE/RoHS/FCC/CB/TUV/IEC
