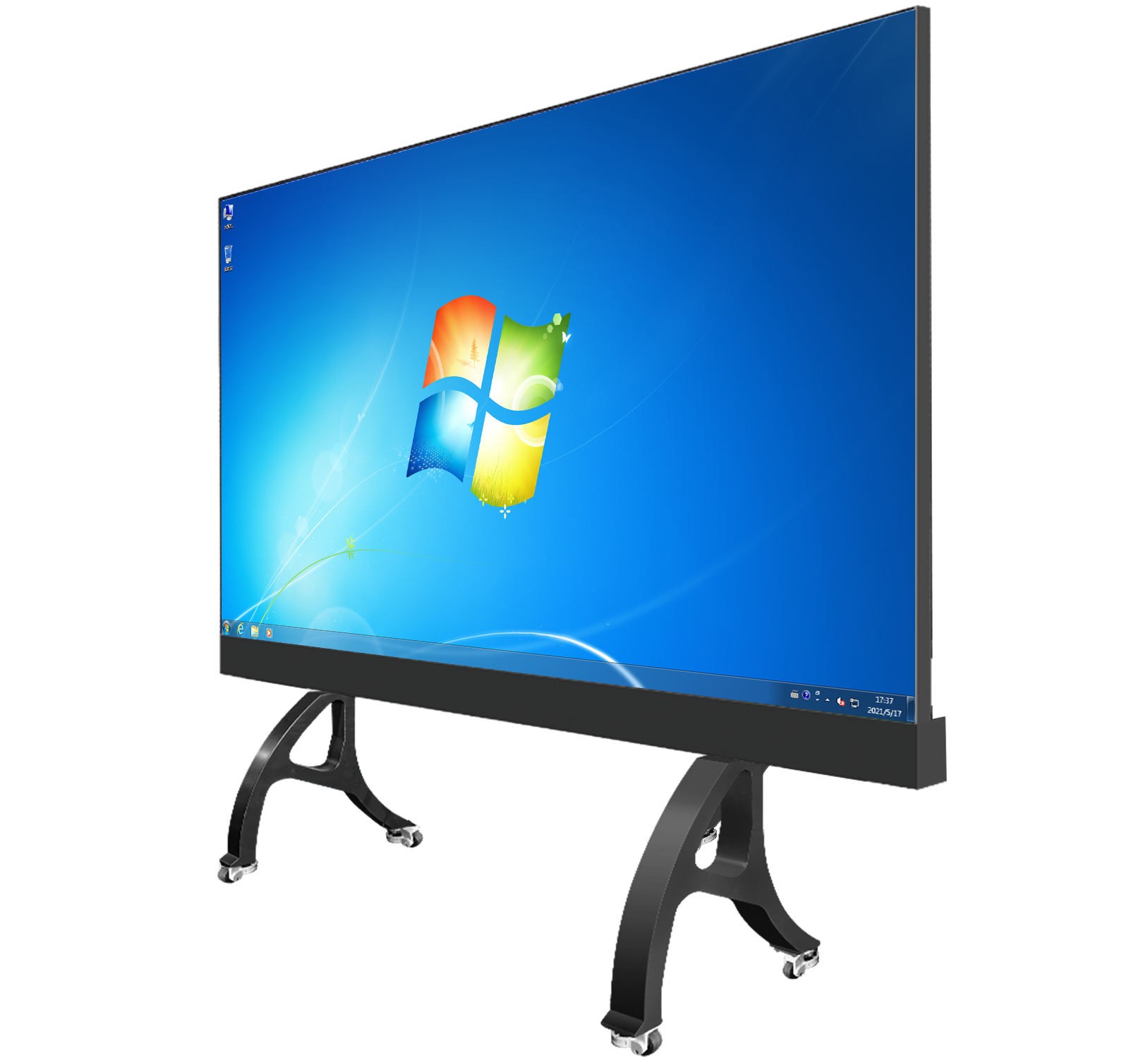

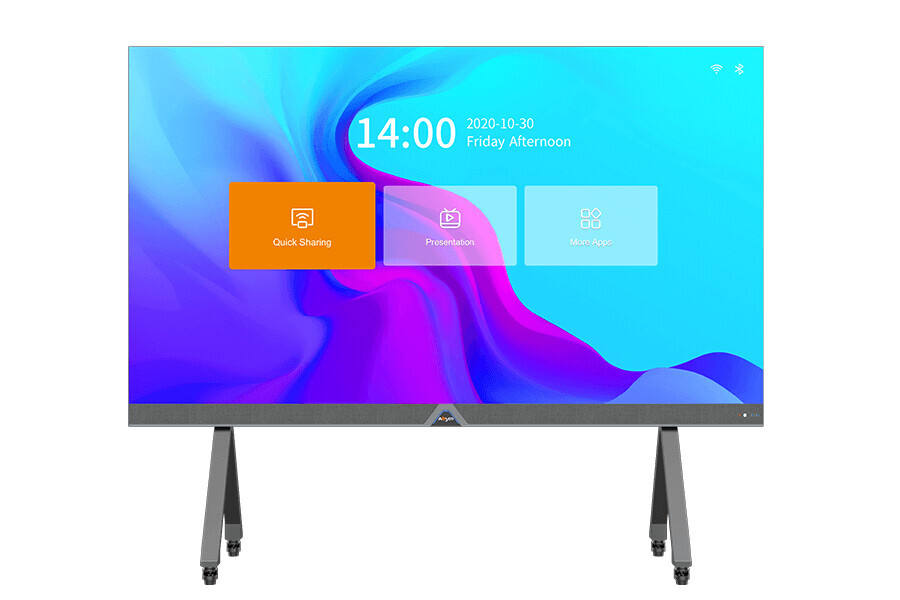

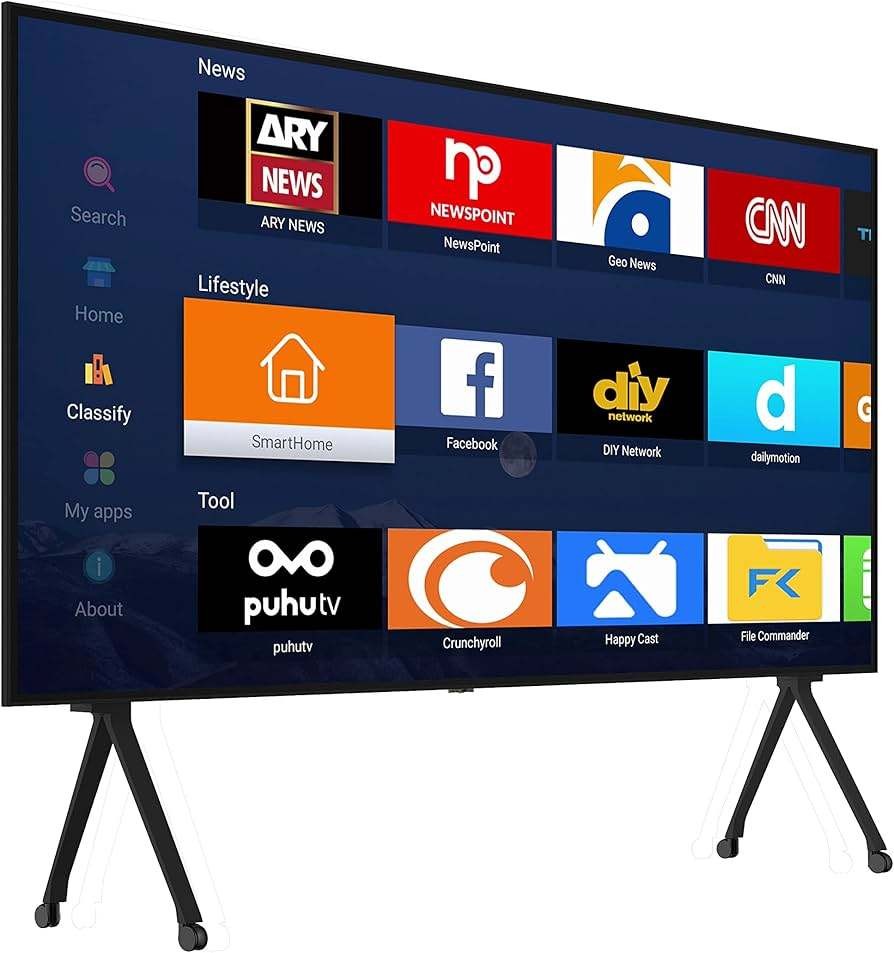

CONWIN Interactive All-in-one Led TV Conference Room
Feature Description
- UHD full HD, intelligent brightness
- The interface is simple and easy to operate, and the installation is simple and easy to use.
- One-button start, wireless screen projection, USB plug and play;
- Simple and generous appearance, rich external interfaces
- Die-cast aluminum design, seamless border less
All-in-One LED Displays offer larger-than-life images of up to 216” and all-in-one integration for easy installation, operation,
and maintenance. With options in wall-mounted and mobile series, the elegant design elevates the viewing experience, seamlessly
blending into environments like lobbies, public spaces, auditoriums, and conference rooms. Among the series, the fold able 135”
All-in-One COB LED display provides exceptional flexibility. Its assembled design and fold able screen on a movable stand enable
effortless transportation across multiple venues, making it an ideal choice for hospitality and event/rental businesses.

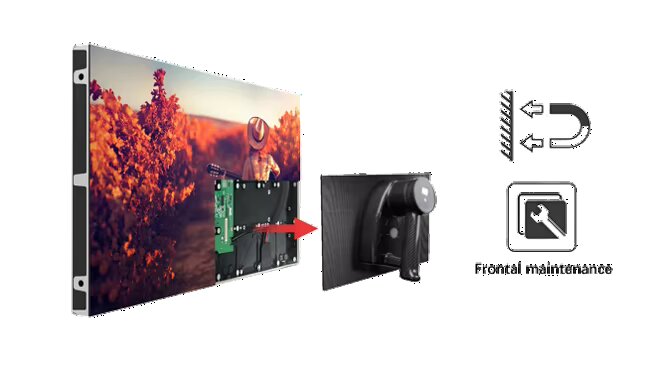

Fully Front Access – 135” LED All-in-One Display
Easy to Install and maintain
Hard pin connection for higher stability
The display screen should have a modular design, allowing for easy maintenance and
repair, and enabling the addition or replacement of modules as needed
Low power consumption: 450W sqm maximum and 135W/sqm on average
For example: the 135 inches all-in-one screen has 2279 W maximum and 684 W on average
reducing power consumption without sacrificing image quality. This results in lower energy
costs and a reduced carbon footprint.

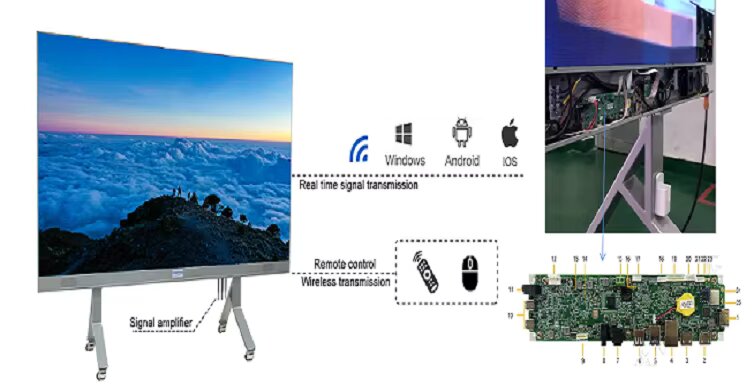

Novastar meeting card MEE210 – 138” LED All-in-one Display
Support for turning on and off according to a schedule, implemented by internal settings
Support 3HDMI port
Sopprt remote control by software
Inside build-in speaker 5W/10W/15W etc

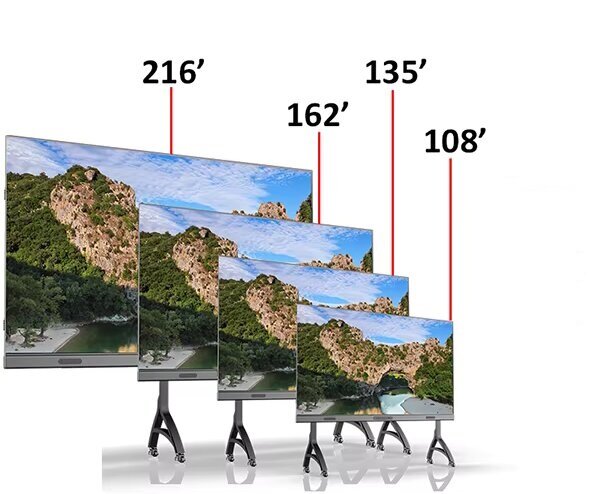

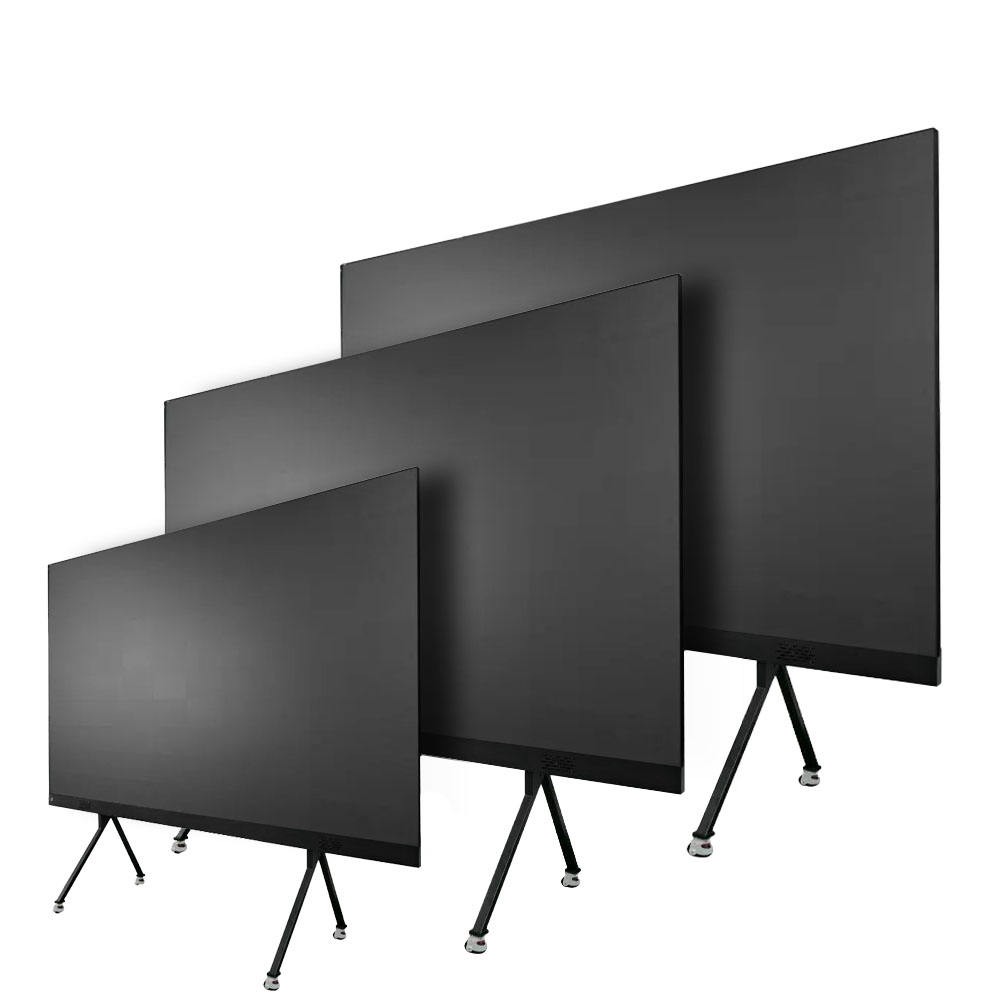

4 sizes are available, can meet demands of different meeting room
Specifications
LED TV Size
108’’(2K)
136’’(2K)
163’’(2K)
163’’(4K)
Model
MI-TV1.2
MI-TV1.5
MI-TV1.8
MI-TV0.9
LED type
SMD1010/COB
SMD1010/COB
SMD1010//1515/COB
Mini4 in 1/COB
Physical density(dot/sqm)
640000
409600
284444
1137778
Pixel Pitch
P1.25mm
P1.56mm
P1.875mm
P0.9375mm
Dimensions
2430X1475mm
3030X1812.5mm
3630X2150mm
3630X2150mm
Including base
2430X2165mm
3030X2502.5mm
3630X2840mm
3630X2840mm
Refresh rate (hz)
3840hz
3840hz
3840hz
3840hz
Resolution
1920X1080
1920X1080
1920X1080
3840X2160
Control
HDMI×3(2 in and 1 out),USB3.0, USB2.0×2, RF, RJ45, USB-B, WiFi,Bluetooth , infrared remote control
Audio
Built in 2 × 5W speaker with external Audio interface
Installation and
service type
Mobile base (standard)/wall mounted (optional)/front maintenance
Power input
AC90-264V,47-63Hz
Working temperature
/humidity(℃/RH)
-20~60℃/10%~85%
Storage temperature
/humidity(℃/RH)
-20~60℃/10%~85%
