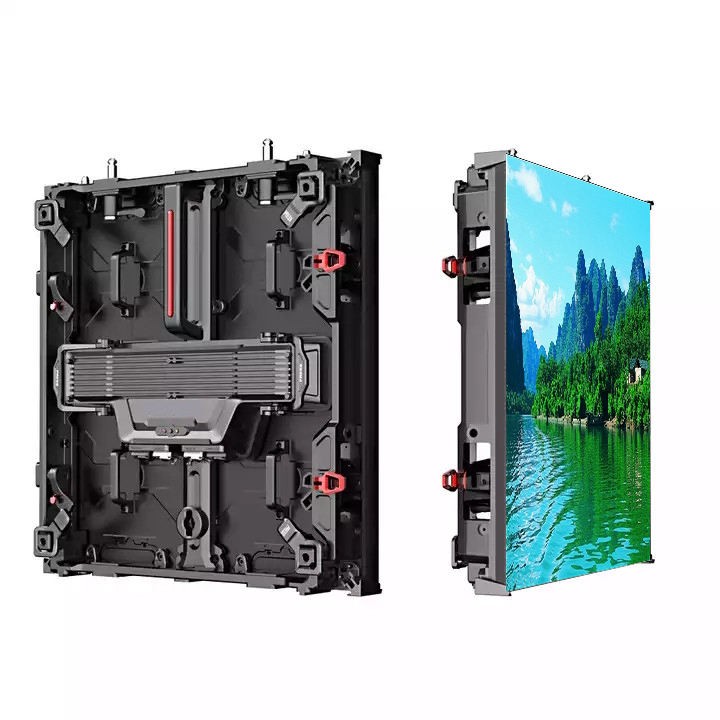

CONWIN Outdoor High-quality Rental Display Screen

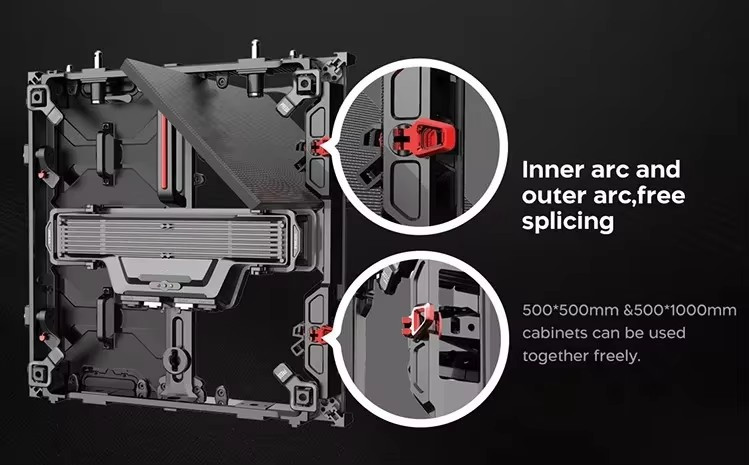

Inner and outer arc, free splicing

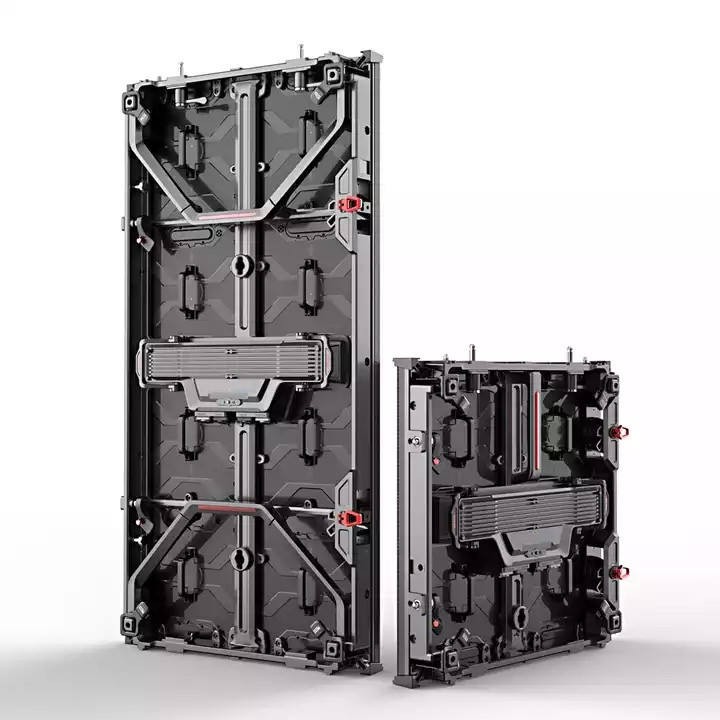

500x500mm and 500x1000mm cabinets can be used together freely

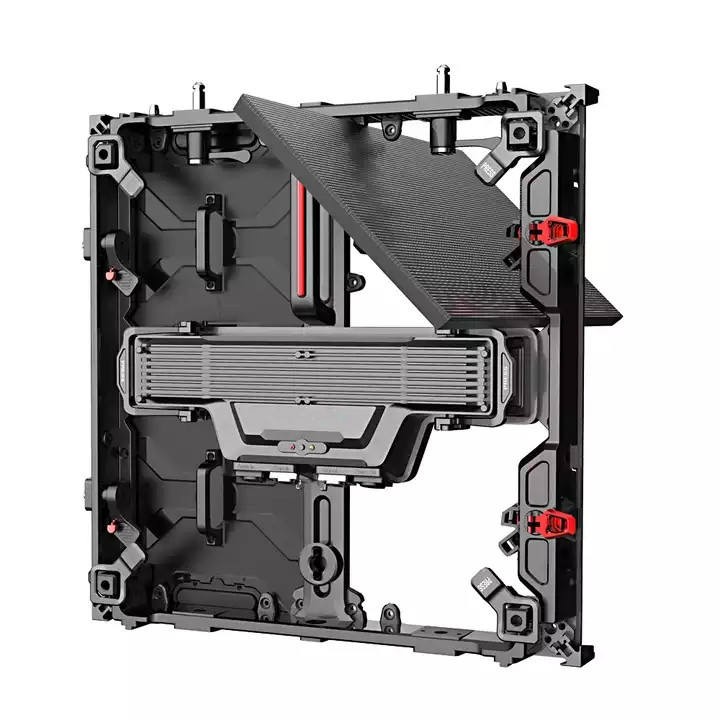

Easy Disassembly & Assembly
Screw less fixing for modules and control box.Installing/uninstalling from front or back, Only with 3seconds

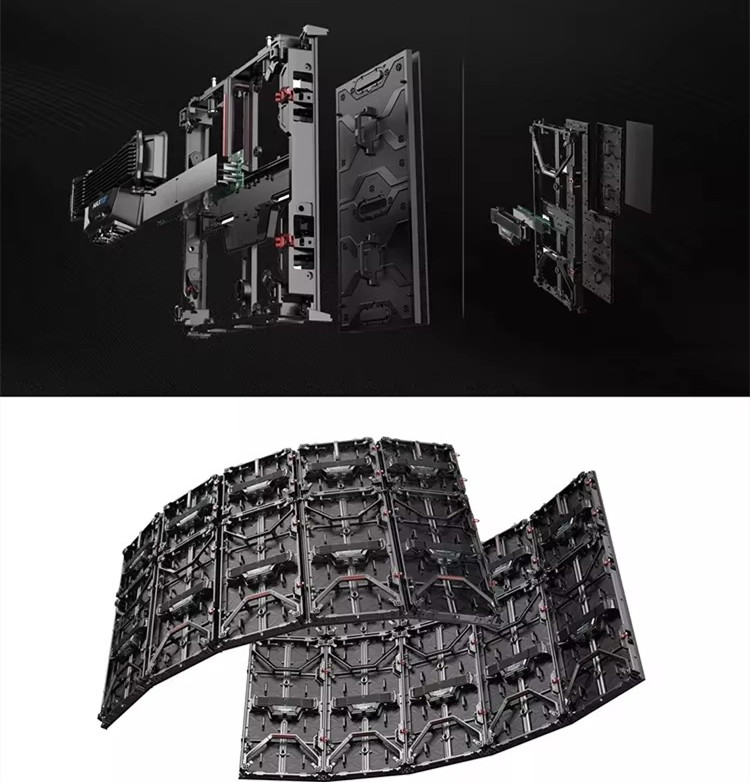

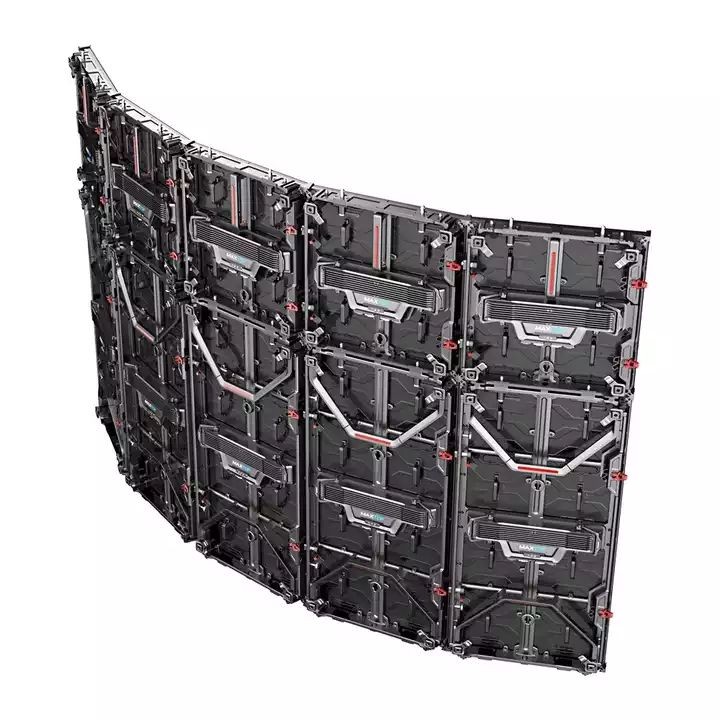

+10° curved cabinet
Curved cabinet with inner and outer arc 0°,±2.5°,±5°,±7.5°,±10

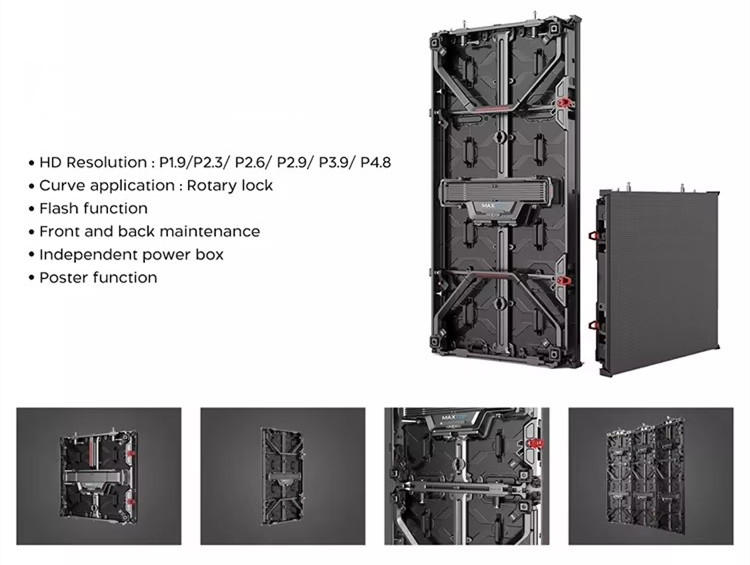

Front and Rear Maintenance
Front maintenance design allows technicians to perform maintenance directly from the front of the screen,
without needing to dismantle the rear structure, making it more convenient.

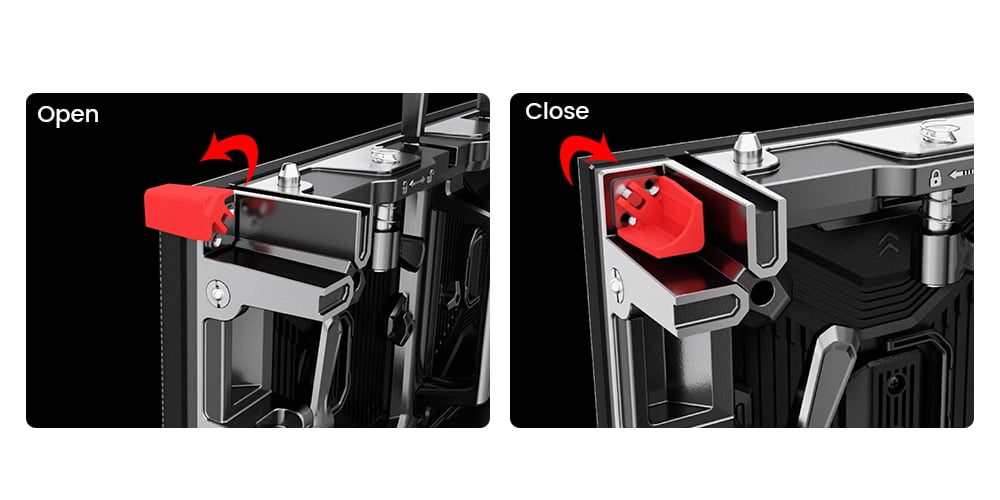

Anti-collision design
Rental LED display is designed with four corner guards to effectively prevent damage to the LED during transportation, installation, operation and disassembly
Specification
|
Model |
P2.604 |
P2.976 |
P3.91 |
P4.81 |
|
Pixel Pitch(mm) |
2.604 |
2.976 |
3.91 |
4.81 |
|
LED Encapsulation |
SMD1515 |
SMD1515 |
SMD2020 |
SMD2020 |
|
|
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
|
Module Resolution(pixels) |
96x96 |
84x84 |
64x64 |
52x52 |
|
Module Size(mm) |
250x250 |
250x250 |
250x250 |
250x250 |
|
Panel Resolution(pixels) |
192x192 |
168x168 |
128x128 |
104x104 |
|
|
192x384 |
168x336 |
128x256 |
104x208 |
|
Panel Size(mm) |
500x500x80 |
500x500x80 |
500x500x80 |
500x500x80 |
|
|
500x1000x80 |
500x1000x80 |
500x1000x80 |
500x1000x80 |
|
Weight(kg/pcs) |
7.5/14 |
7.5/14 |
7.5/14 |
7.5/14 |
|
Physical Density (Pixels/nf) |
147456 |
112896 |
65536 |
43264 |
|
Optimum Viewing Angle |
H:160° V:160° |
H:160° V:160° |
H:160° V:160° |
H:160° V:160° |
|
Option Distance(m) |
>3 |
>3 |
>4 |
>5 |
|
Input Voltage |
110-220VAC±10% |
110-220VAC±10% |
110-220VAC±10% |
110-220VAC±10% |
|
Max. Power Consumption(w/m2) |
500-720 |
500-720 |
500-720 |
500-720 |
|
AVE. Power Consumption(w/m2) |
250-360 |
250-360 |
250-360 |
250-360 |
|
Brightness(cd/m2) |
1000 INDOOR |
1000 INDOOR |
800 INDOOR |
800 INDOOR |
|
|
5000 OUTDOOR |
5000 OUTDOOR |
4500 OUTDOOR |
5000 OUTDOOR |
|
Refresh Frequency (Hz) |
>1920-3840 |
>1920-3840 |
>1920-3840 |
>1920-3840 |
|
Frame Frequency(Hz) |
50-60 |
50-60 |
50-60 |
50-60 |
|
Grayscale (bit) |
14-16 |
|||
|
Operating Temperature/Humidity(°C/RH) |
-10°C-40°C/ 10-80%RH |
|||
