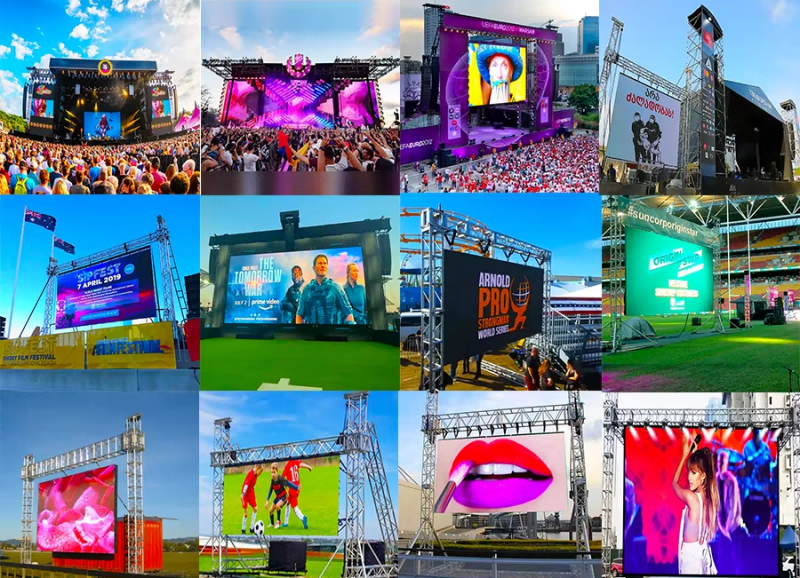

CONWIN Indoor and Outdoor Rental LED Screens for Events

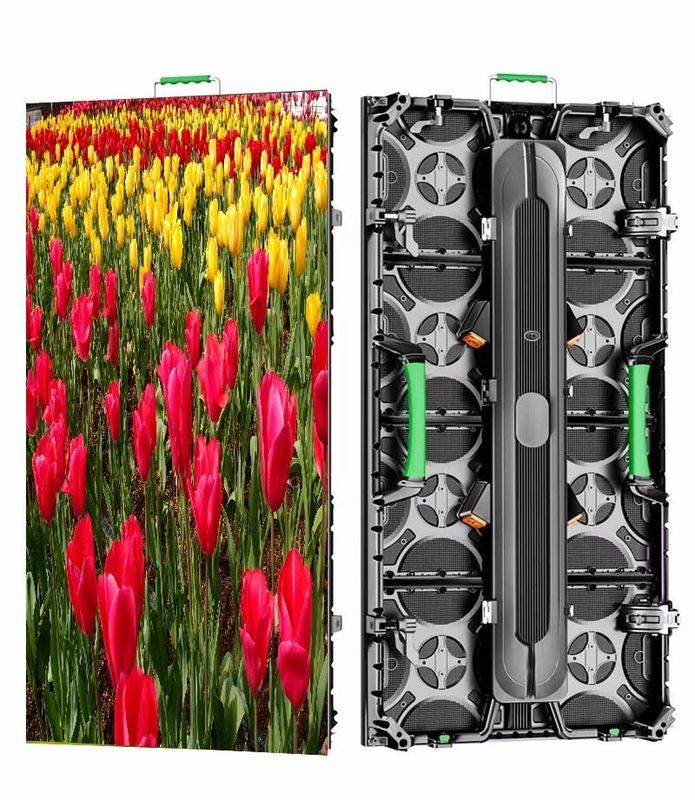

- Die Casting Aluminum 500x500/1000mm Cabinet. Unique design, quick and clean look
- Adjustable Angle Lock, Flexible Stage Design, Arc-shaped connection available, with angle adjustment device, concave and convex 15 degrees of adjustment as you wish for different stage.

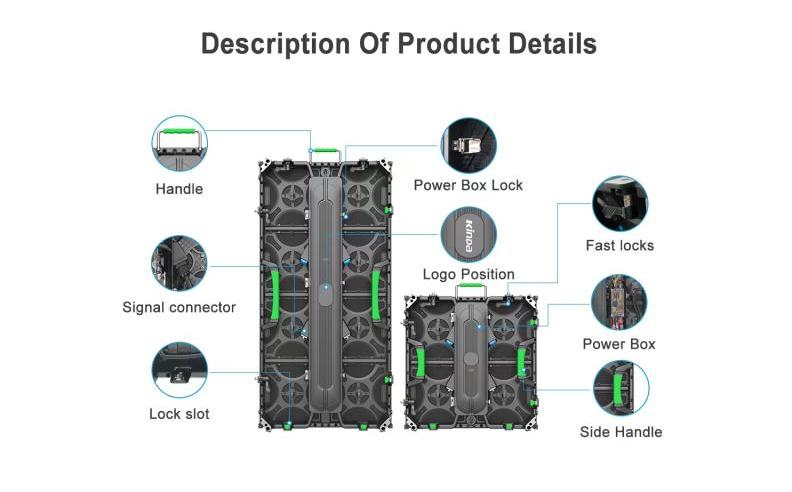

- Front Maintenance Magnetic Module, Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.
- Light Weight Cabinet Design, One Man Operation, Weight only 7.5kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.

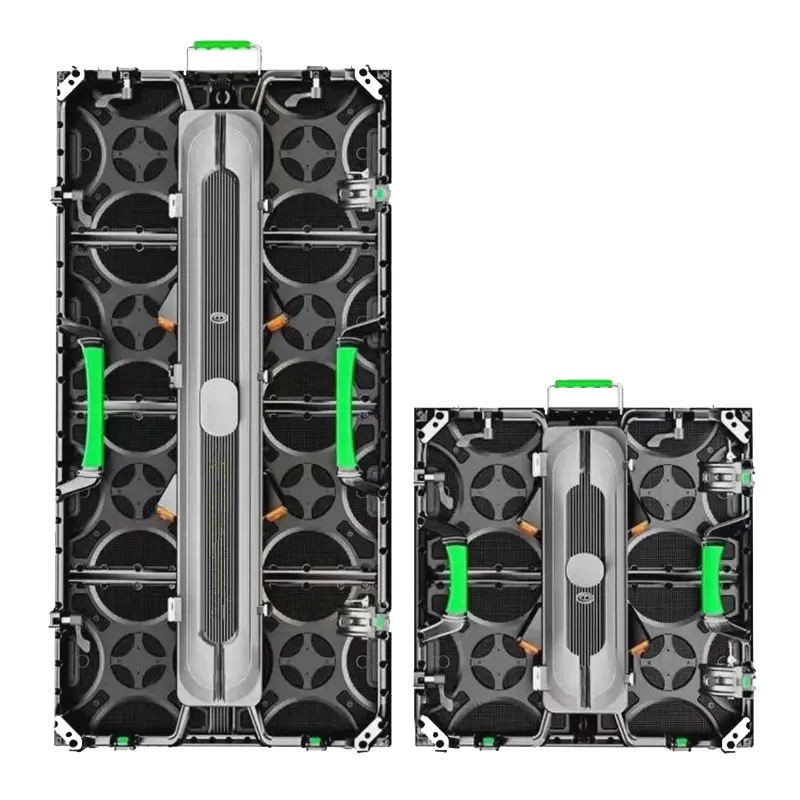

Cabinet Specs

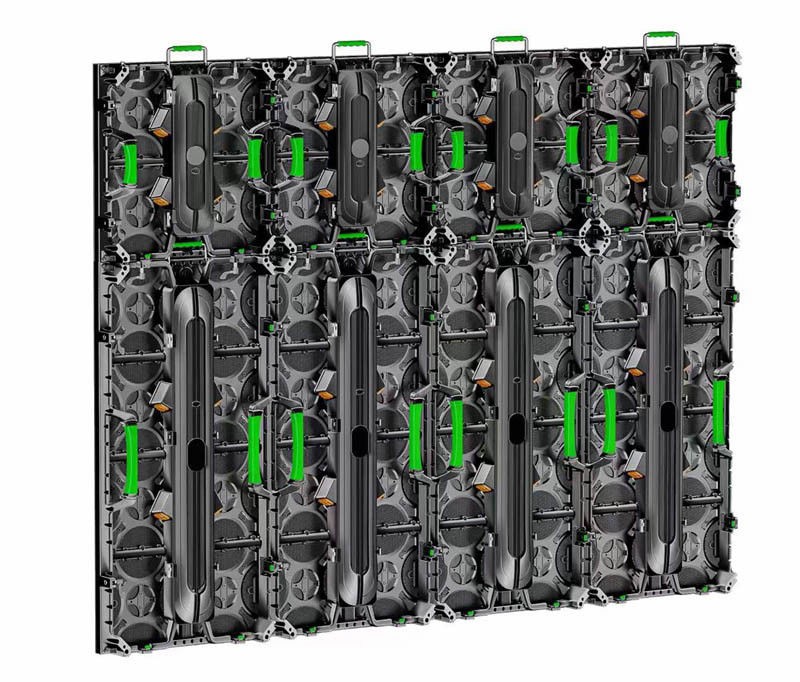

Each cabinet (include all components) is only 7.5 kg, 500mmX500/1000mm cabinets are available, four sets strong fast lock to make assembling to be easier.

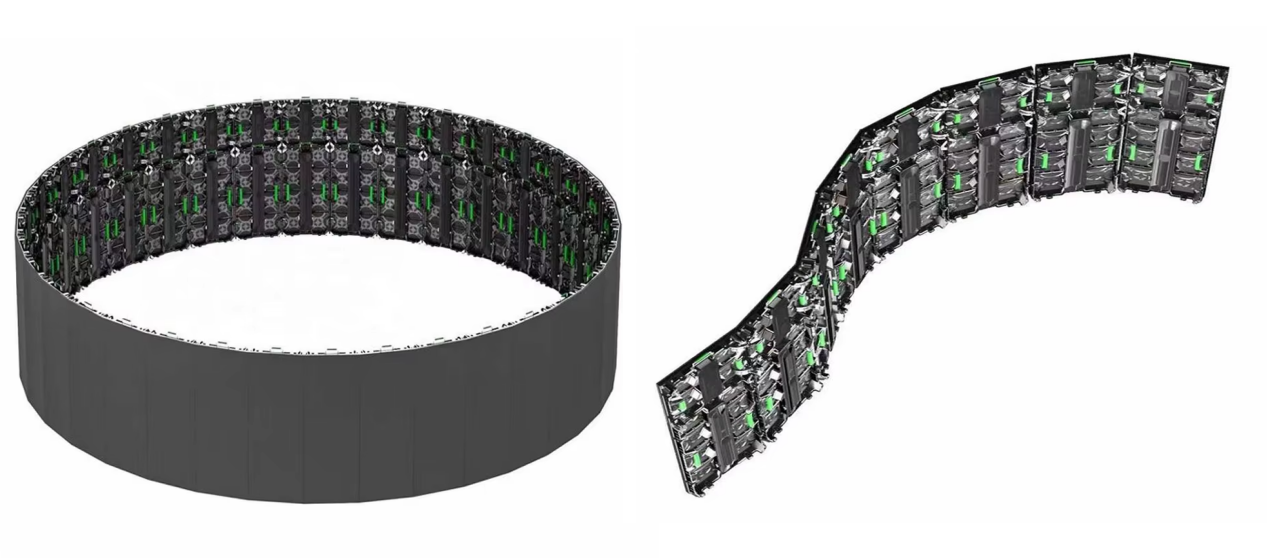

Creative combination
Allows to make curve video wall Inner outer arcs 15°,0°,-15° adjustable,right angle combination and other creative combinations
Specifications
Model
P2.604
P2.976
P3.91
P4.81
Module size(mm)
250x250
250×250
250×250
250×250
Module resolution (dot)
96x96
84×84
64×64
52×52
Scanning
1/32S
1/28S
1/16S
1/13S
SMD
SMD1515
SMD1515
SMD2121
SMD2121
Maintenance
Front/Back
Front/Back
Front/Back
Front/Back
Installation
Hanging/streching
Hanging/streching
Hanging/streching
Hanging/streching
Cabinet size(mm)
500x500/500x1000mm
500×500/500×1000
500×500/500×1000
500×500/500×1000
Density(dot/m²)
147456
112896
65536
43264
Brightness(cd/m²)
≥600
800-1200/4500-6500
800-1200/4500-6500
800-1200/4500-6500
Max. Power Consumption（w）
800
800
800
800
Ave Power Consumption（w）
400
400
400
400
Cabinet weight (kg)
6.5/12.5
6.5/12.5
6.5/12.5
6.5/12.5
Cabinet material
Die-casting aluminum
Die-casting aluminum
Die-casting aluminum
Die-casting aluminum
IP rate
IP31
IP31/IP65
IP31/IP65
IP31/IP65
Grayscale
10000:1
10000:1
10000:1
10000:1
Refresh rate(hz)
1920-3840
1920-3840
1920-3840
1920-3840
Frame change frequency
50/60hz
50/60hz
50/60hz
50/60hz
Horizontal viewing angle
>140°
>140°
>140°
>140°
Vertical viewing angle
>140°
>140°
>140°
>140°
Best viewing distance
>3m
>3m
>4m
>5m
Input Voltage
AC110V - AC220V
AC110V – AC220V
AC110V – AC220V
AC110V – AC220V
Module Max. current
5.0-7.0
5.0-7.0
6.0-7.5
5.5-7.0
Temperature-operating
﹣10℃～60℃
﹣10℃～60℃
﹣10℃～60℃
﹣10℃～60℃
Humidity-operating
10%～90%
10%～90%
10%～90%
10%～90%
Life span (H)
≥100,000
≥100,000
≥100,000
≥100,000
MTBF (H)
>10,000
>10,000
>10,000
>10,000
