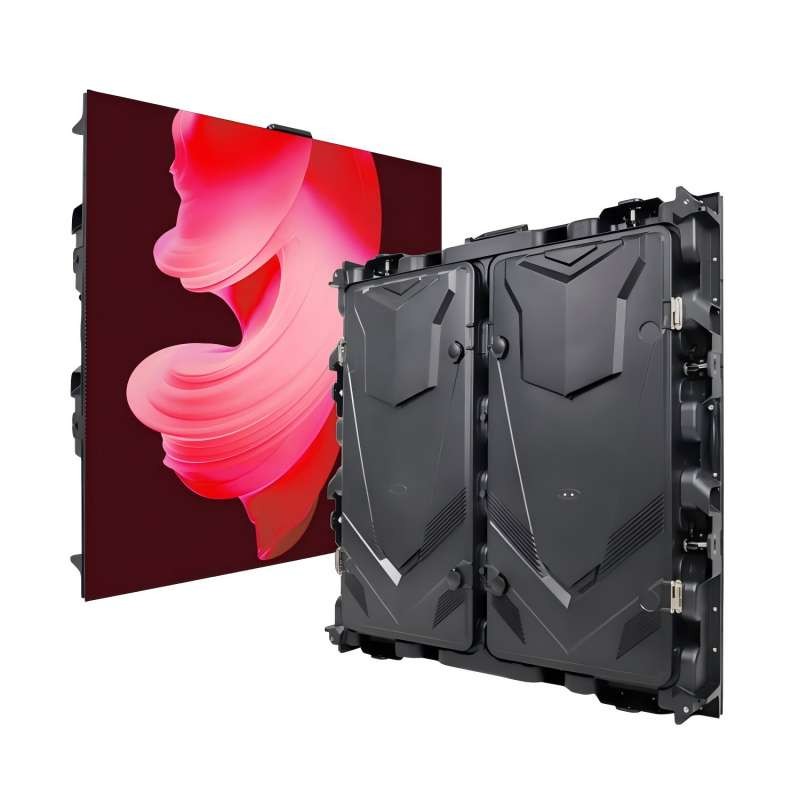

M Series Outdoor LED Display

Product Item : M5
Category： Outdoor LED Display
outdoor fixed installation
outdoor aluminum cabinet
sports led screen
waterproof led screen
Product description：High-impact aluminum LED billboards for outdoor advertising. Boost your brand visibility with our durable, weather-resistant screens.
INQUIRY EMAIL

CONWIN Fixed Outdoor LED Advertising LED Screen 960mm*960 mm

Feature Description:

-Waterproof: fully waterproof modules and waterproof class to IP65.

-High brightness: brightness up to 5500 nits, the brightness is adjustable according to outdoor environment.
-High definition and high resolution: adopts high gray-scale design, the high refresh rate ensures that the video and photos have no pattern phenomenon.
-Full color and Viewing large: the angle of view is large(140°-160°), the color is good,ensuring the tine effect of the painting quality.
-The lightweight, quick-install design requires no large tools, significantly reducing setup and removal time and saving labor costs.

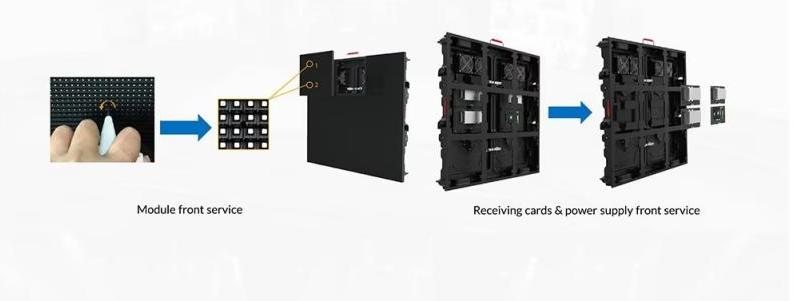

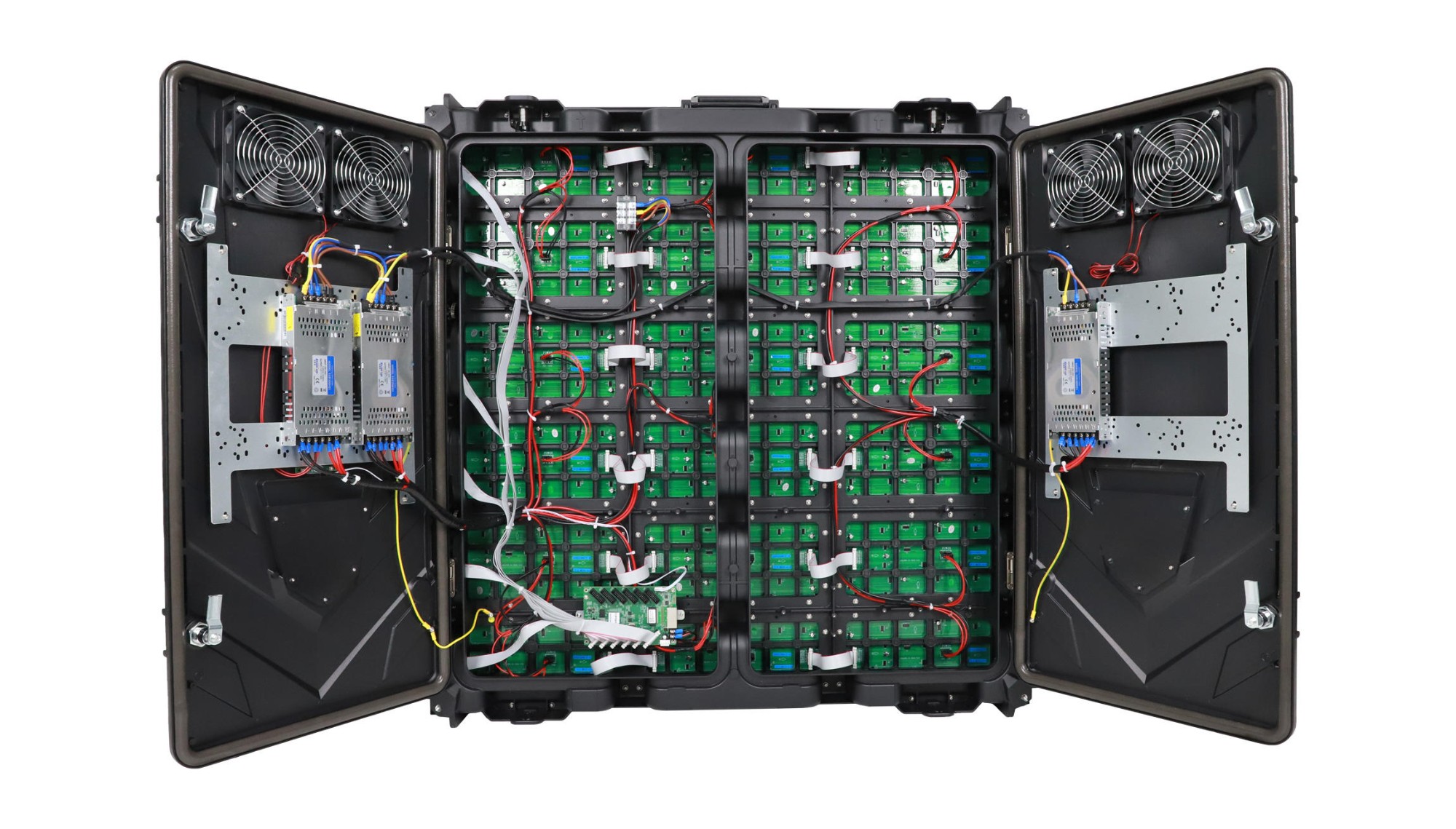

Completely Front Service
Module, power supply and receiving cards can be taken out from the front,maintenance easy and friendly

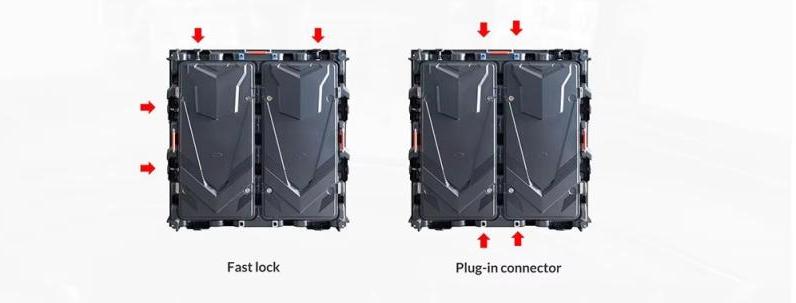

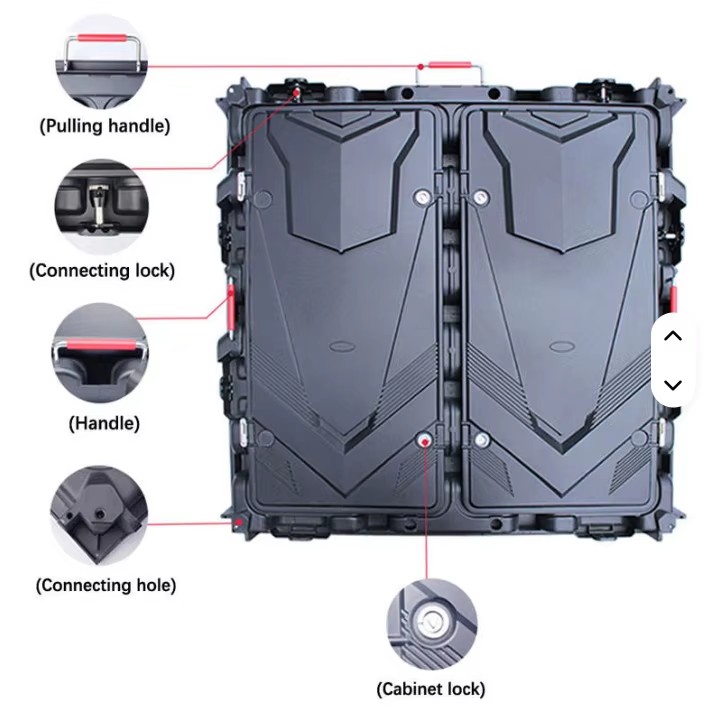

Quick installation
Dual fast lock design for fast assembly Plug-in connector design: safer & fast connection than terminals

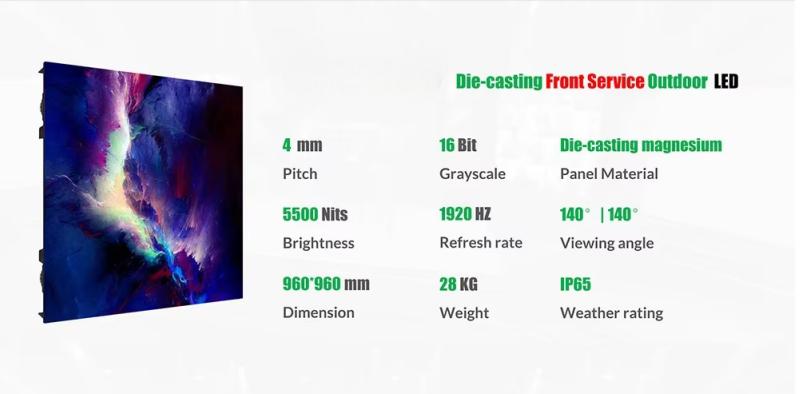

Specifications

Pixel Pitch (mm)	P2.5	P3.076	P4	P5	P6.67	P8
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921	SMD3535	SMD3535
Density (Pixels/㎡)	160,000	105,625	62,500	40,000	22,500	15,625
Module Resolution (Pixel)	128x64	104x52	80x40	64x32	48x24	40x20
Module Size (mm)	320x160	320x160	320x160	320x160	320x160	320x160
Driving Mode (Duty)	1/16	1/13	1/10	1/8	1/6	1/5
Cabinet Size (mm)	960x960	960x960	960x960	960x960	960x960	960x960
Cabinet Weight (KG)	29	29	29	29	29	29
Brightness (CD/㎡)	5,000	5,000	5,500	5,500	6,000	5,500
Viewing Angle (°)	140	140	140	140	140	140
Gray Grade (Bits)	14	14	14	14	14	14
Max. Power Cons (w/㎡)	690	786	909	836	892	600
Avg. Power Cons (w/㎡)	230	262	303	280	298	200
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	3840	1920 / 3840	1920 / 3840	1920 / 3840	1920 / 3840	1920 / 3840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000	100,000	100,000
Protection Grade	IP65	IP65	IP65	IP65	IP65	IP65
