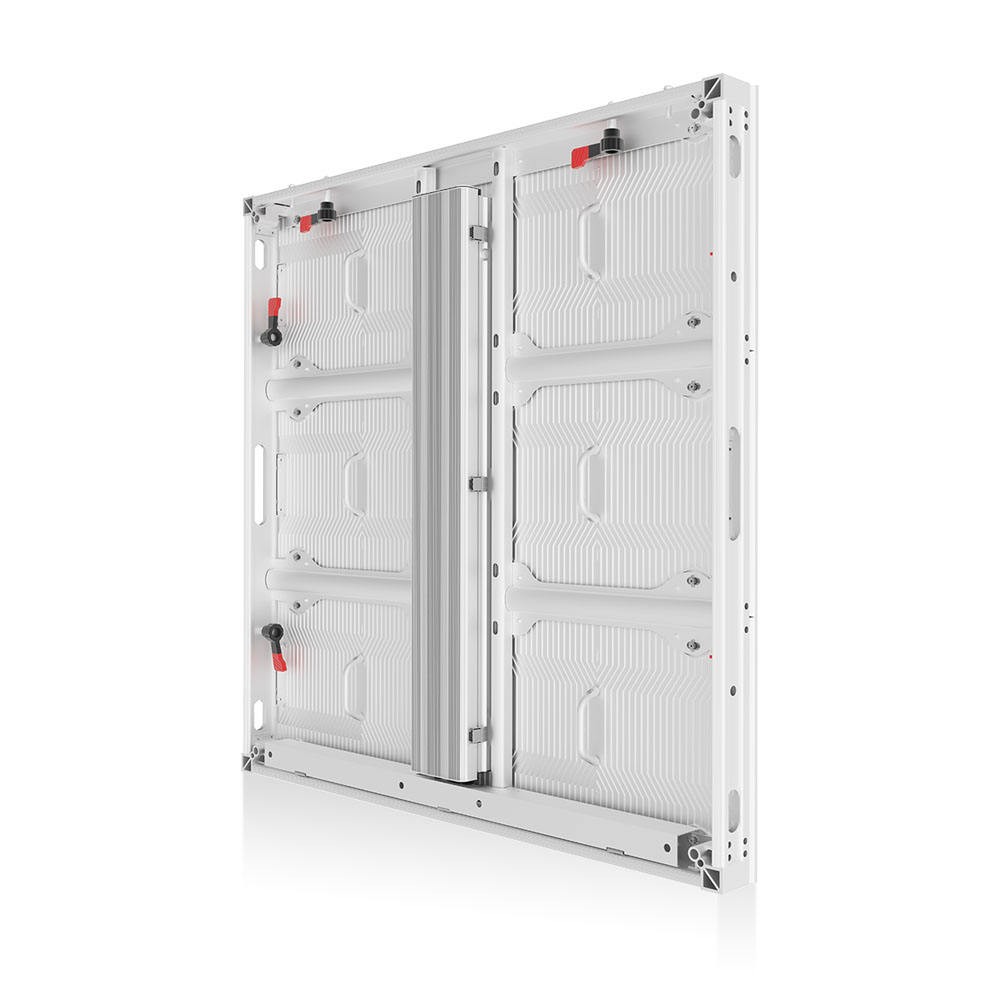

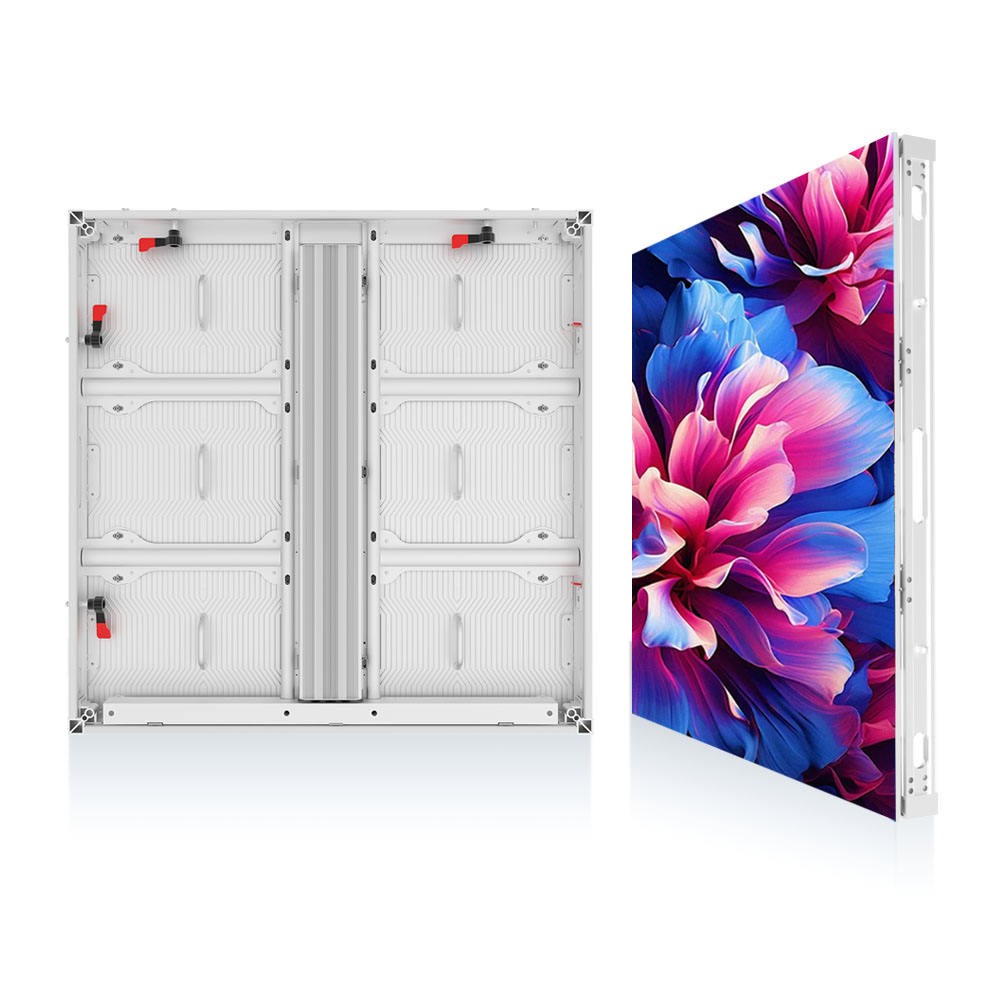

Outdoor Aluminum LED Billboard Screen | Waterproof
Features:

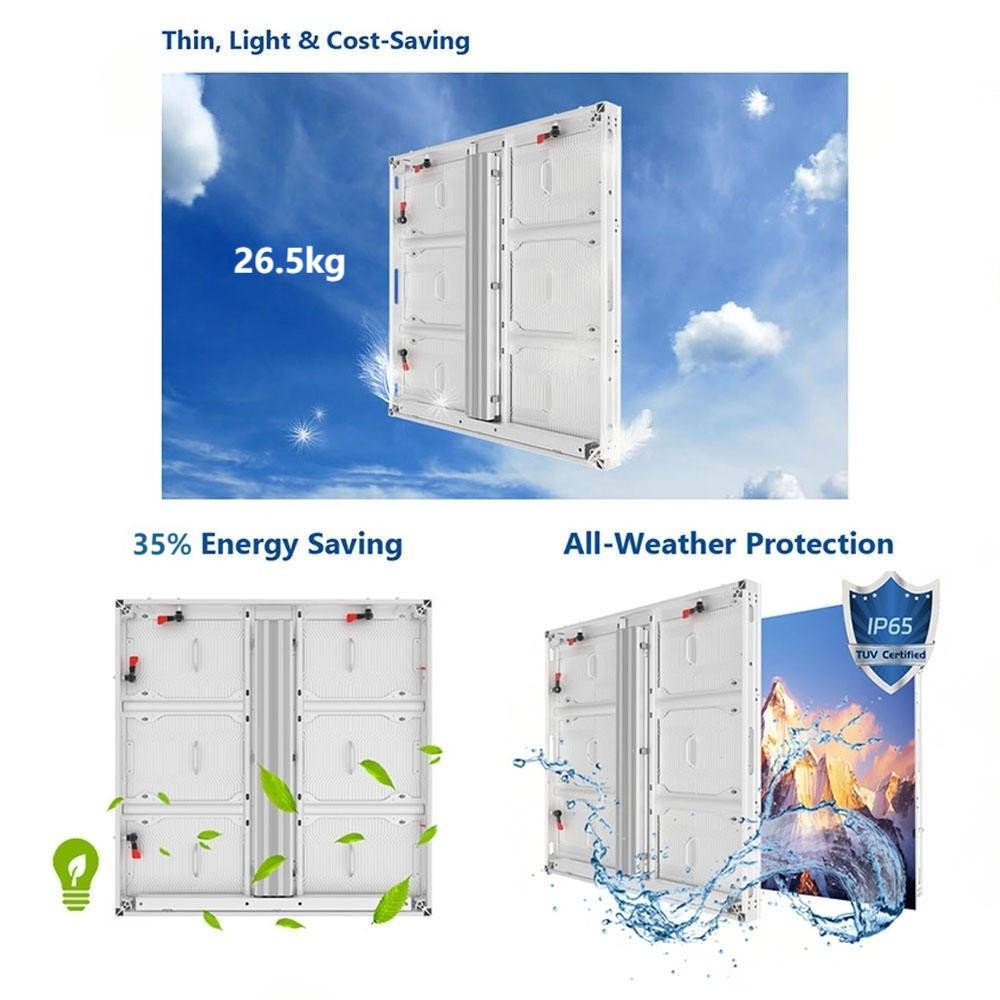

Light & thin to save cost on structure and transportation.
Sunlight Readable: Ensures visibility in bright outdoor conditions.
Weatherproof: IP65 rating for durability in outdoor environments.
Compact Design: 960 x 960mm dimensions for easy installation.
Power Efficiency: 180 W/m², low power consumption.
Flexible installation: right angle, round corner, hanging, wall mounted, stacking.

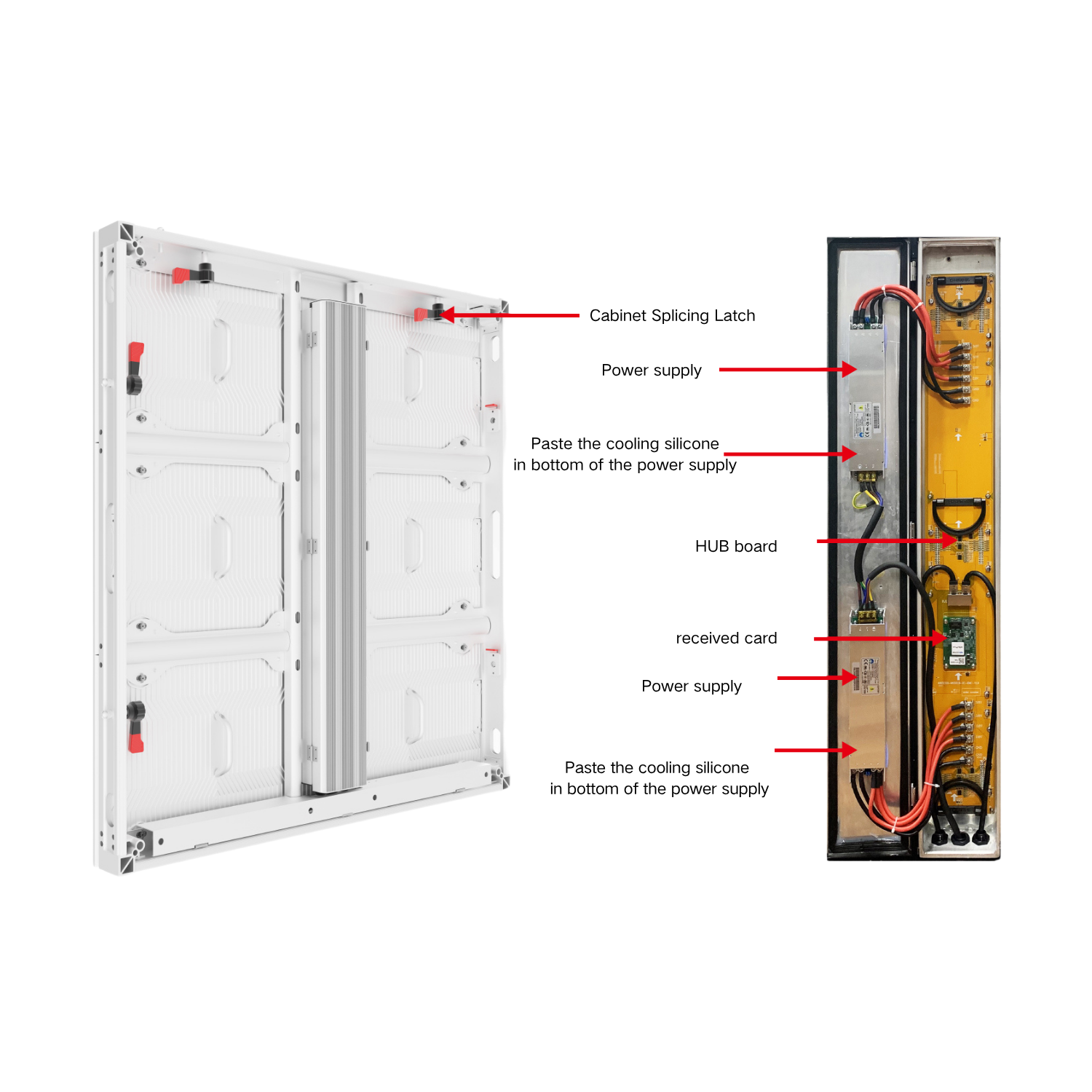

Cabinet diagram

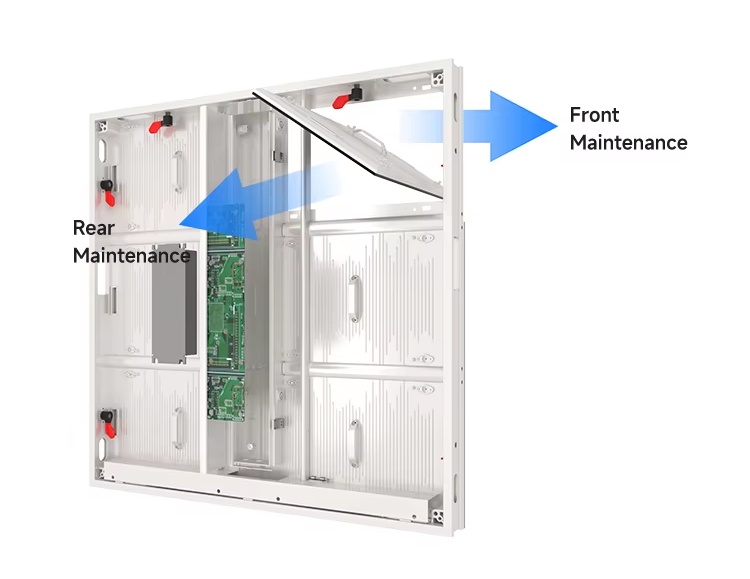

Front maintenance design enables easy service access from the front—no rear space required. Ideal for wall-mounted or enclosed installations

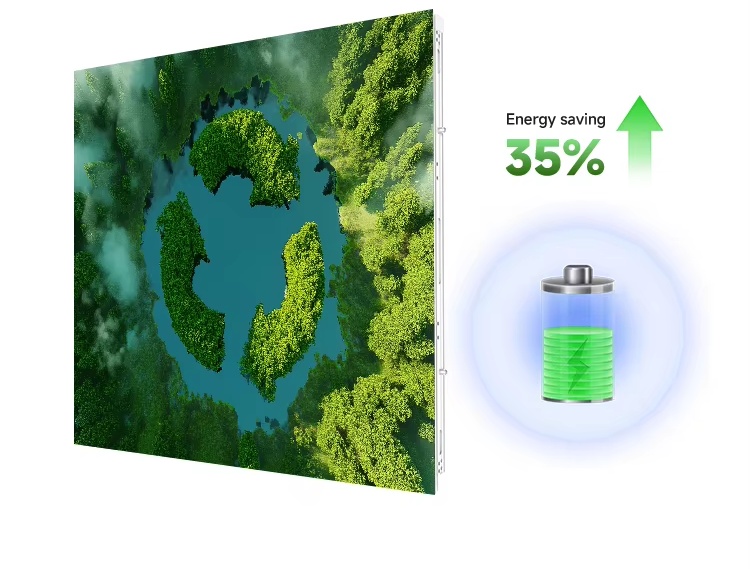

Ultra-efficient: Consumes 35% less power. Same brightness, lower cost

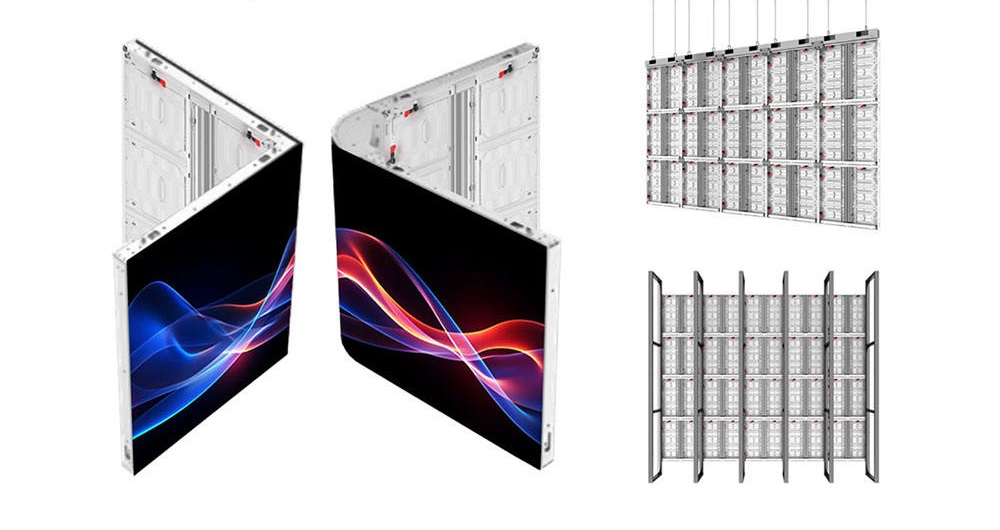

Flexible installation: right angle, round corner, hanging, wall mounted, stacking.
Support seamless right corner and round corner splicing for creative display likenaked-eye 3D solution.

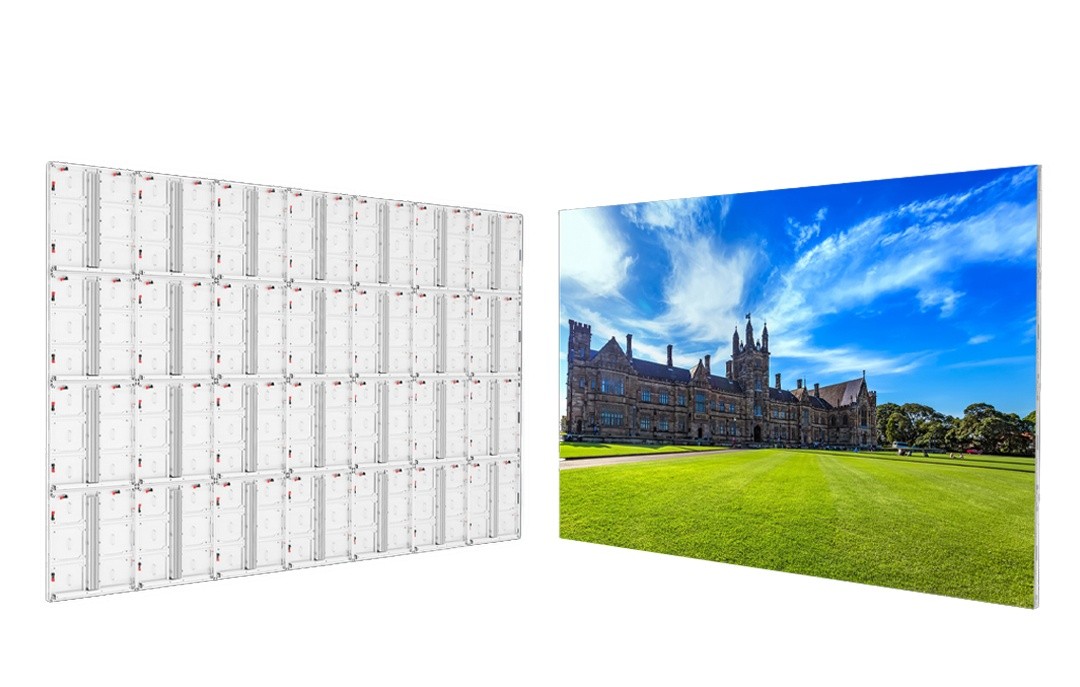

Support hanging, stacking, wall-mounted installation.
Full front and rear service for easy maintenance.
Fasten locks for quick installation.

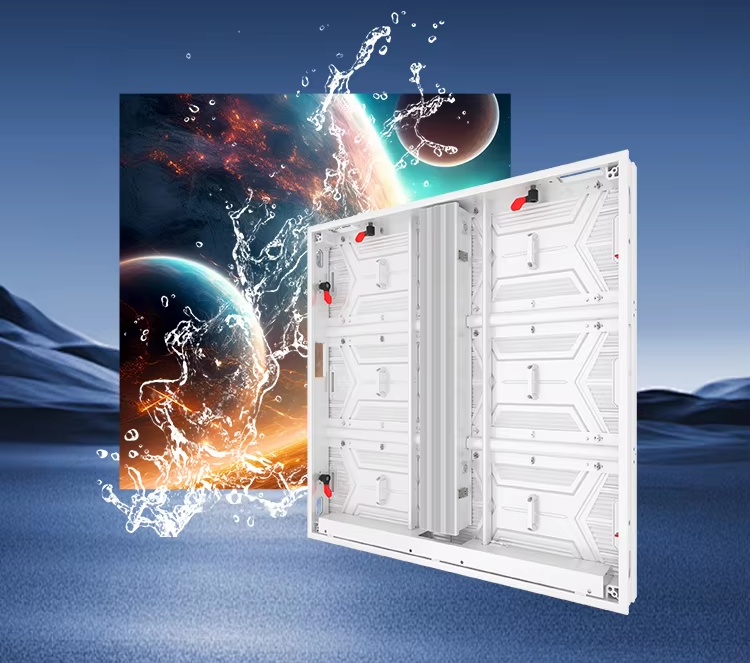

IP65 high protection level
Engineered for extreme outdoor use: IP65 dust/water protection, -40℃ to 60℃ operation, and salt spray corrosion resistance. Reliable in rain, heat, or coastal air.

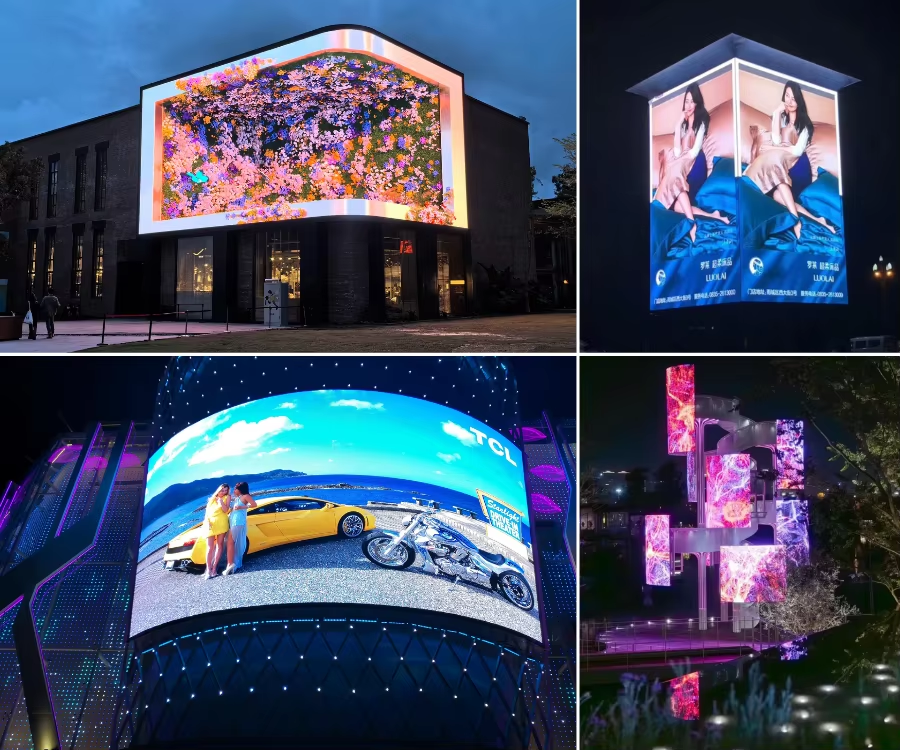

Case Reference
Specification
Product Model
P4
P4.4
P5
P5.71
P6.67
P8
P10
Pixel pitch
4mm
4.4mm
5mm
5.71mm
6.67mm
8mm
10mm
Module size
480*320mm
Module resolution
120*80
108*72
96*64
84*56
72*48
60*40
48*32
Pixel composition
SMD1921
SMD2727
Refresh rate
≥3840Hz
Brightness（cd/㎡）
≥5000
≥5000
≥5000
≥5500
≥5500
≥6000
≥6500
Viewing angle(H/V)
140/140
Life span
≥100,000 hours
Cabinet weight
26.5KG
Cabinet size
960mm*960mm*80mm
Cabinet resolution
240*240
216*216
192*192
168*168
144*144
120*120
96*96
Cabinet weight
26.5KG
Matain connection method
Hub connection ; Front&back maintain method
IP grade(front/back）
IP65
Working temperature
-20℃--+50℃
