QA Series LED Perimeter Display

  • Category: Sports LED Display
  • sports led screen
  • Perimeter LED Display
  • stadium led screen
  • football led screen
  • Product description:Boost Sponsor Visibility with CONWIN Perimeter LED Displays. Our high-definition stadium LED screens offer dynamic advertising, real-time score integration, and remote content management. Perfect for
  • INQUIRY   EMAIL

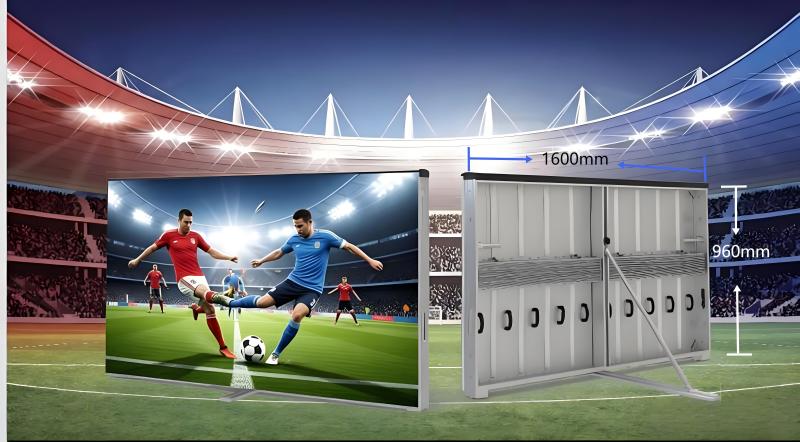

Massive 1600x960mm LED Perimeter Display – QA Series

Go big, stay slim. With a massive 1600x960mm active area and an ultra-slim 104mm depth, the QA Series delivers high-impact visibility – from dynamic advertisements to live game scores – without occupying valuable space.

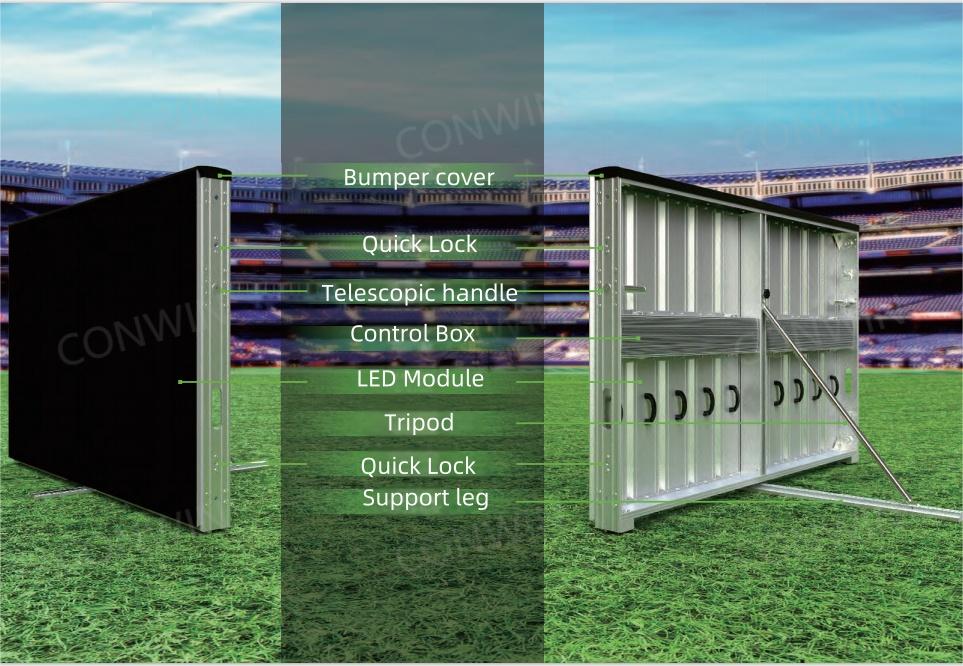

Game-Ready. Weather-Proof. Impact-Tough

The QA Series is purpose-built for the intensity of live sports. High brightness defeats glare; full dust/water protection braves the elements; and reinforced impact resistance handles stray balls with ease. Count on rock-solid performance, play after play.


Zero Gaps. Infinite Possibilities

With precision seamless splicing technology, the QA Series eliminates unsightly gaps between cabinets. Enjoy an uninterrupted, ultra-smooth viewing surface where content flows freely—without lines breaking up the picture.


0-90° Adjustable Bracket – QA Series

One display, countless angles. The QA Series features an adjustable bracket that tilts from 0 to 90 degrees, allowing you to optimize the viewing angle for any venue or scenario. Whether it's a stadium, arena, or temporary event space, audiences always get the most comfortable and clear view.

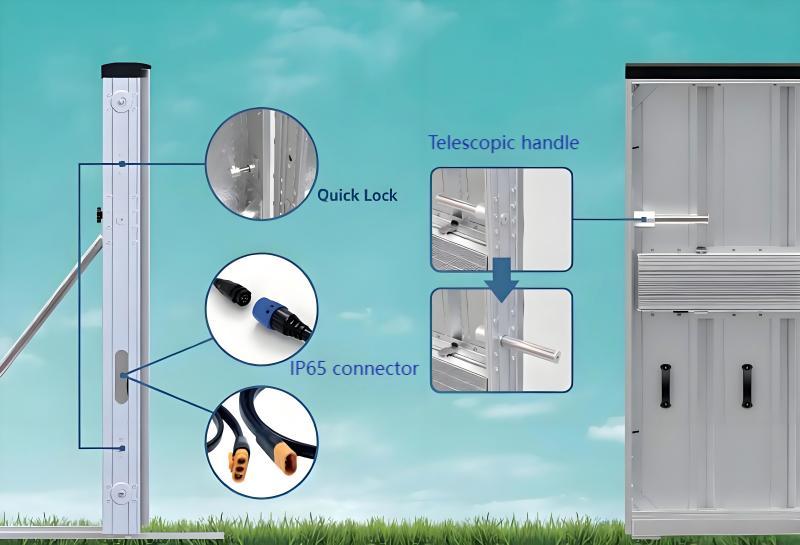

IP65 Waterproof

Rated IP65 for superior water and dust resistance. Rain, snow, or high humidity—nothing stops the QA Series from delivering crisp, reliable visuals in any outdoor environment.


Specification

Pixel pitch

6.67mm

8mm

10mm

Panel Resolution

240x144dots

200x120dots

160x96dots

LED

2727 SMD

2727 SMD

2727 SMD

Cabinet Size

1600*960mm

Cabinet Resolution

144x24dots

120x20dots

96x16dots

Material

Light metal alloy material

Service Way

Front and Rear

Brightness

≥6000 cd/

Max Power consumption

800W/

Avg Power consumption

350-400W/

Working voltage

100-240V / 50-60Hz

Operating Environment

Outdoor

Refresh rate

≥3840Hz

Operation power voltage

100-240V / 50-60Hz

Operational temperature

-40°C to +60°C / 14°F to 104°F

Operational humidity

10-80%

IP rating

IP65

Warranty

3 years
