HCOB series

Category： Mini & Micro LED Screen
COB LED Display
Wide Viewing Angles
Die Cast Aluminum
Magnetic Suction Installation
Product description：Best price for P1.25 COB indoor LED screen from leading manufacturer. High brightness, seamless splicing, and 3-year warranty. Get an instant quote and save cost!
INQUIRY EMAIL

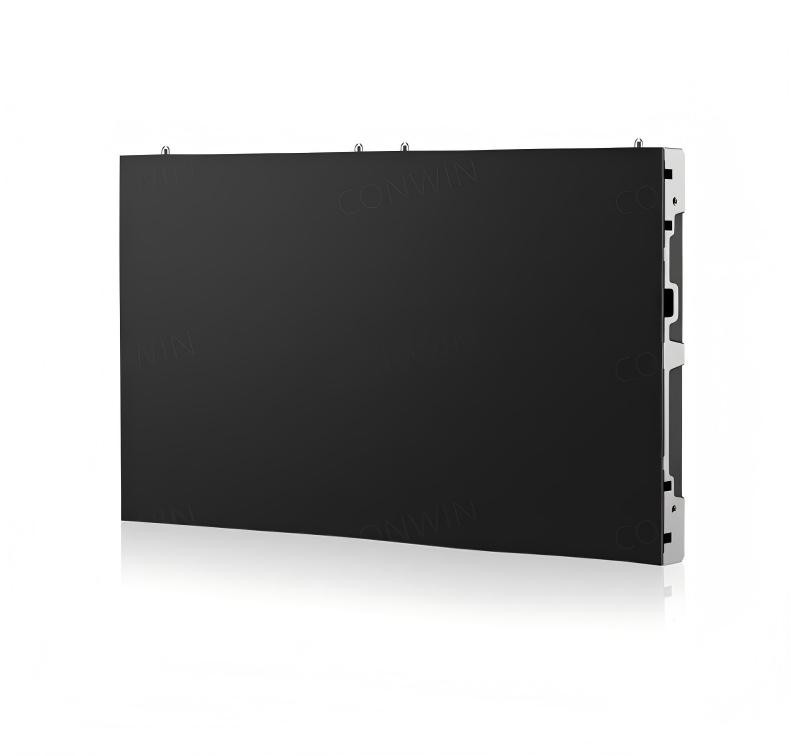

CONWIN COB P1.25 delivers true black immersion and non-glare visuals. Seamless flatness & superior contrast for high-end control rooms & conference spaces.

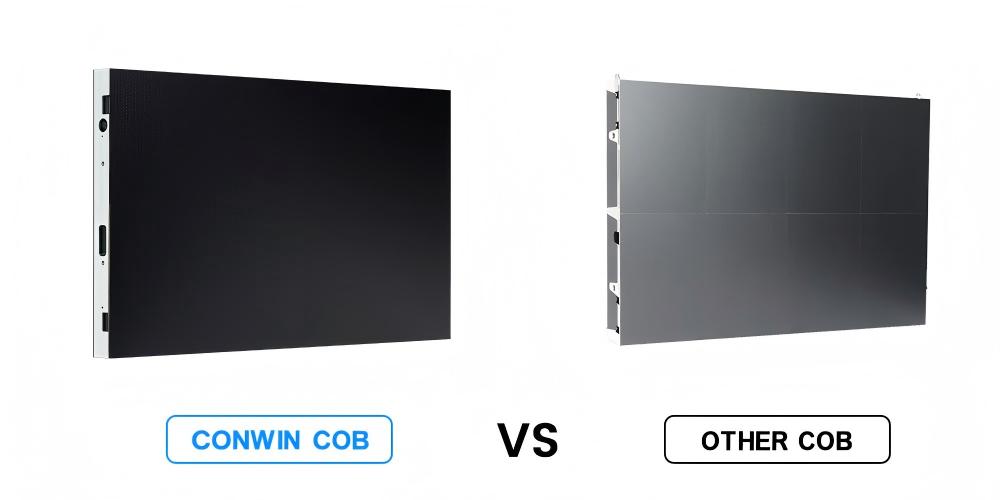

True Black. Zero Glare. Perfect Uniformity.

Our COB technology with High Contrast Black coating achieves unmatched low reflectivity and pixel‑perfect module consistency. Every cabinet matches flawlessly — no color shift, no distracting reflections. Engineered for premium indoor environments where every detail matters

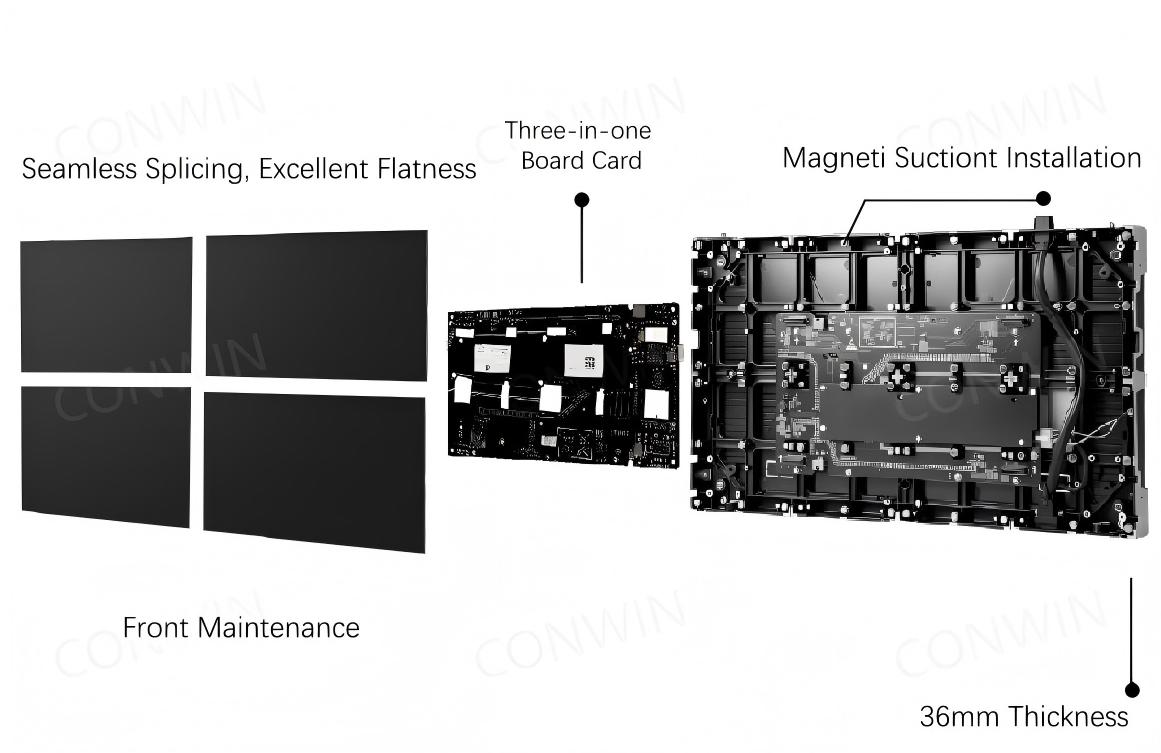

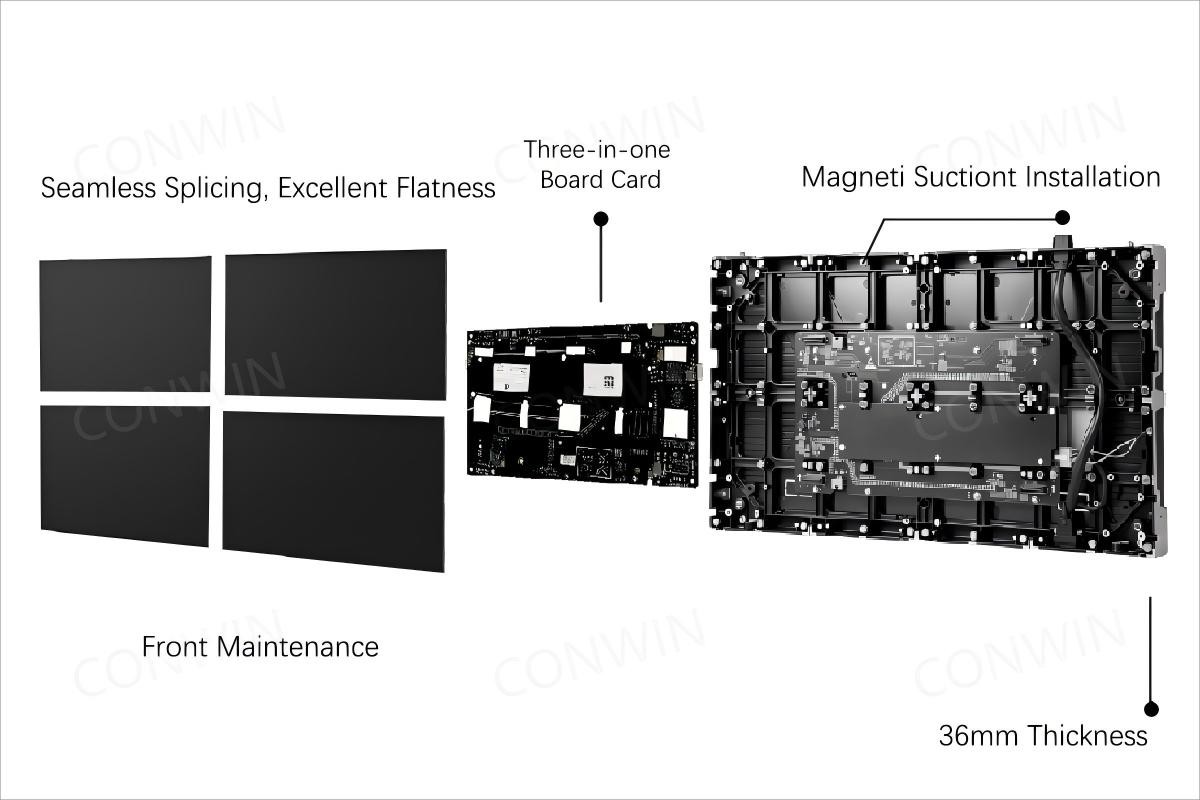

Service from the Front. Zero Rear Access Needed.
The HCOB series redefines convenience with true full front maintenance. Replace modules, power supplies, and receiving cards — all from the front. No need to leave service gaps or reserve rear space. Perfect for wall-mounted installations, shallow enclosures, and space-constrained venues. Less downtime, easier upgrades, and lower total cost of ownership.

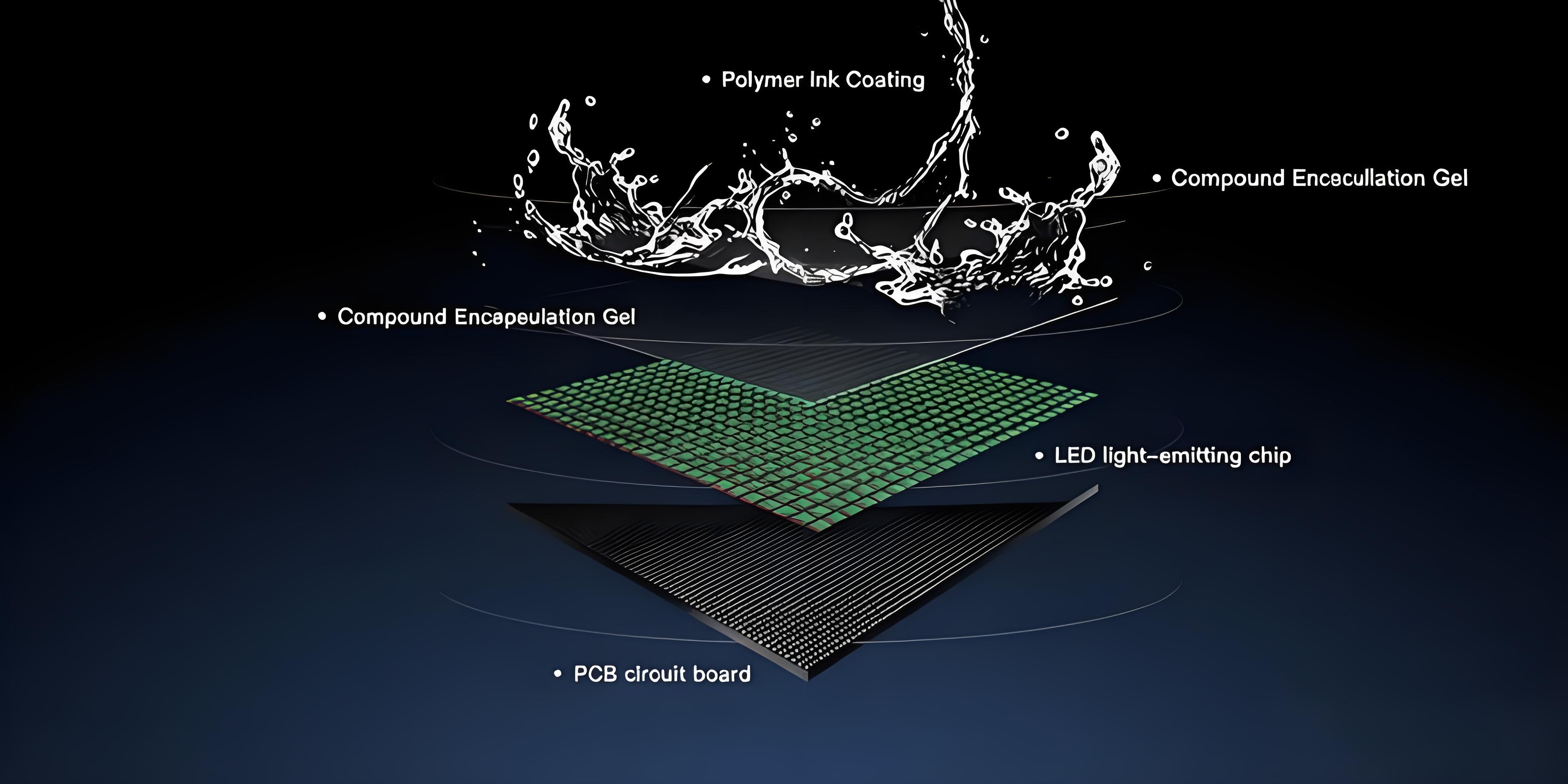

COB turns point light into area light — delivering IP65 waterproofing, dustproofing, anti-static, and anti-impact protection in one seamless surface.

Quantum Dot Precision. True-to-Life Color.
By generating pure monochromatic light, quantum dot technology delivers colors that are richer, more saturated, and remarkably natural. It covers nearly every color the human eye can see — reaching a full 100% of Rec. 709.

170° Wide Viewing Angle. Great from Any Seat.
With an ultra-wide 170° viewing angle, the picture stays perfect from every direction — left, right, center, or corner. No color shift. No brightness loss. Just stunning visuals for everyone in the room.

Specifications

Pixel pitch (mm)	0. 9375	1.25	1.56	1.875	0.78	0.93	1.25	1.56
Resolution (WxH)	640X360	480x270	384x216	320x180	768x432	640x360	480x270	384x216
Dimensions (mm)	600X337.5X36
Weight (kg)	4.5
Flatness (mm)	0.15
Brightness (cd/m²)	600-1000
C/T (K)	3000~10000K (adjustable)
NTSC color gamut	105%
Brightness viewing angle	170/170
Brightness uniformity	97%
Max power (W/m²)	335	320	300	280	425	325	295	280
Ave power (W/m²)	113	108	100	95	142	109	100	95
Input voltage (AC)	100V-240V
Contrast ratio	5000:1
Scans	54	60	54	45	64	40	60	36
Frame rate (Hz)	60	60	60	60	60	60	60	60
Parameter grayscale (Bit)	13-16
Refresh rate (Hz)	3840~7680
IP protection level	IP65 Surface waterproof
Correction technology	Support
Flash storage function	Support
Certification	CCC , CE , ROHS, FCC, ETL
