Indoor Micro LED Video Wall Screen Aluminum Cabinet
1) Fine pixel pitch available

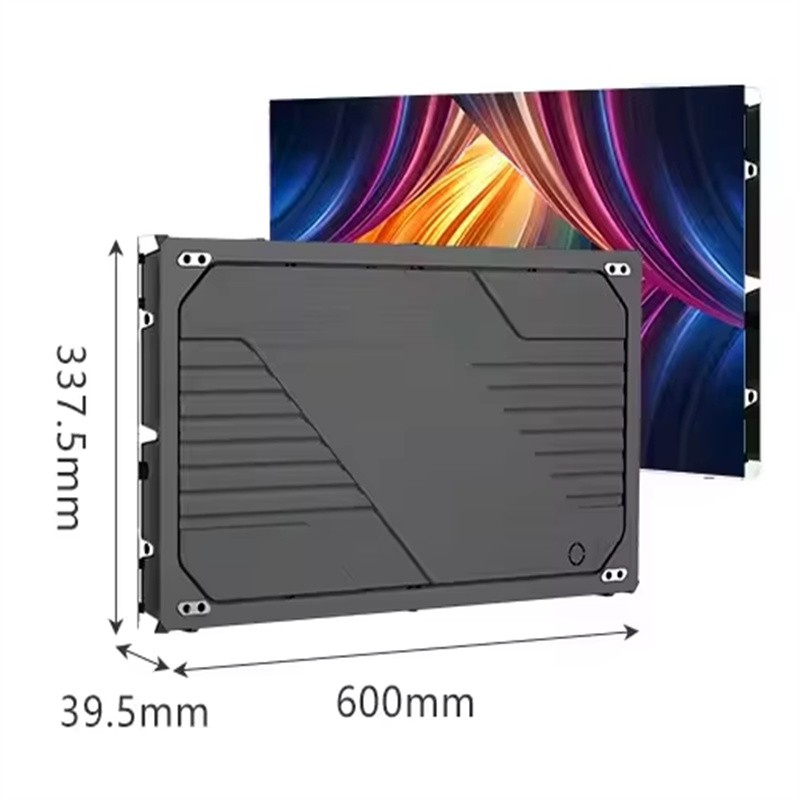

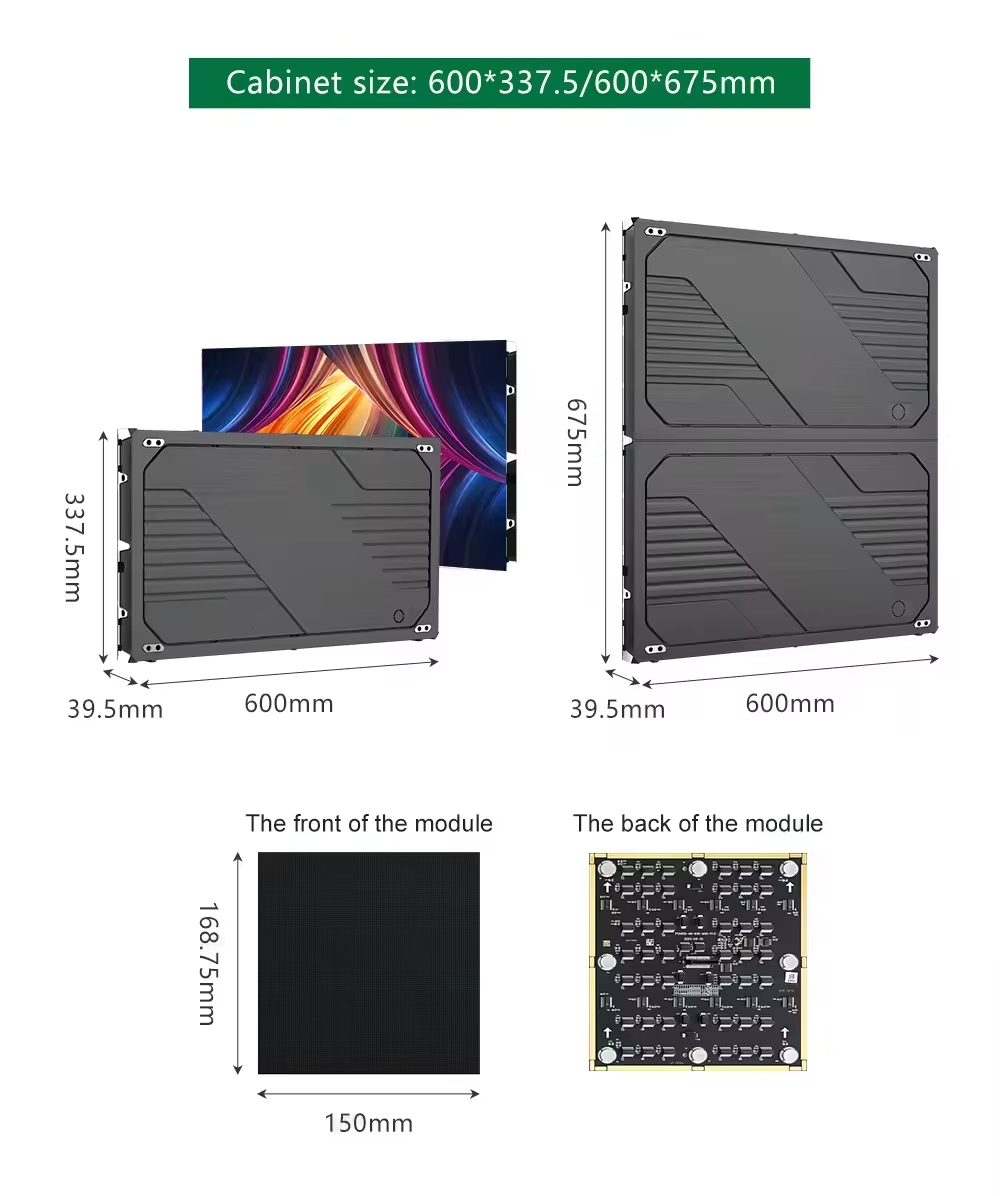

2) Various cabinet size 600*337.5/600*675mm

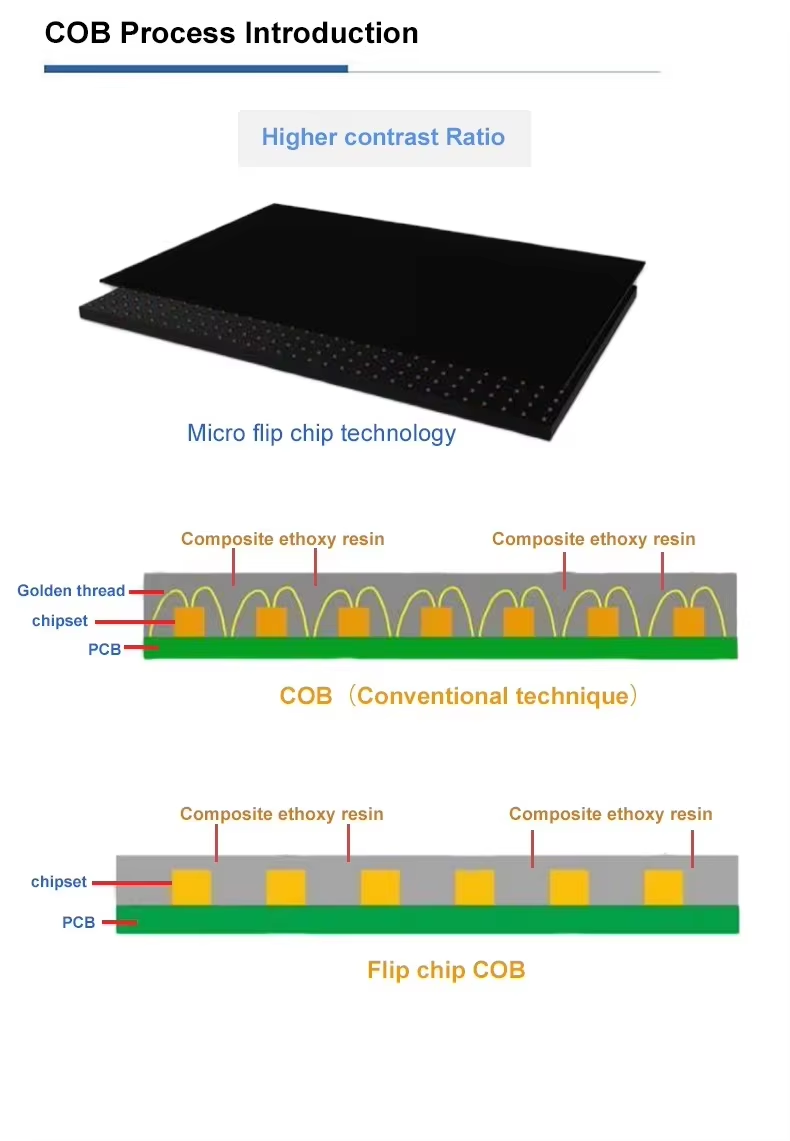

3) COB type HD and stable quality, also GOB/MIP types available

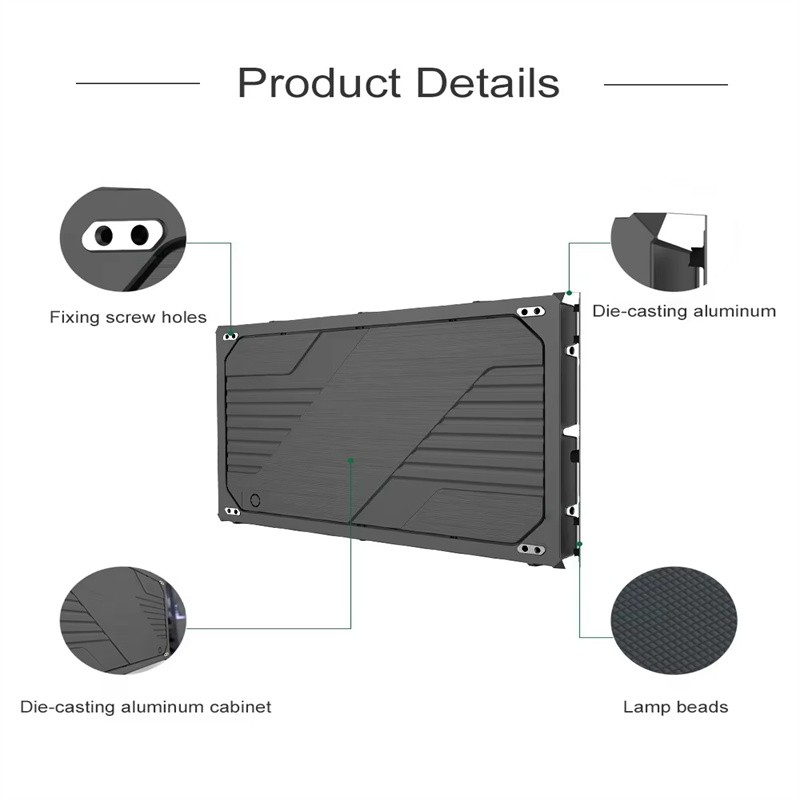

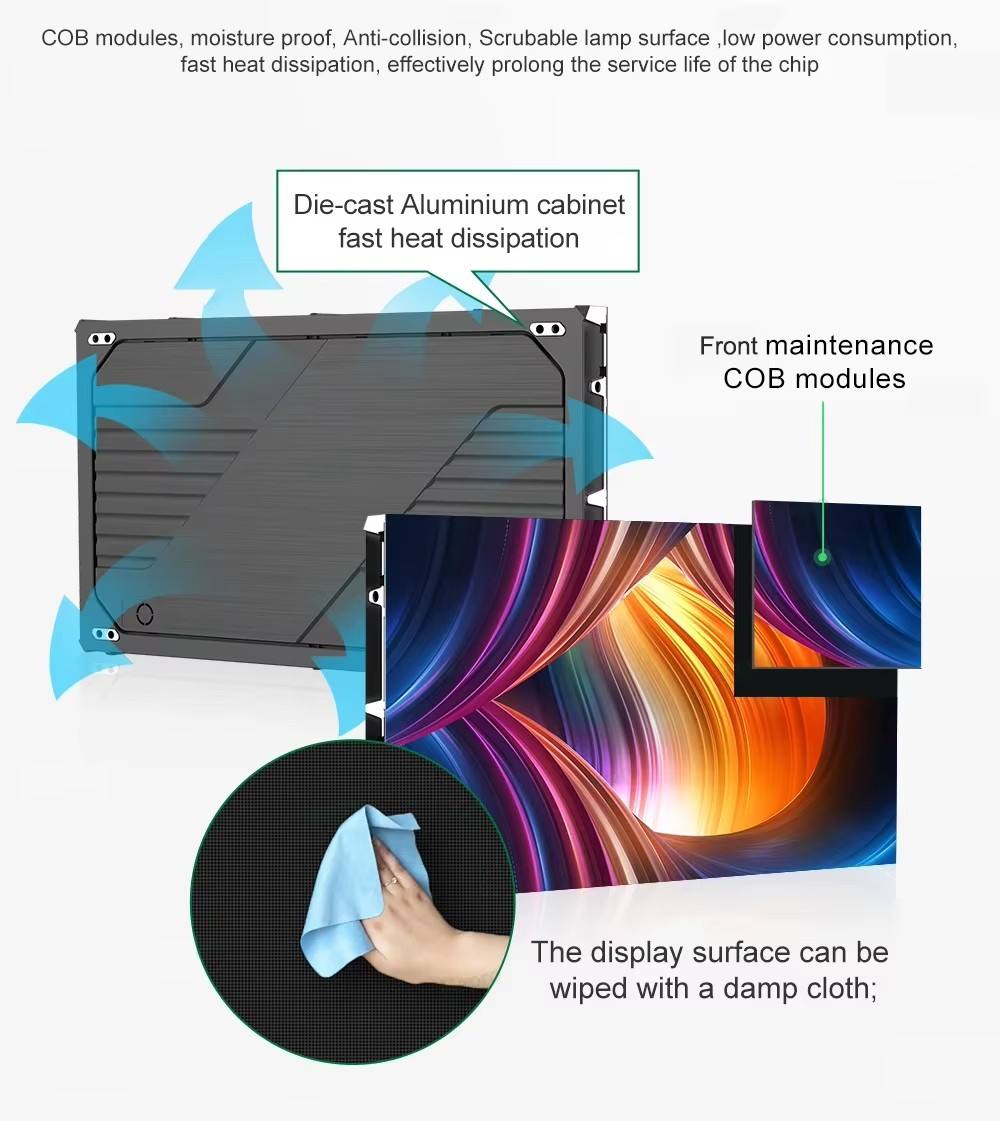

4) Full Front Service COB Module, Die-cast Aluminum Cabinet

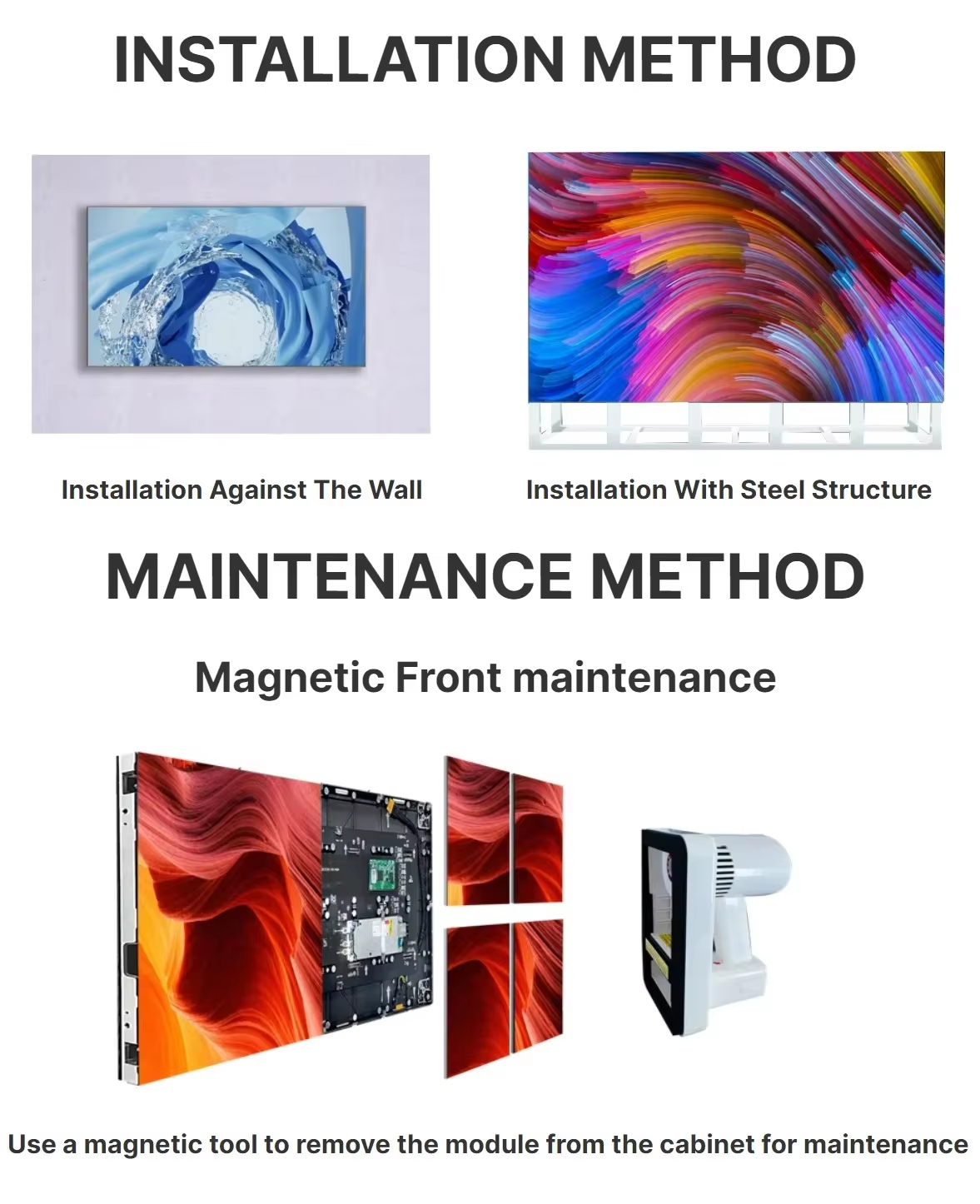

5) Multiple installation methods available, easy to do maintenance work
Parameters
|
Model |
P0.78 |
P0.93 |
P1.25 |
P1.56 |
P1.87 |
|
Application |
Indoor |
||||
|
LED Type |
COB/GOB/MIP |
||||
|
Pixel Configuration |
1R1G1B |
||||
|
Pixel Pitch (mm) |
0.78 |
0.93 |
1.25 |
1.56 |
1.87 |
|
Module Size (mm) |
150*168.75 |
||||
|
Module Resolution |
192*216 |
160*180 |
120*135 |
96*108 |
80*90 |
|
Cabinet Size (mm) |
600*337.5 |
||||
|
Cabinet Weight (kg) |
4.5 |
||||
|
Pixel Density |
1643524 |
1137785 |
640000 |
409600 |
284440 |
|
Material |
Die-casting Aluminum |
||||
|
Operating Temperature |
-20°C~60°C |
||||
|
Operating Humidity |
10%~90% |
||||
|
Refresh Rate |
3840HZ-7680HZ |
||||
|
Drive Mode |
1/52 |
1/54 |
1/60 |
1/54 |
1/40 |
|
Brightness (nits) |
≥800 |
||||
|
Viewing Angle (H/V) |
160°/160° |
||||
|
Frame Rate |
≥50/60 |
||||
|
Control Mode |
Synchronous |
||||
|
Input Voltage |
AC110/220V |
||||
|
Max. Power (W/sqm) |
<1200 |
<1200 |
<1200 |
<800 |
<800 |
|
Average Power (W /sqm) |
<350 |
<350 |
<350 |
<350 |
<400 |
|
Lifespan |
>100000h |
||||
