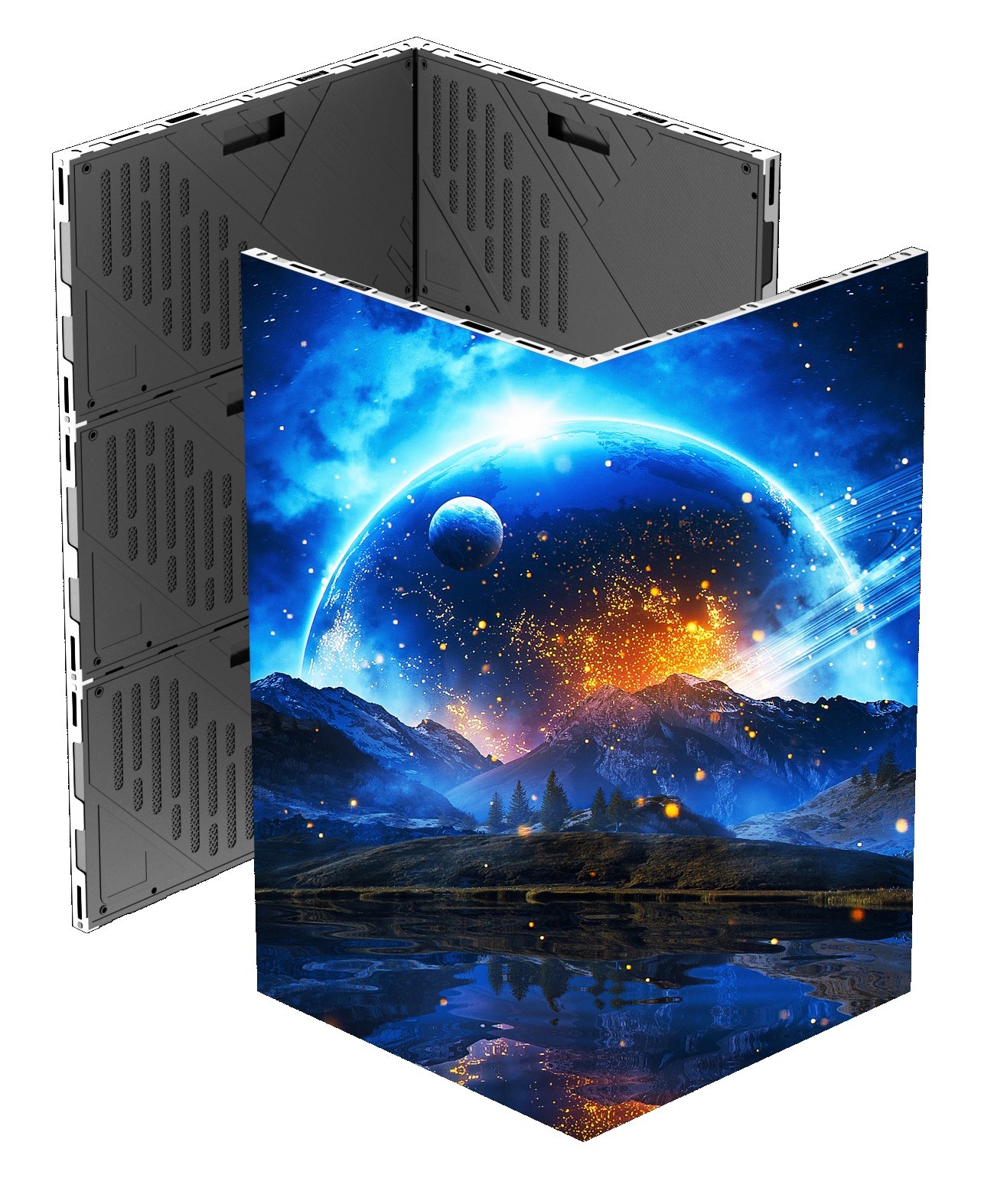

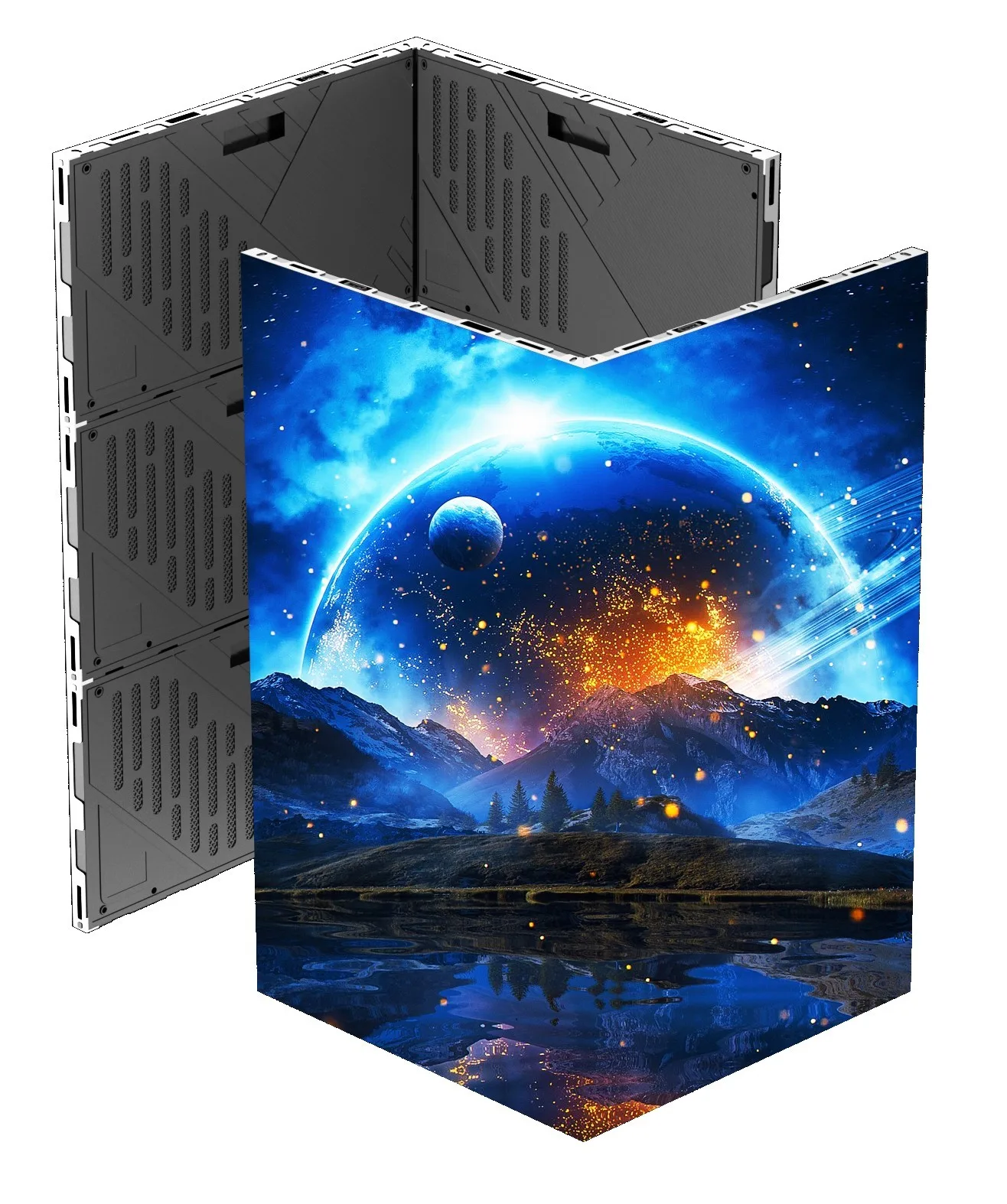

Indoor Ultra Slim Fine Pitch 4K/8K Fixed Screen

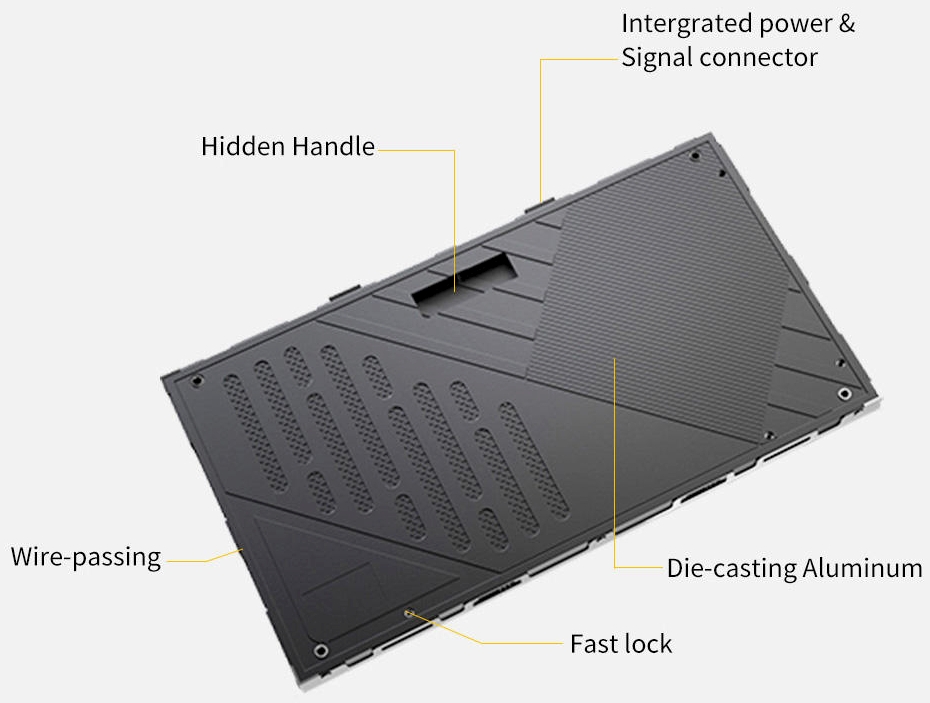

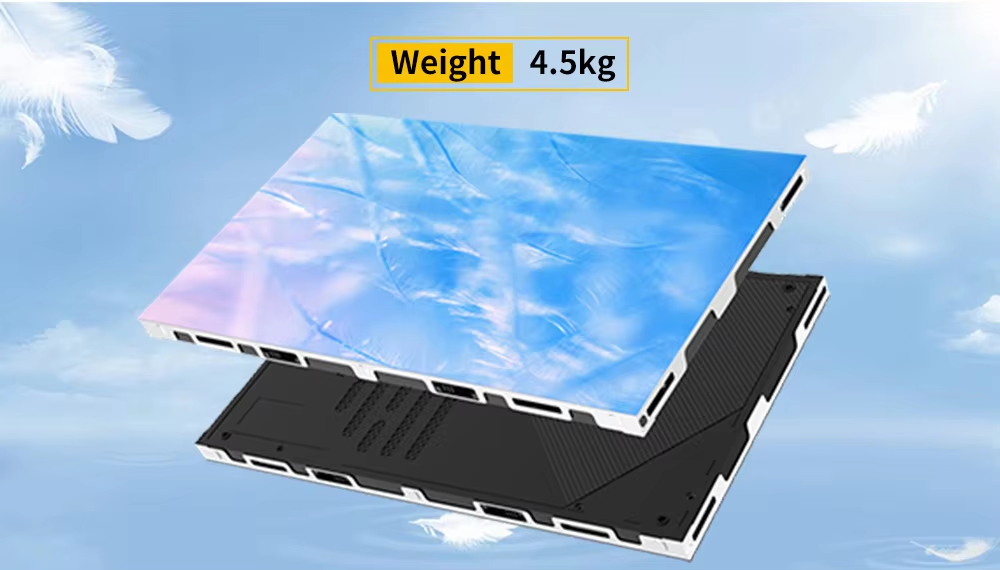

1) Aluminum profile cabinet, stitching weighing only 4.5kg/pc
2) Full front easy maintenance, support power and data backup,more reliable

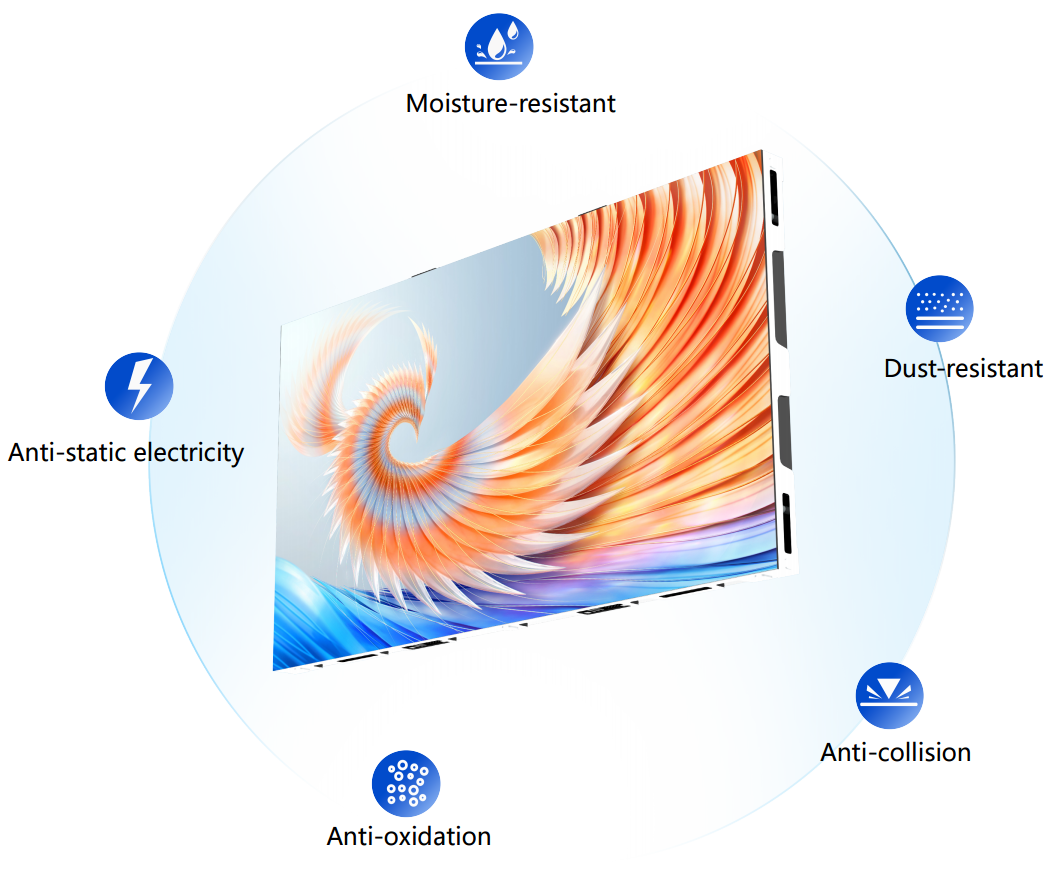

3) COB/GOB/MIP packaging process, multiple protections to meet various environmental challenges

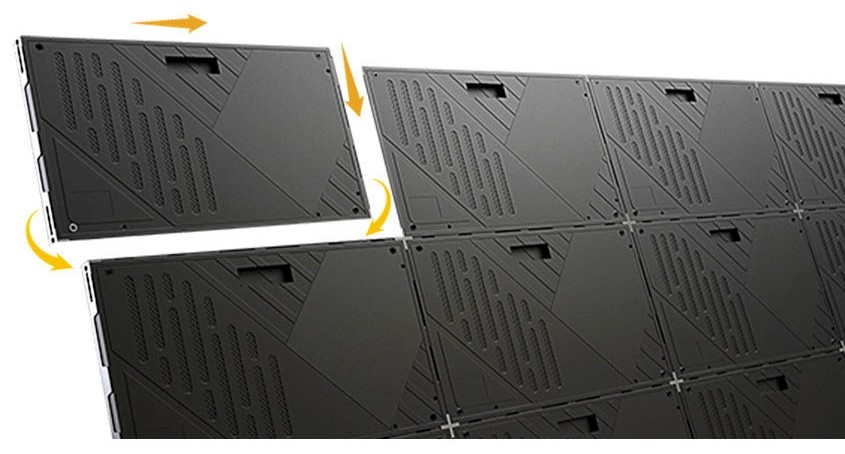

5) Screw-less design for faster and more secure installation, super silent fan-less design, flatness of Cabinet<0.1mm

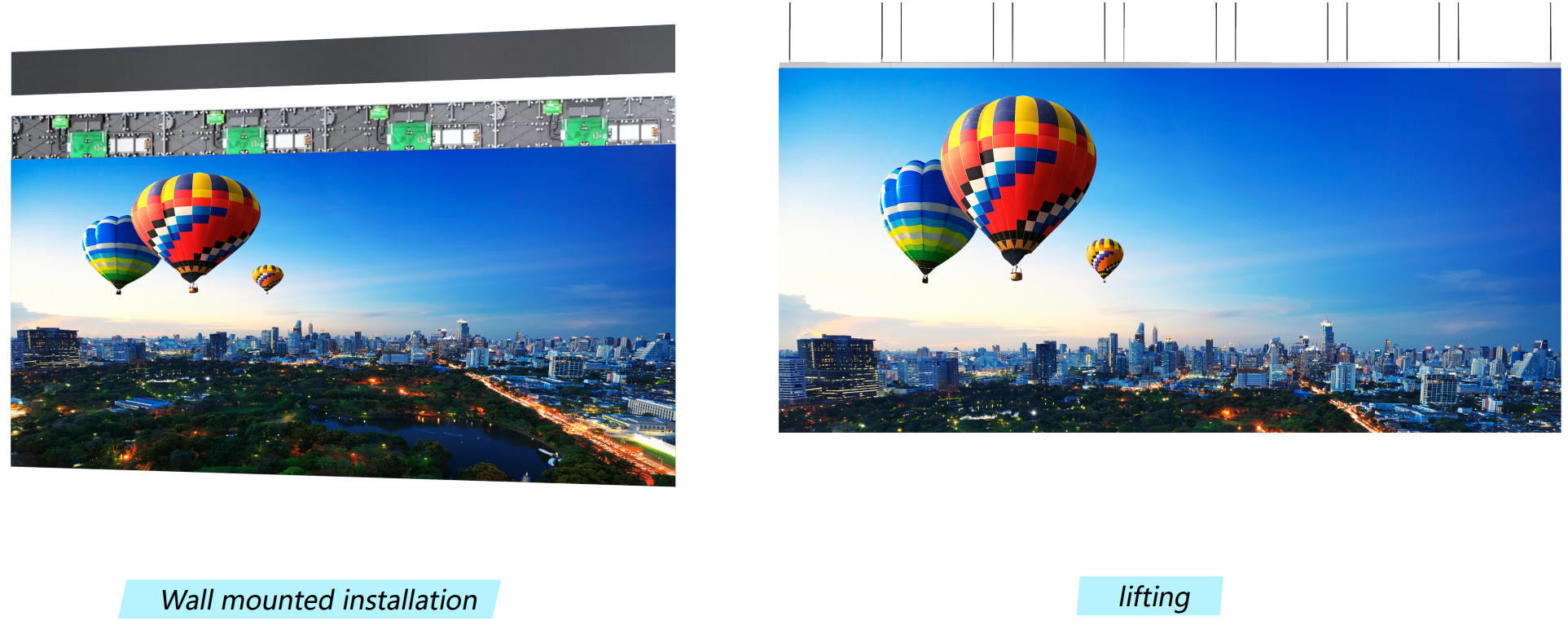

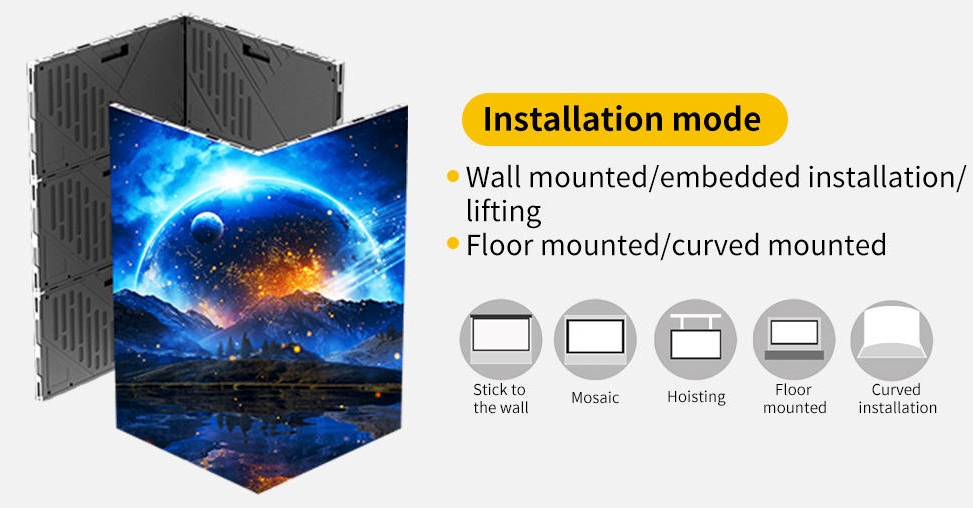

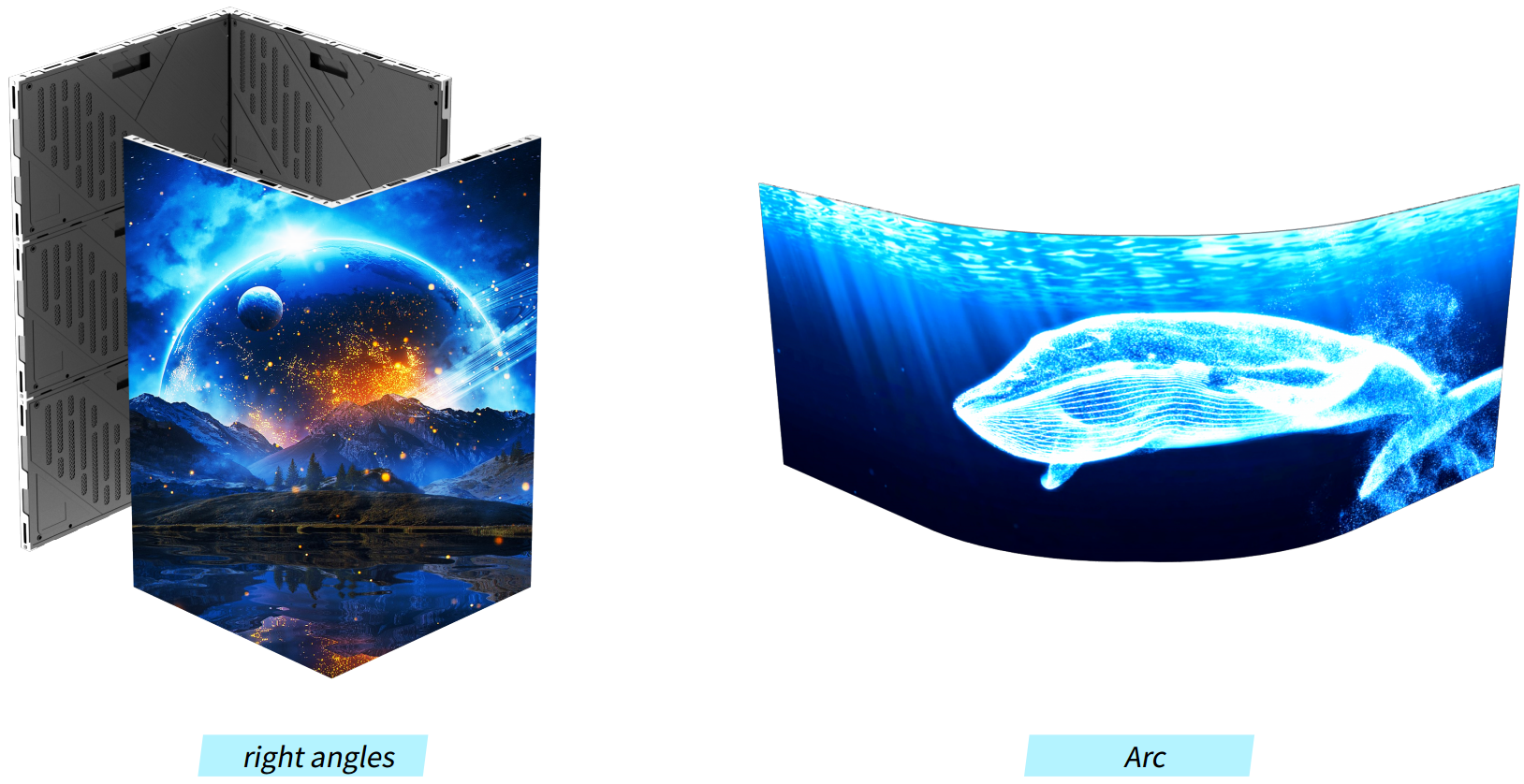

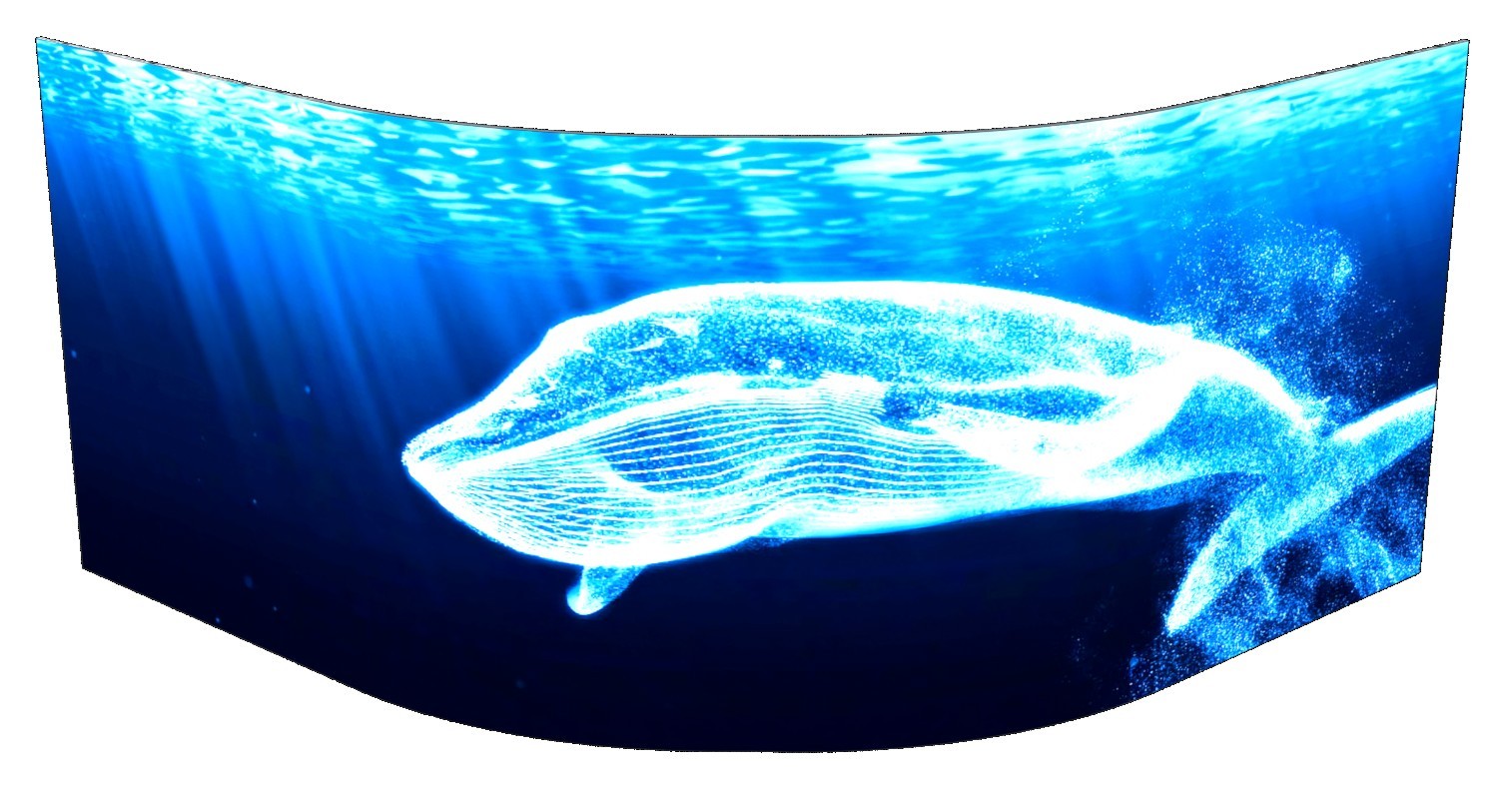

6) Multiple installation methods
7) Parameters
Pixel pitch
P0.625
P0.78
P0.9375
P1.25
P1.5625
P1.875
LED type
COB
Physical density (Dot/sqm)
2560000
1638400
1137778
640000
409600
284444
Module resolution
240X270
192X216
160X180
120X135
96X108
80X90
Module size (mm)
150X168.75

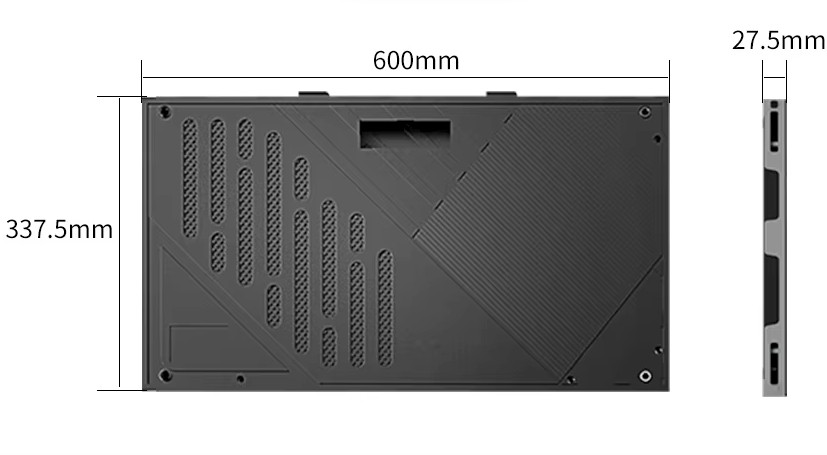

Panel dimension (WXHXD/mm)
600X337.5X27.5
Panel resolution
960X540
768X432
640X360
480X270
384X216
320X180
Module QTY (WXH)
4X2
Panel weight (kg)
4.5
Maintenance Mode
Front maintenance
Cabinet material
Die-cast aluminum
Brightness calibration
Have
Brightness (Nits)
>500
>500
>500
>500
>600
>600
Color temperature (K)
5000-12000 Optional
Viewing angle (V/H)
170°V170°
Contrast ratio
15000:1
Frame frequency
50/60
Drive mode
1/64 scan
1/64 scan
1/60 scan
1/60 scan
1/48 scan
1/45 scan
Grey level
16bit
Refresh rate (Hz)
3840-7680
Max. power consumption (W/sqm)
420
Avg. power consumption (W/sqm)
80-150
Protection level
IP31
Power input
AC90-264V,47-63Hz
Working temp./Humidity (℃/RH)
-20~60℃/10%~85%
Storage temp./Humidity (℃/RH)
-20~60℃/10%~85%
Cert.
CCC/CE/ROHS
