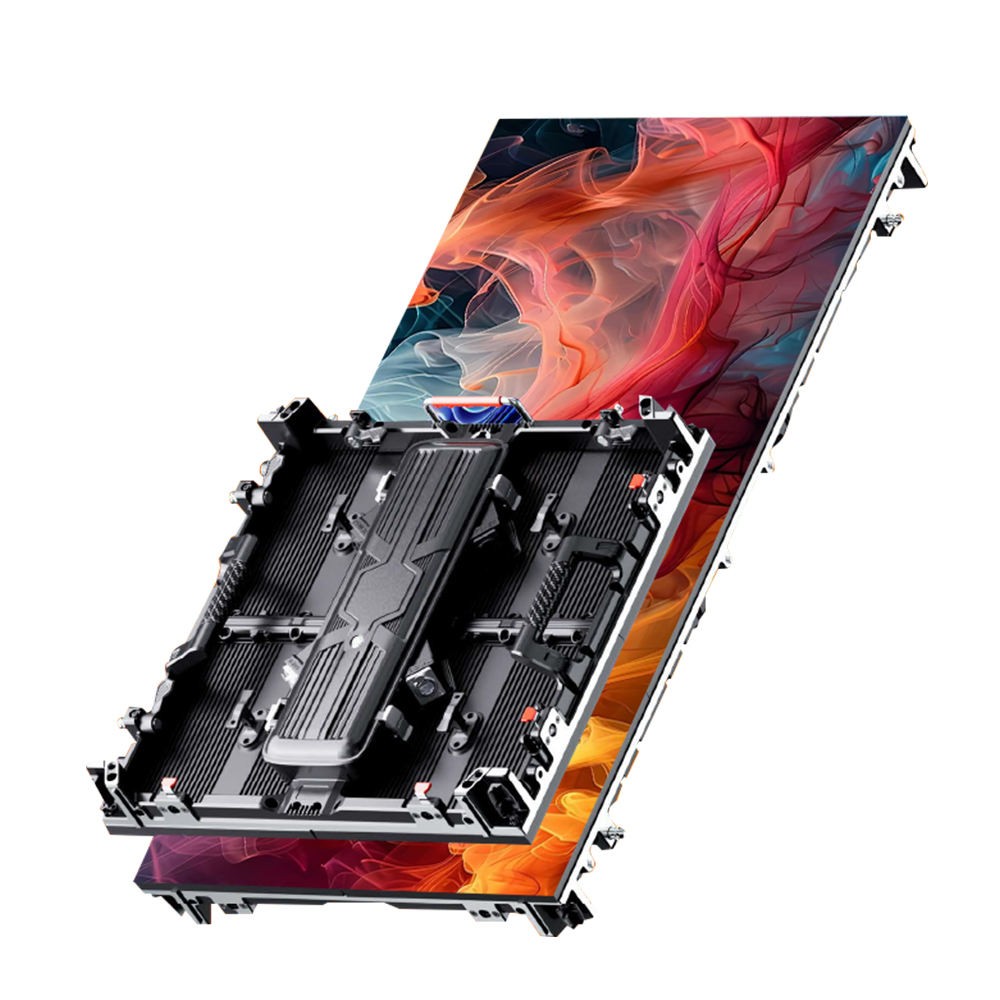

R Series Rental LED Screen

Product Item : R-1.56
Category： Rental LED Display
High brightness with adjustable levels‌
‌Lightweight cabinet design
curved rental led screen
events led screen
Product description：Rent P2.97/P3.91 indoor LED screens with ultra-high brightness and flicker-free performance. Perfect for trade shows, stage backdrops, and TV studios. Our rental LED walls feature modular design for e
INQUIRY EMAIL

Advantages

Feature Description

- Arc installation
- High precision design
- 800-5000 high brightness
- Ultra-light design
- 3840Hz High refresh

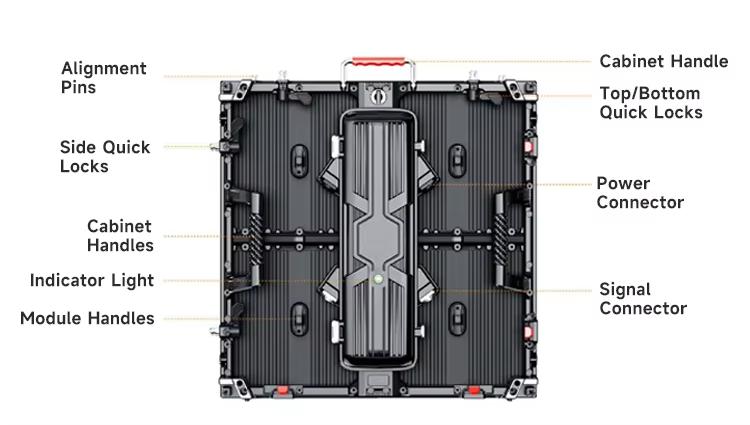

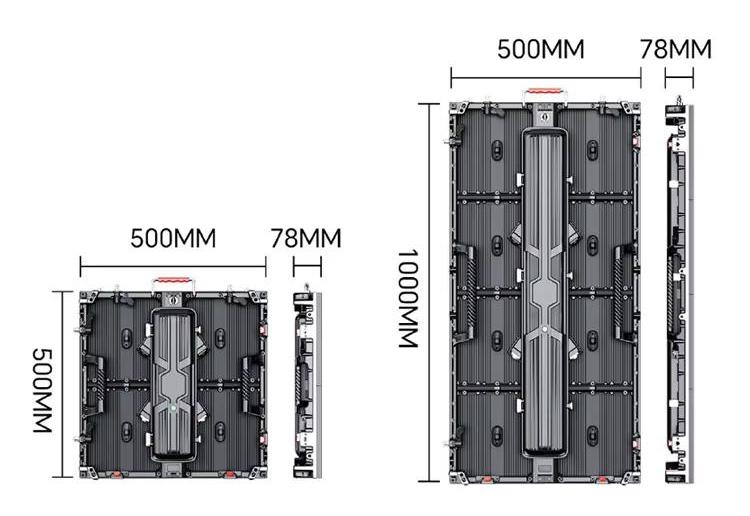

Cabinet diagram

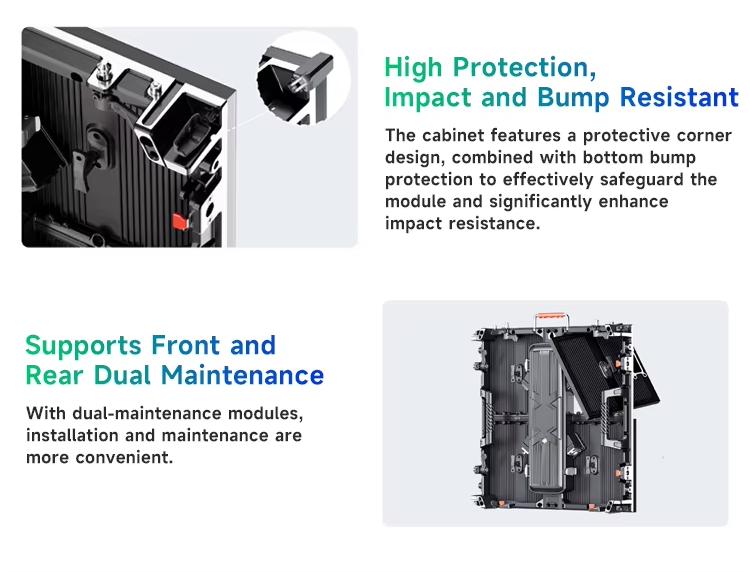

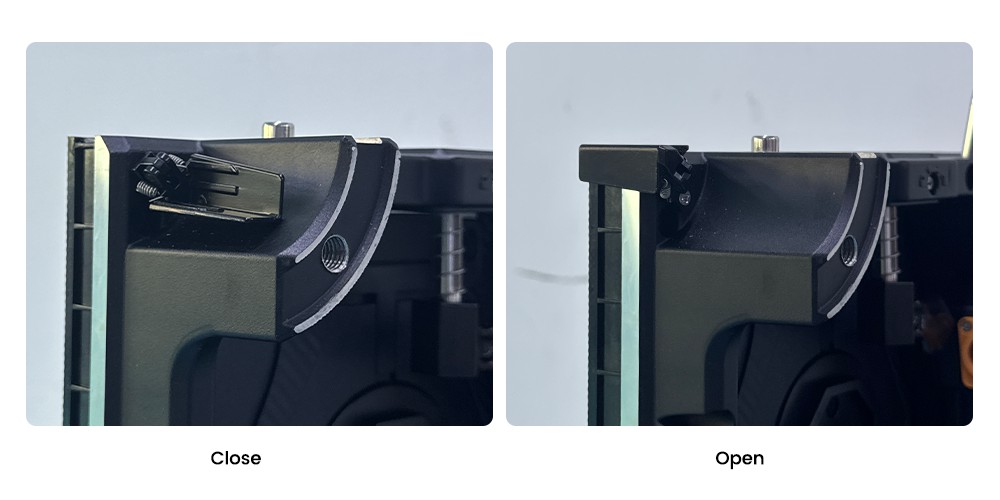

Anti-collision design

Rental LED display is designed with four corner guards to effectively prevent damage to the LED during transportation, installation, operation and disassembly

Front and Rear Maintenance

Front maintenance design allows technicians to perform maintenance directly from the front of the screen, without needing to dismantle the rear structure, making it more convenient.

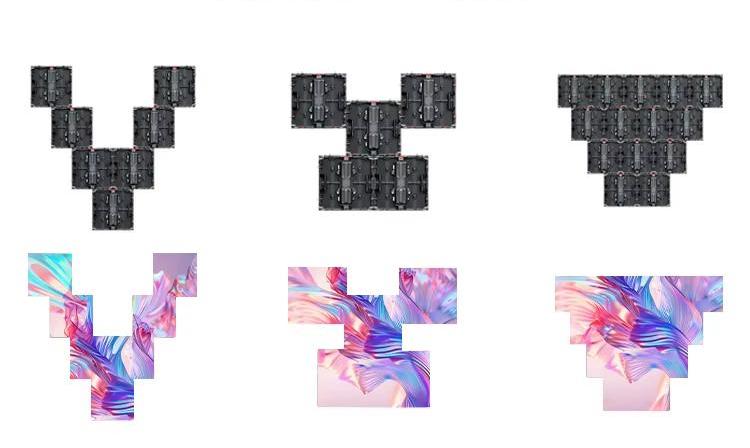

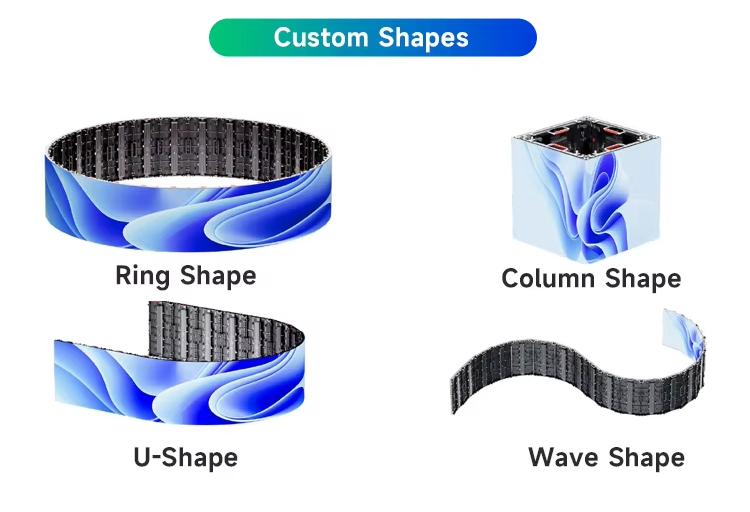

Creative Shape

The 500x500 and 500x1000 cabinets areinterchangeable and can be spliced togetherin any direction-up, down, left, or right-allowing for staggered to create a variety ofunique shapes and configurations.

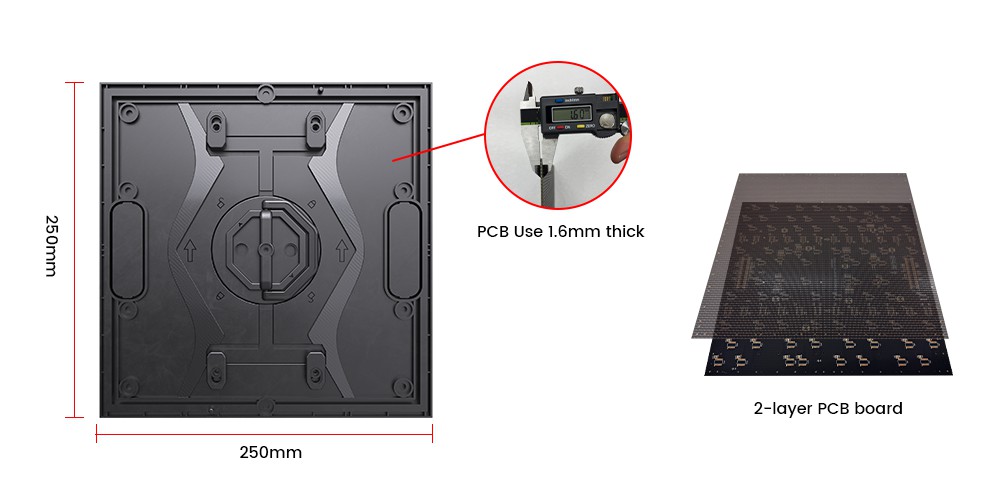

High quality module
The 1.6mm thick H2 multi-layer high-quality PCB board is used. Compared with conventional single/double-layer boards, it has more standardized wiring, wider wire diameter and higher performance stability.

Flat Cabinet
Each cabinet (include all components) is only 7.5kg , four sets strong fast lock to make assembling to be easier.

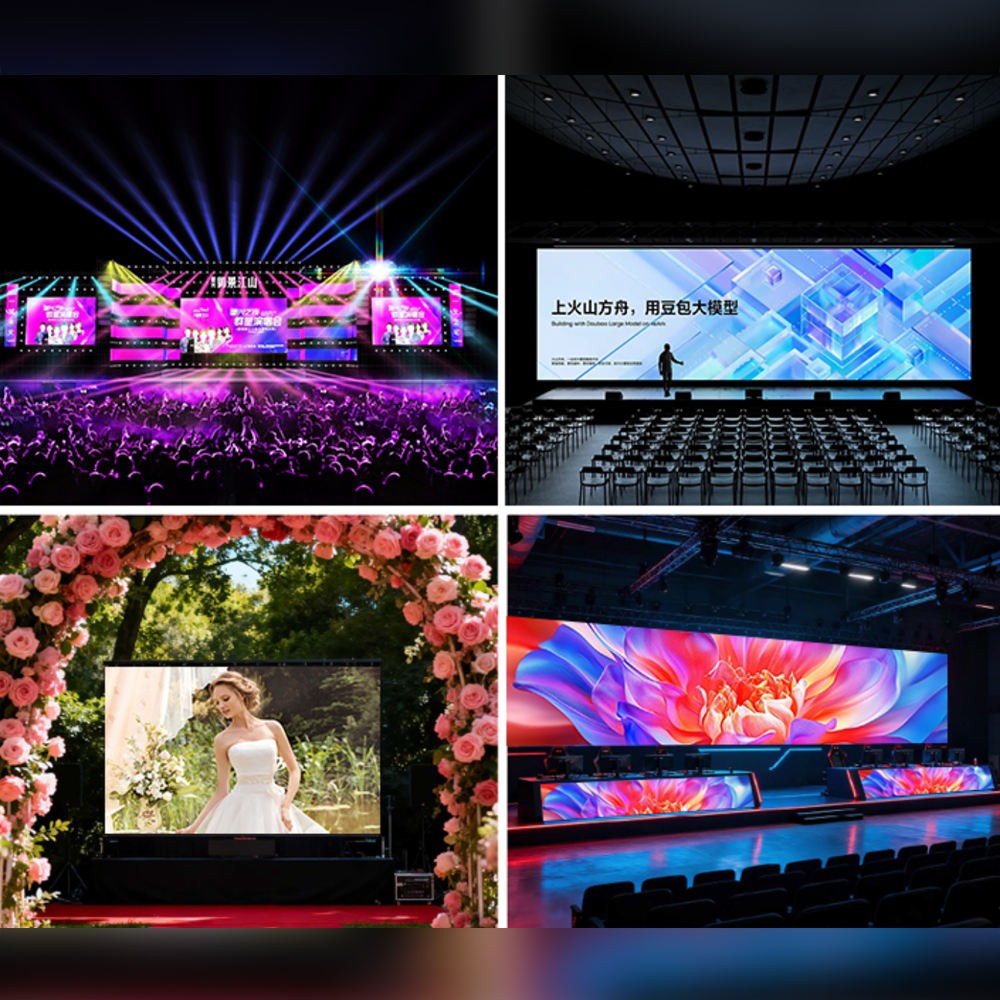

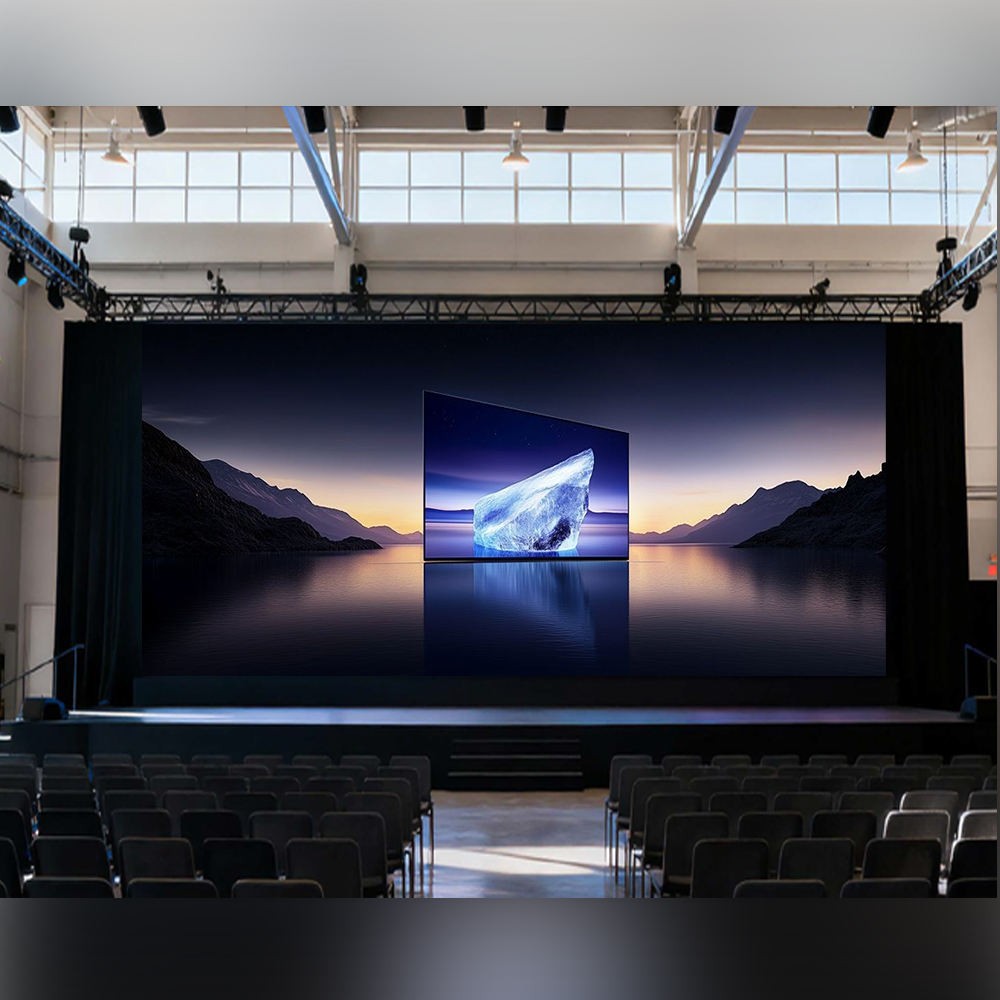

Project Case

Specification

Model	P1. 56	P 1.953	P 2.604	P 2.976	P 3.91
Module size	250×250mm
Module resolution	128x128dot	128x128dot	64 × 64 dot	64×64dot	52×52dot
Scanning	1/ 40 s	1/32s	1/ 32 s 1/24s	1/ 28 s 1/21s	1/1 6 s
SMD	SMD 1212	SMD1515	SMD1515	SMD2 1 2 1 / 1415	SMD 2 1 2 1/ 1921
Maintenance	Front/Back

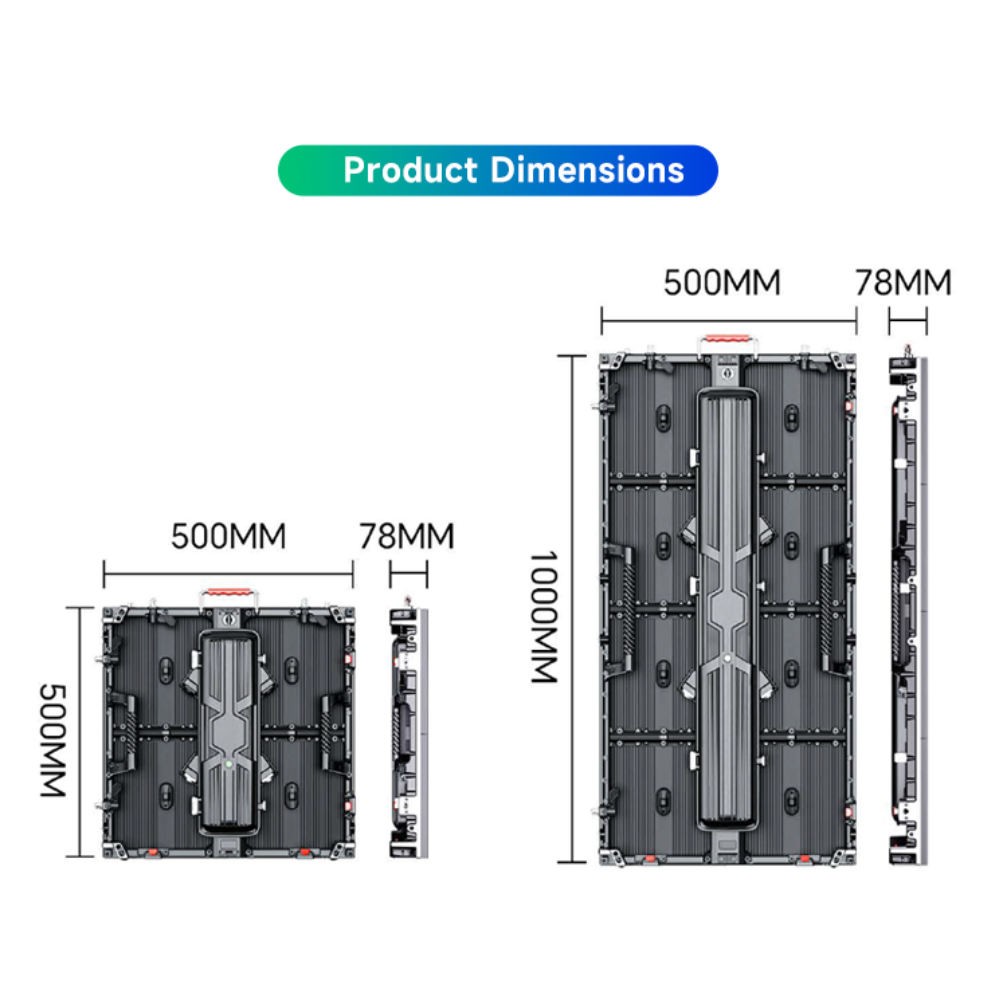

Cabinet size	500×500/500x1000mm
Density	409600 dot/m²	262144 dot/m²	147474 dot/m²	112896 dot/m²	65410 dot/m²
Brightness	≥800cd/m²	≥800cd/m²	800≥5000cd/m²	800≥5000cd/m²	5000cd/m²
Max. Power Consumption	800w
Ave Power Consumption	400w
Cabinet weight	7.5/13kg
Cabinet material	Die-casting aluminum
IP rate	IP31	IP31	IP31 /IP65	IP31/IP65	IP65
Grayscale	5000:1
Refresh rate	≥3840Hz
Frame change frequency	50/60hz
Vertical viewing angle	＞140°
Input Voltage	AC110V – AC220V
Temperature-operating	﹣10℃～60℃
Life span	≥100,000H
