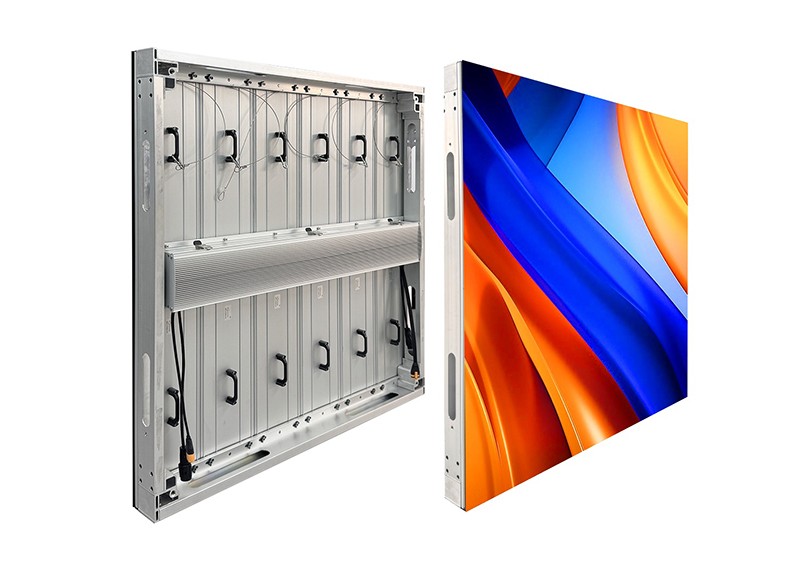

Outdoor Aluminum LED Screen IP65 For Advertising Billboard
Feature Description
- High brightness and super energy saving
- Ultra-light and ultra-thin
- Simple structure, full wireless, hard link, front and rear maintenance
- Good heat dissipation, no need for air conditioning
- V0 Fire-Retardant Material
- Modular aluminum bottom shell, flame retardant and fireproof, waterproof grade IP65

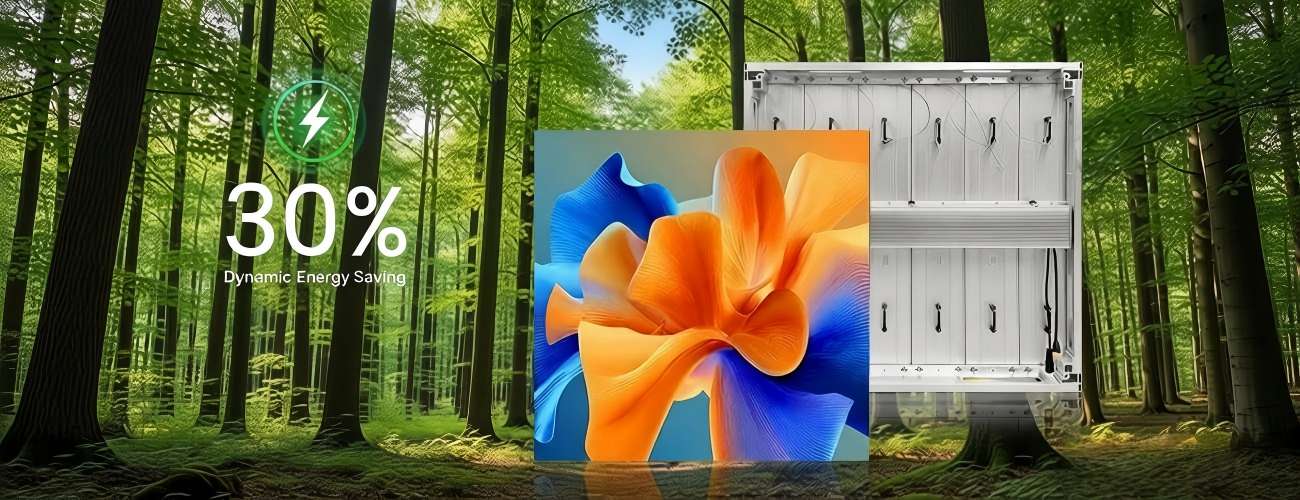

Save 30% Energy – Dual power supply + optimized circuits. Our outdoor aluminum LED display delivers exceptional brightness while consuming up to 30% less energy. Lower bills, greener operation, zero compromise.

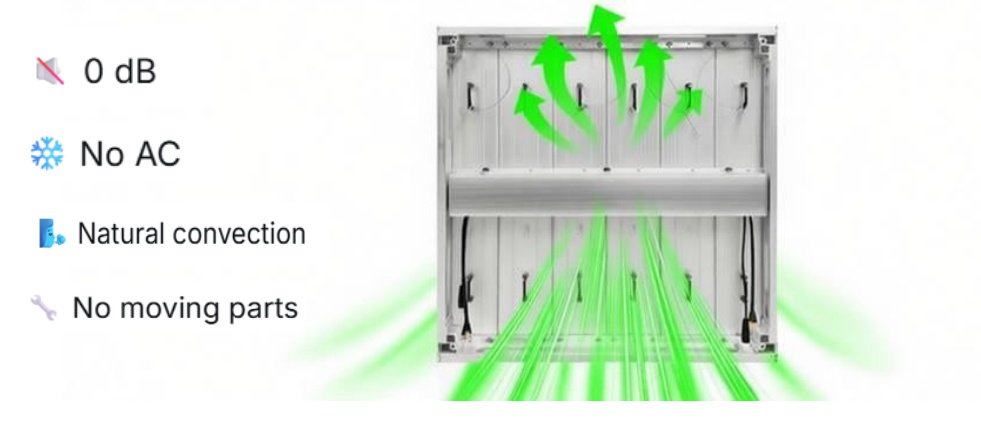

Fanless Self-Cooling – Modular design + silent thermal convection. No fans, no AC, no noise. Runs cool and quiet naturally – saving you energy and maintenance costs.

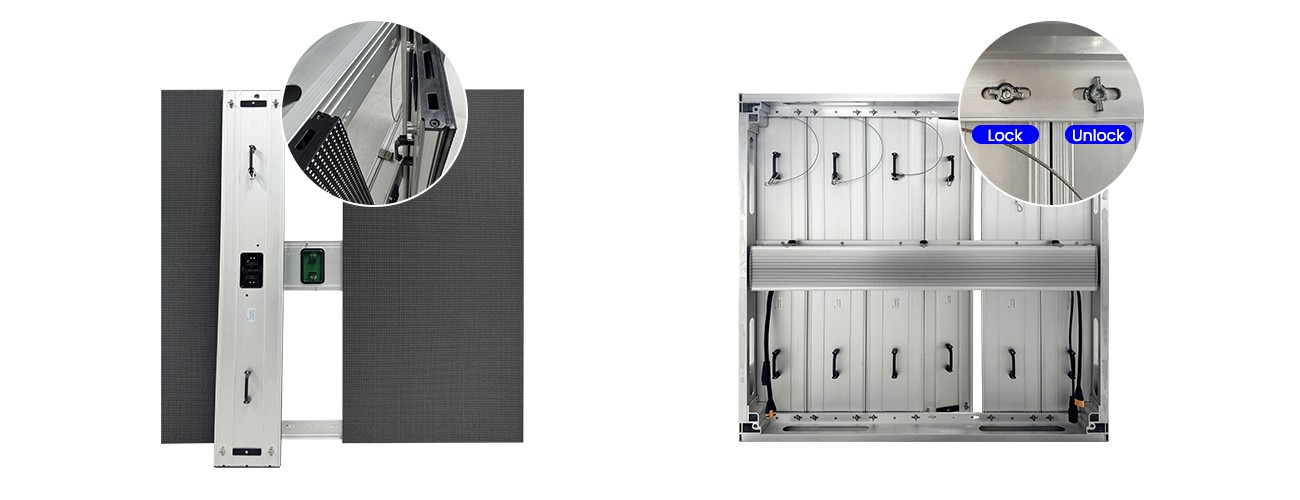

Front & Rear Maintenance – Service from either side. Simplify operation, slash installation complexity, and cut maintenance time in half. Works anywhere – even in tight spaces.

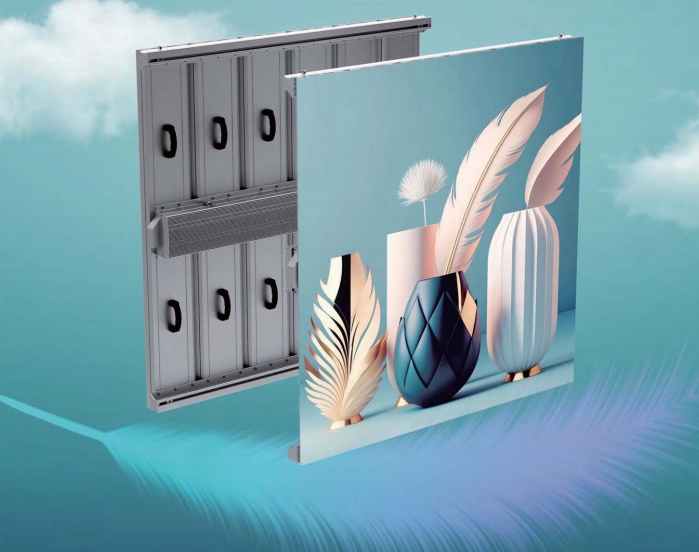

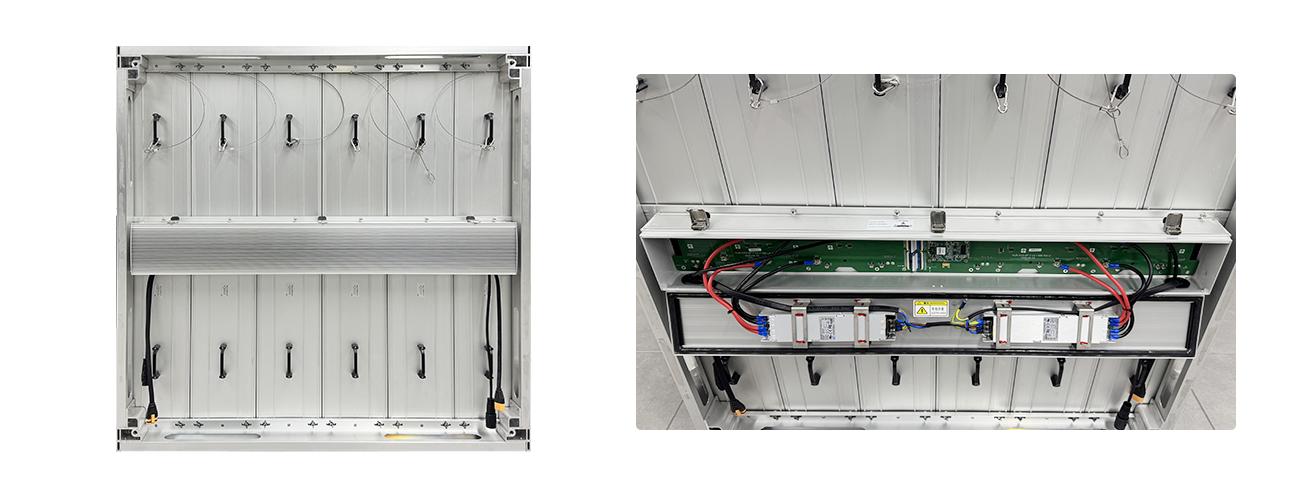

Integrated Power Box – All-in-one design. Hidden interfaces. Zero cable clutter. Clean front, clean back, clean install. Professional appearance with professional protection.

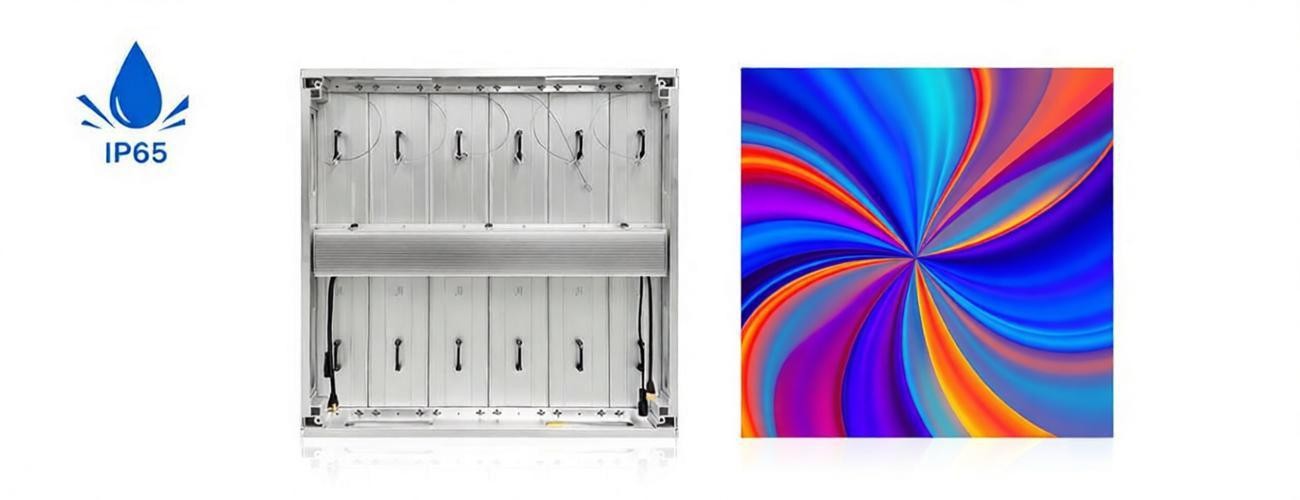

IP65 Dustproof & Waterproof – Front & Rear
Integrated alloy housing seals everything. Rain can't enter. Dust can't settle. Lightweight but tough. Install anywhere – wash it, weather it, trust it.

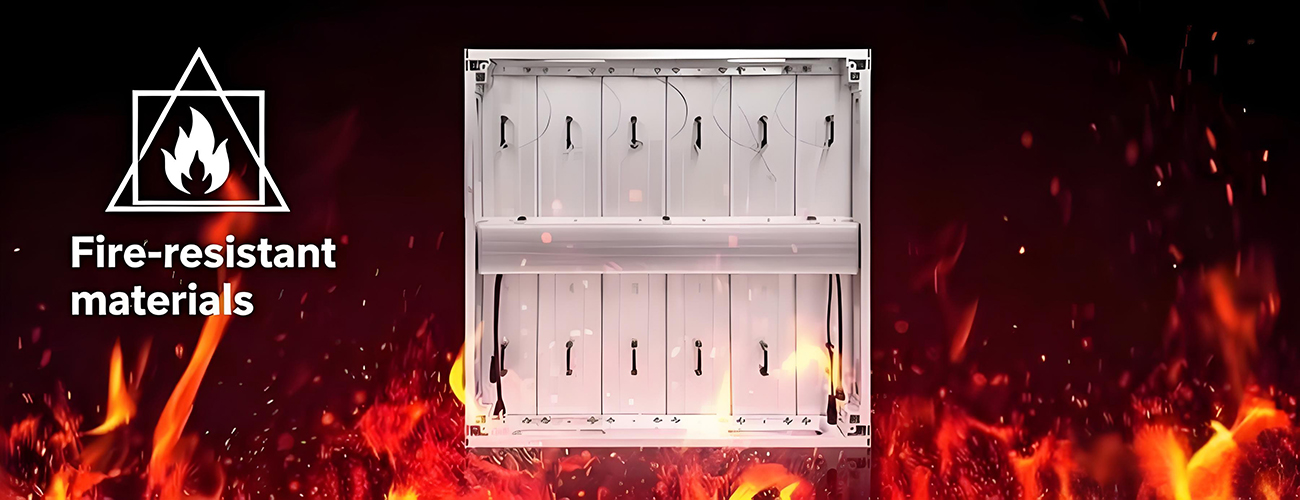

High-Level Safety Protection – V0 fire-resistant materials. Excellent dustproof + fireproof performance. Self-extinguishing. Code-compliant. Peace of mind included.

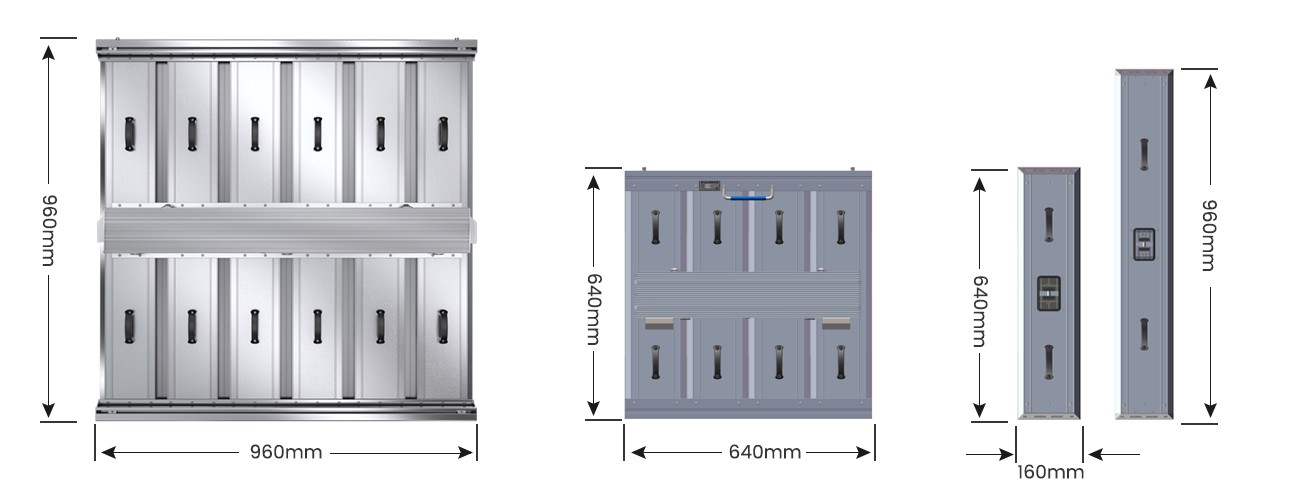

Customizable Sizes – Cabinets: 640×640 / 960×640 / 960×960. Modules: 160×640 / 160×960. Mix, match, and build any dimension. Perfect fit. Zero waste.

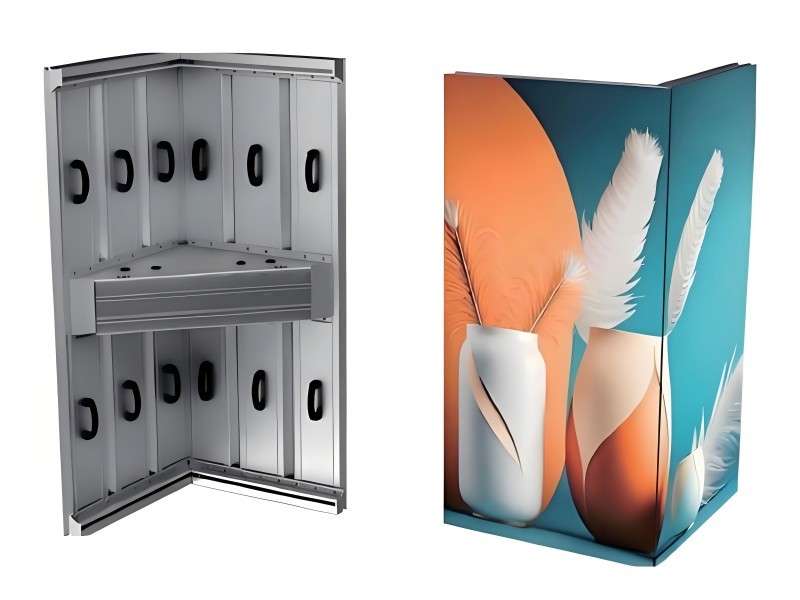

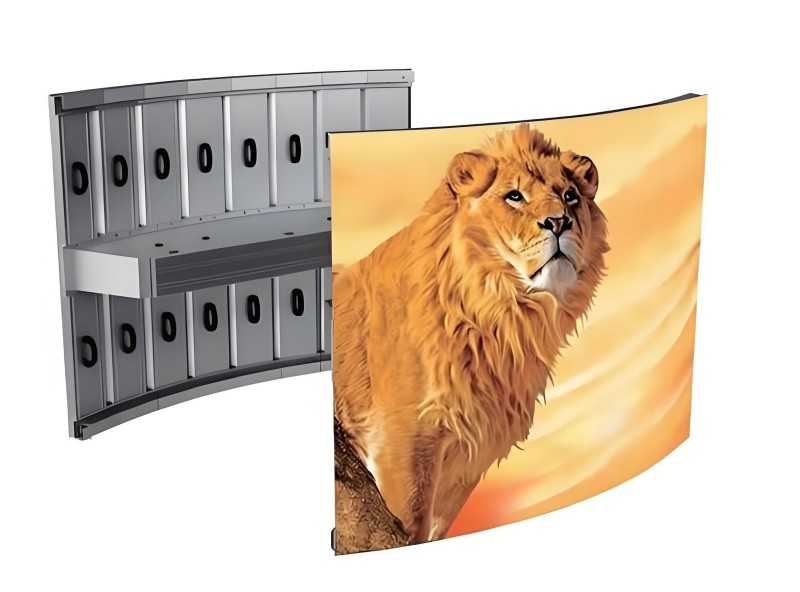

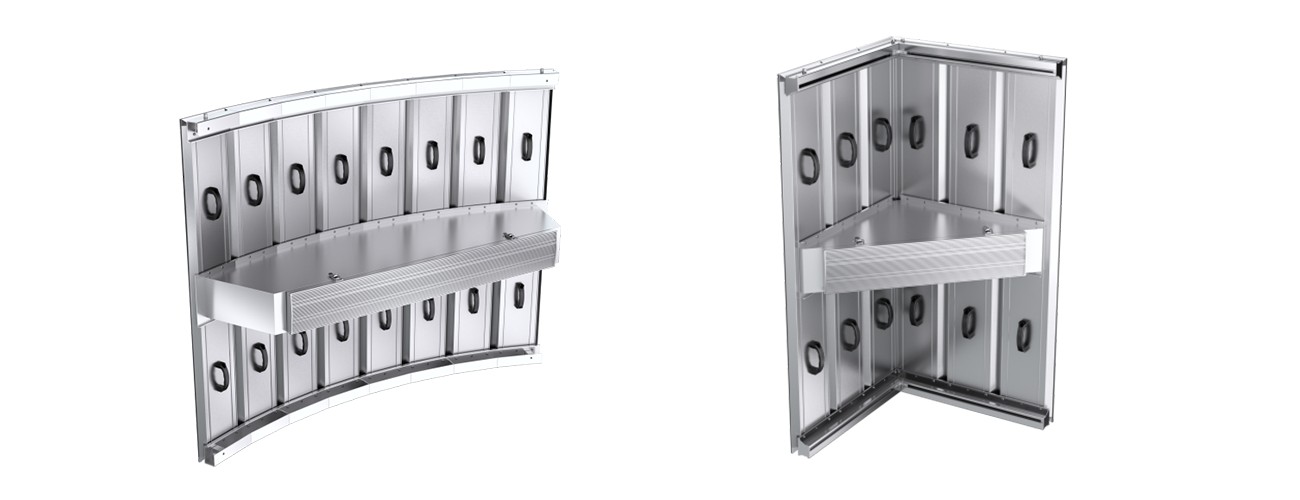

Creative Customization – Curved designs. Right-angle corners. Built for naked-eye 3D. Turn any building into a landmark. Flat is boring – go bold.
Ultra-Lightweight – <26KG/m². 40% lighter than competitors. Less structural stress. Lower shipping costs. Faster installation. Light weight, heavy performance.
Specifications
Cabinet size
640(W)*640(H)*80mm(T)
960(W)*640(H)*80mm(T)
960(W)*960(H)*80mm(T)
Cabinet resolution
256*256dots
208*208dots
384*256dots
312*208dots
240*240dots
192*192dots
144*144dots
120*120dots
96*96dots
Pixel pitch
2.5mm
3.076mm
2.5mm
3.076mm
4mm
5mm
6.67mm
8mm
10mm
Pixel sensity
160000dots/m²
105625dots/m²
160000dots/m²
105625dots/m²
62500dots/m²
40000dots/m²
22500dots/m²
15625dots/m²
10000dots/m²
LED specification
1415 SMD
1415 SMD
1415 SMD
1415 SMD
1921 SMD
1921 SMD
2727 SMD
2727 SMD
2727 SMD
Module size
160*640mm
160*640mm
160*640mm
160*640mm
160*960mm
160*960mm
160*960mm
160*960mm
160*960mm
Unit resolution
64*256dots
52*208dots
64*256dots
52*208dots
40*240dots
32*192dots
24*144dots
20*120dots
16*96dots
Weight
13kg±2kg
13kg±2kg
19kg±2kg
19kg±2kg
21.5kg±2 kg
21.5kg±2 kg
21.5kg±2 kg
21.5kg±2 kg
21.5kg±2 kg
Material
Aluminum
Maintenance mode
Front and rear maintenance
Best viewing distance
≥2.5m
≥3.076m
≥2.5m
≥3.076m
≥4m
≥5m
≥6.67m
≥8m
≥10m
Pixel configuration
1R1G1B
Best viewing angle
120°(H)/120°(V)
Brightness of while balance
≥4500cd/㎡
≥6000cd/㎡
Color temperature
3500-9300K adjustable
Correcting
Support correction
Deviation
≤3%
Homogeneity
≥97%
Max Power consumption
750W/㎡
Average power consumption
250W/㎡
Drive type
1/16 Scanning
1/13 Scanning
1/16 Scanning
1/13 Scanning
1/10 Scanning
1/8 Scanning
1/6 Scanning
1/5 Scanning
1/2 Scanning
Driving device
IC Constant Current driver
Working voltage
AC200-240V
operating environment
Outdoor
Refresh frequency
≥3840Hz
Framing frequency
50/60Hz
IP Grade
IP65
Storage temperature
-40℃~60℃
Working temperature
-20℃~50℃
Operation humidity
10%～90%
MTBF
≥5000 hours
Life span
≥50000 hours
Blind spot rate
≤1/10000
