Outdoor E Series

Category： Outdoor LED Display
outdoor
fixed installation
waterproof led
advertising led screen

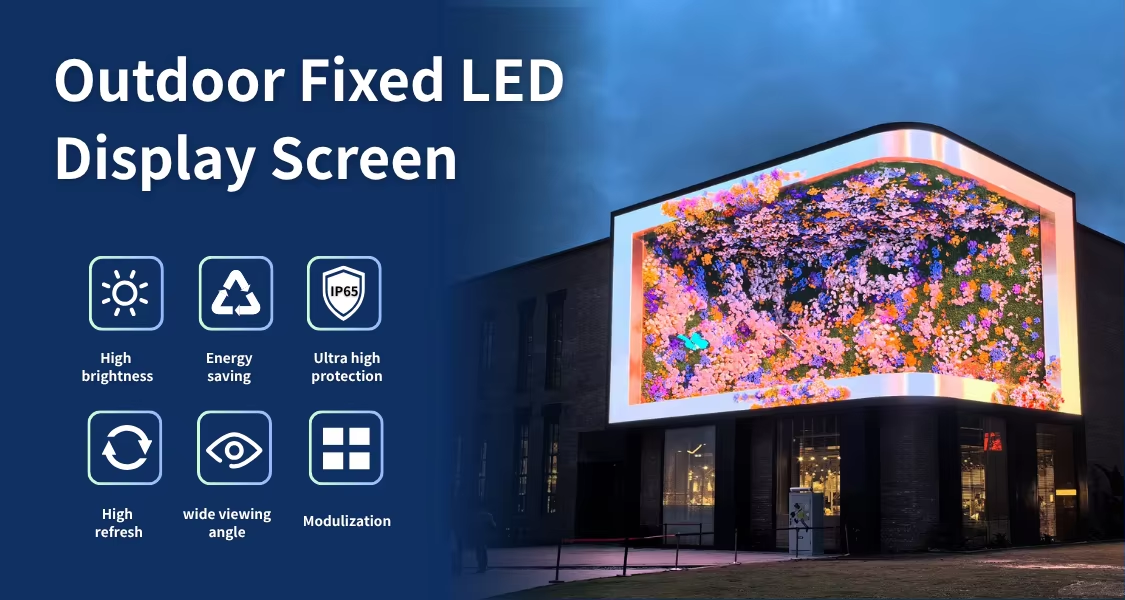

Product description：Permanent Outdoor Fixed LED Display. Built for durable, long-term installation with high weatherproof protection and brilliant visibility.
INQUIRY EMAIL

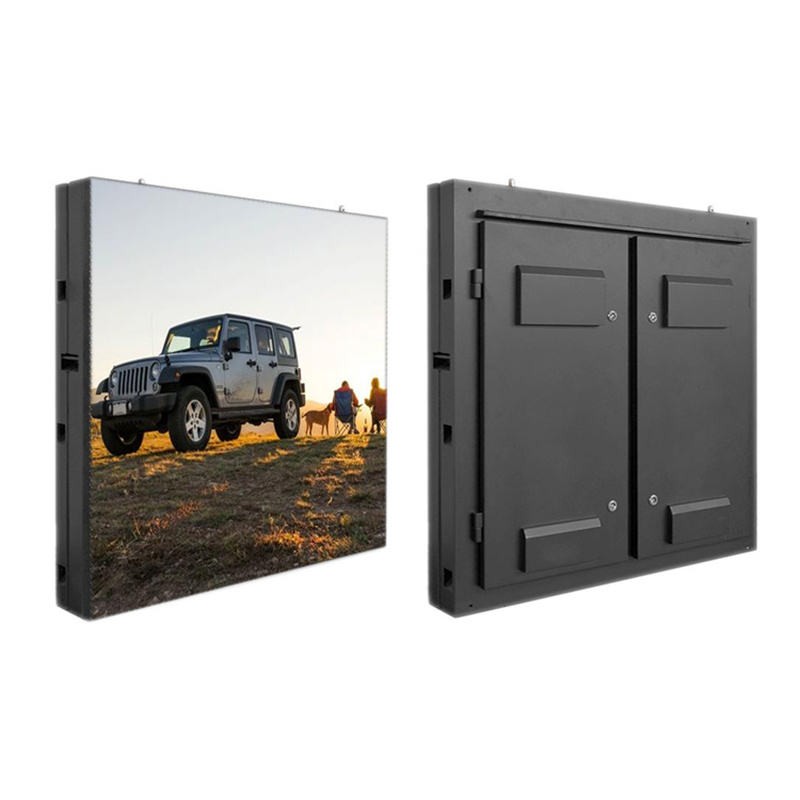

CONWIN Outdoor Fixed IP65 LED Screen For Advertising Billboard

- The SMD (3-in-1) LED package provides wider viewing angles and extremely close viewing distances.
- Advanced video processing produces crystal-clear, detailed images with smooth motion reproductions.
- High brightness,waterproof IP65, dust-proof, UV-proof, noise-free, endure high-temperature, corrosion resisting. Work stablely in 365 days 24 hours at any weather.
- Low power consumption, environmental protection and energy saving.

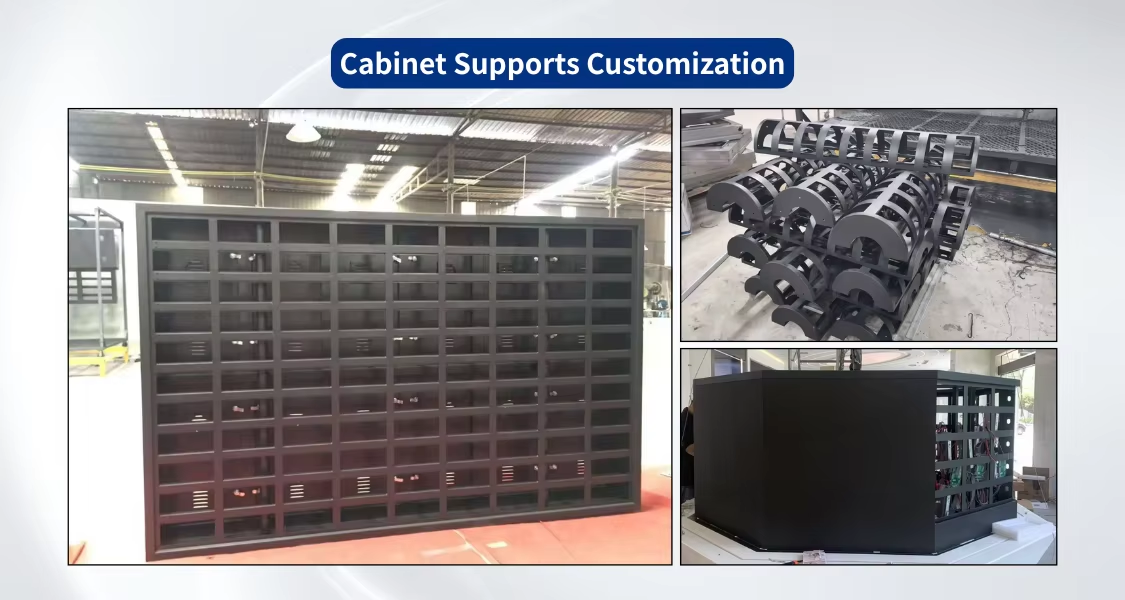

- Customized cabinet size, support any size.
- Full-depth image calibration in the factory and in the field provides for a uniform display picture.
- Integrates seamlessly with a variety of other video products.

High Waterproof Rating
When installed in outdoor areas, protection is a serious matter.
And we have made special waterproof （≥IP65）and dustproof designs for LED screens. Special guards protect it from environmental hazards.

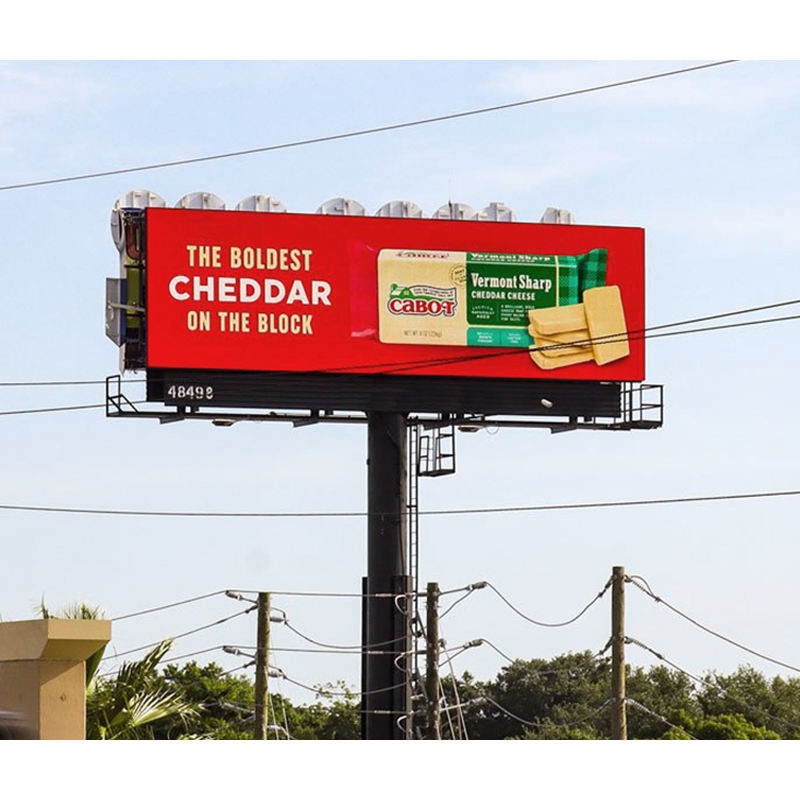

Outdoor LED Screen Application Cases

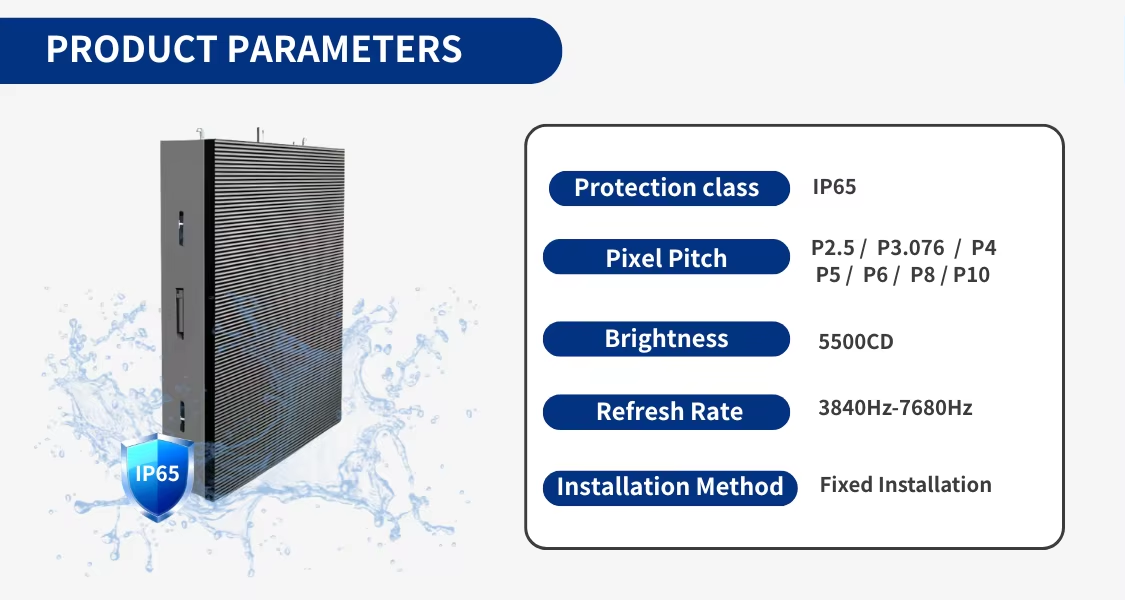

Specifications

Model	E-A2	E-A2.5	E-A3	E-A4	E-A5	E-A6	E-A8	E-A10
Pixel Pitch	2mm	2.5mm	3.0769mm	4mm	5mm	6.67mm	8mm	10mm
Pixel Configuration	SMD1211	SMD1415	SMD1921	SMD1921	SMD1921	SMD2727	SMD2727	SMD3535
Pixel Density	250000 pixels/m2	160000 pixels/m2	105625 pixels/m2	62500 pixels/m2	40000 pixels/m2	22500 pixels/m2	15625 pixels/m2	10000 pixels/m2

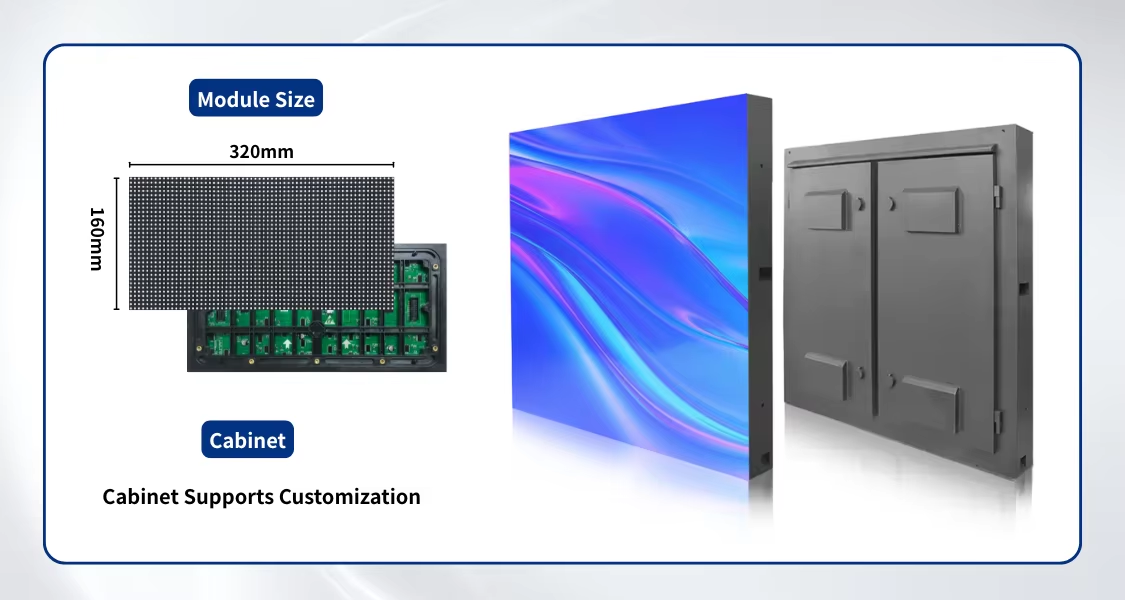

Module Size(mm)	160 x 160	320 x 160	320 x 160	320 x 160	320 x 160	320 x 160	320 x 160	320 x 160
Panel Dimensions (mm)	960 x960
Module Resolution	80 x 80	128 x 128	104 x 104	80 x 80	64 x 64	48 x 48	40 x 40	32 x 32
Cabinet Resolution	480 x 480	384 x 384	312 x 312	240 x 240	192 x 192	144 x 144	120 x 120	96 x 96
Panel Material	Cold steel
Weight per Cabinet	42kgs
Colors	281 trillion
Contrast Ratio	5,000 : 1
Aver Power Consumption	330 W /Sqm
Max Power Consumption	950 W /Sqm
IP Rating (Front/Rear)	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54
