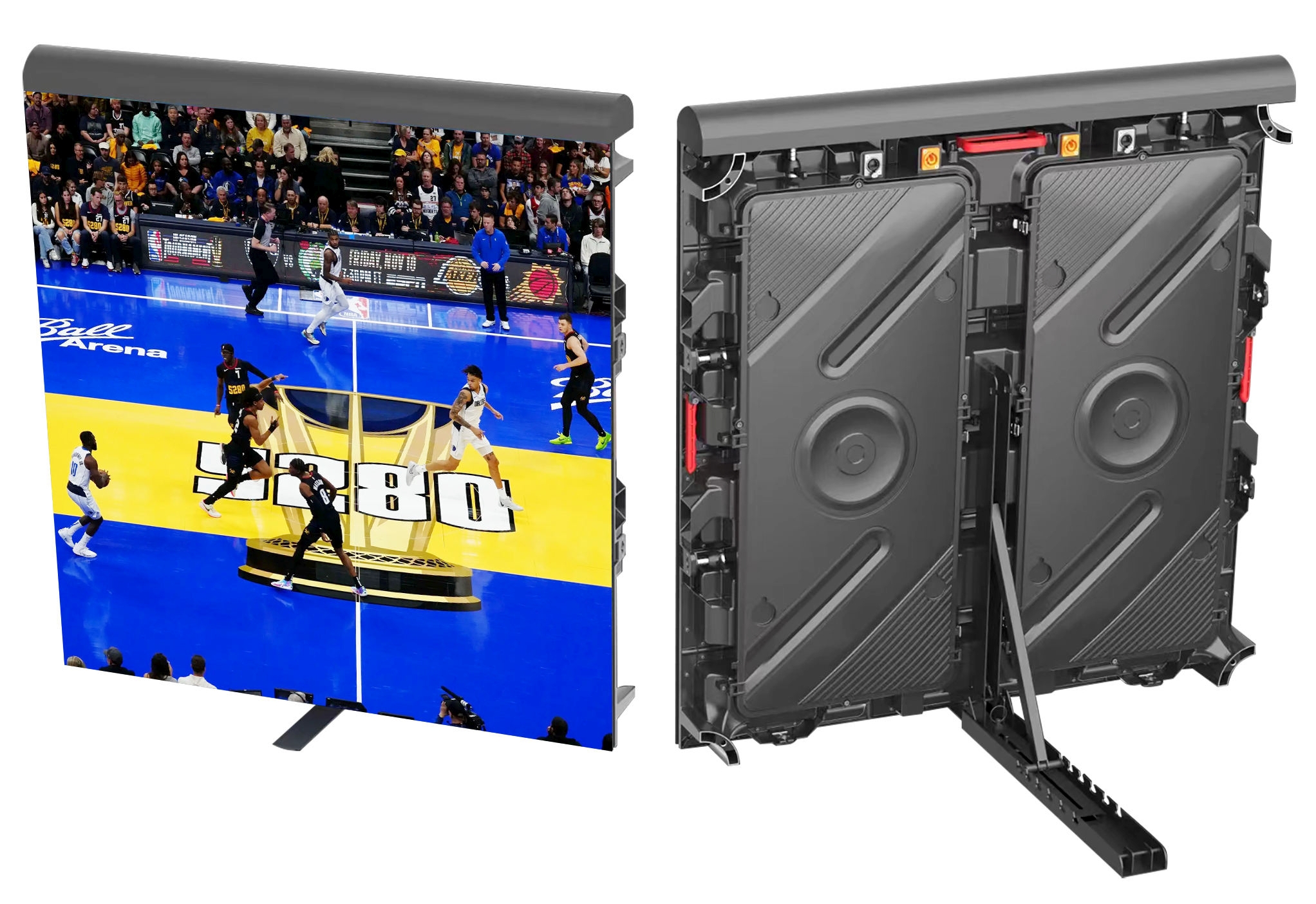

Outdoor Stadium LED Perimeter Screen

Product Item : Q10-S
Category： Sports LED Display
High brightness
Die-cast aluminum cabinet
Easy Installation & Maintenance
Lightweight
Product description：Football Stadium Bill Board Outdoor P10 High Brightness Stadium Perimeter Led Screen Commercial Advertising Led Display
INQUIRY EMAIL

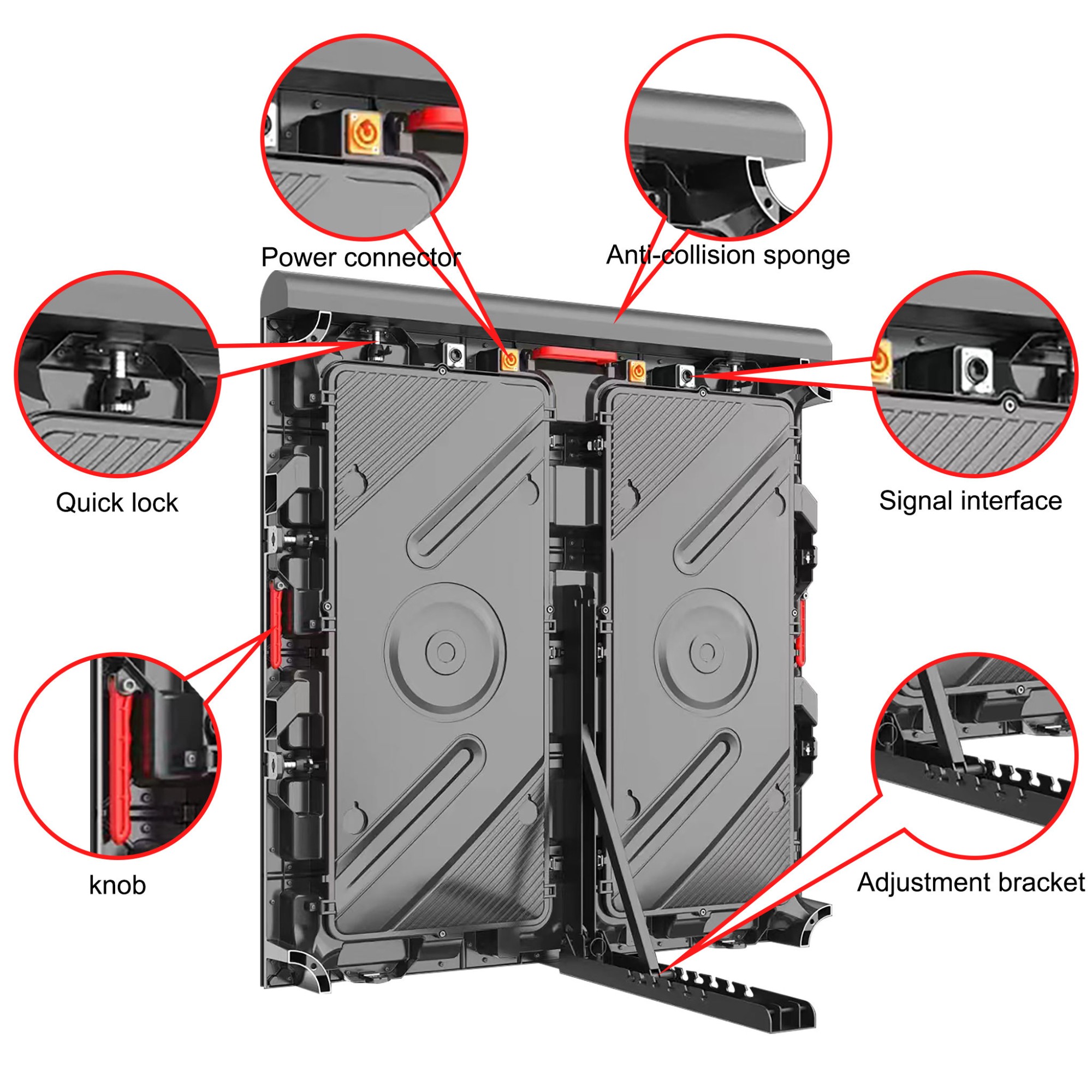

Outdoor IP65 LED Perimeter Screen Die-cast Aluminum Cabinet

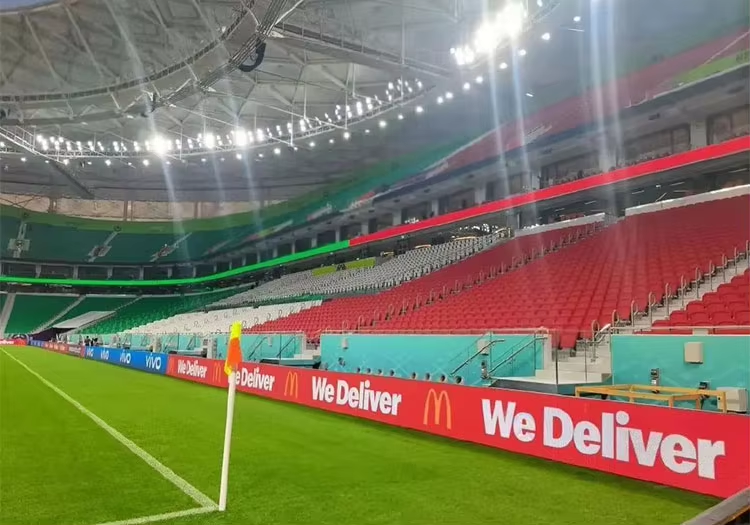

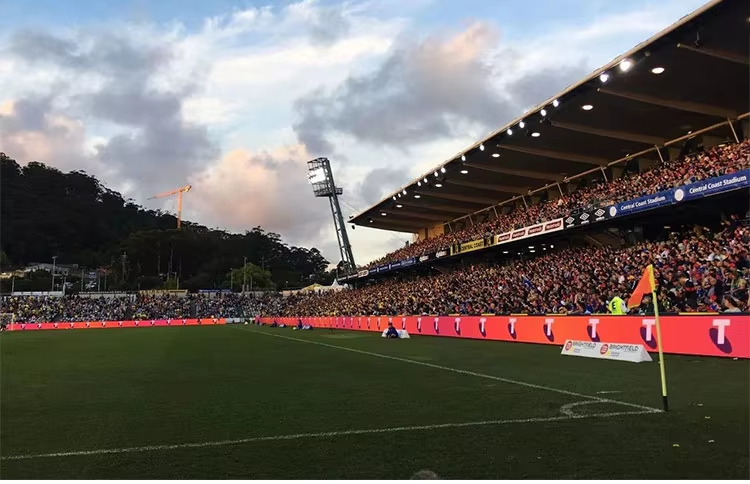

1) Waterproof stadium LED perimeter

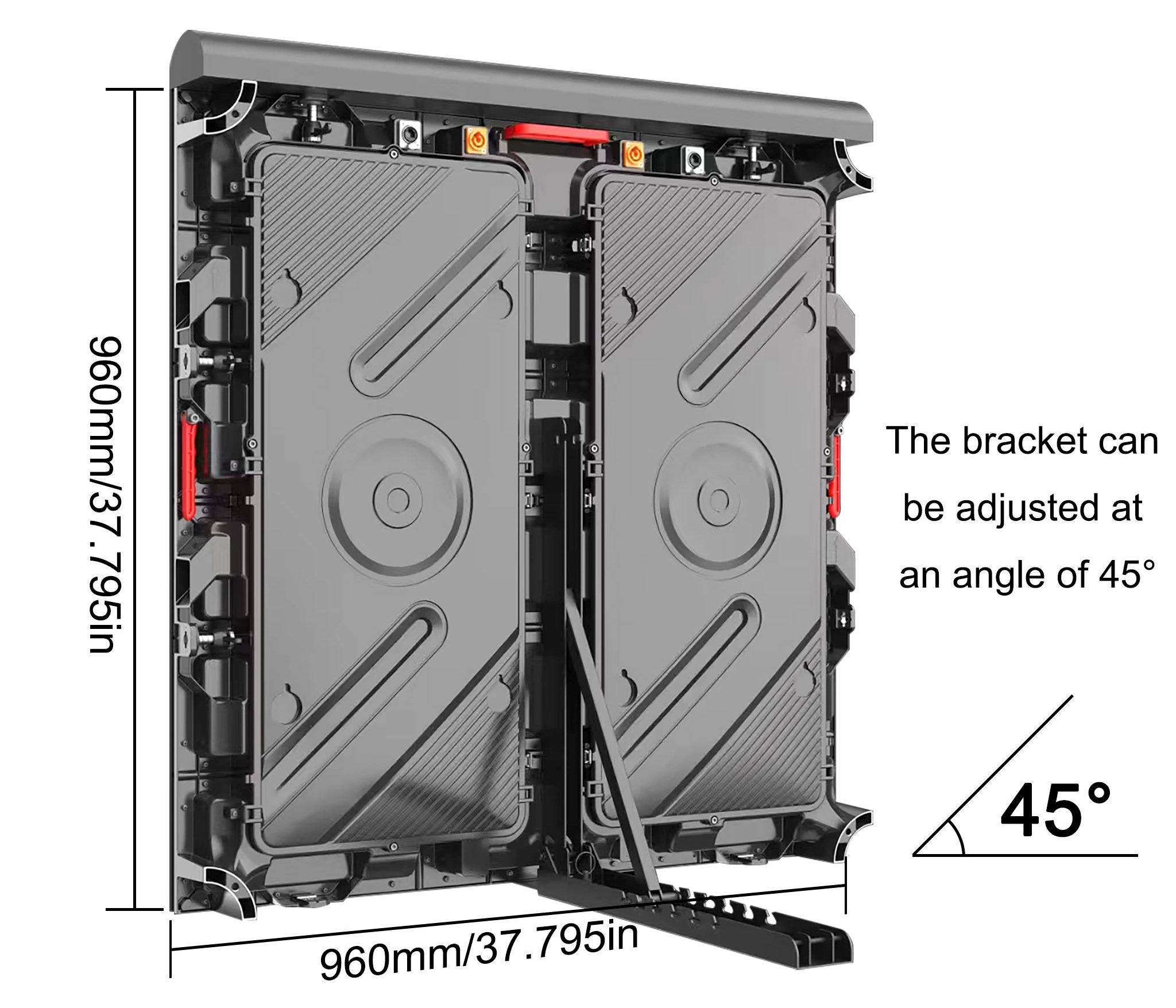

2) Adjustable bracket

3) Die-cast aluminum cabinet, durable and convenient during transportation

4) Fast assembly design

5) High brightness

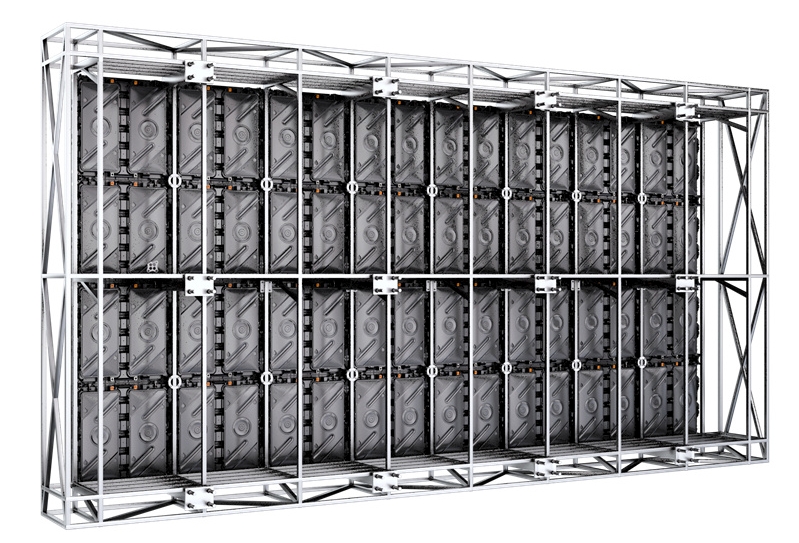

6) Various installation methods, also popular for outdoor billboard

Parameters


Product Name	P10 RGB outdoor led display
Product Model	Q10
Pixel Pitch	P10
LED Arrange	SMD3535 1R1G1B
Module Size	320x160 mm
Module Resolution	32x16 pixels
Drive Scan	1/2 scan
Cabinet Size	960x960 mm
Cabinet Resolution	96x96 pixels
Material	Die-cast aluminum
Weight	28 KGS
Pixel Density/sqm	10000 pixels
IP Rate	IP65
Power Consumption/Cabinet	Average: 320W Maximum: 800W
Brightness/sqm	6000 nits
View Angle(H/N)	120/120
Input Voltage	100~240V, 50/60HZ
Frame Frequency	> 60 Hz
Gray Scale/bit	16 bits
Refresh Rate	3840HZ
Lifespan	100000 hours
MTBF (Mean time between failures)	10000 hours
Working Temperature	-20℃~ +65 ℃
Humidity	10% ~ 95%
Brightness Control	255 degree by software
Color Processing	(1024)×G(1024)×B(1024)
Control Method	Synchronous/Asynchronous
Software Brand	Novastar, Linsn or Colorlight
