Outdoor Aluminum LED Screen IP66 For Advertising Billboard
-Die-Casting Aluminum design: High fire protection rate, Can get the TUV of 5VB fire protection certification
-Special waterproof design，up to IP66
-Full-Aluminum design，with special grain design,good heat-dssipation
-Creating circuit design, high effective rate , Brightness can range from 6500nits to 10000nits
-Full front & rear maintenance design, easy install and save installation space
-Lightweight design, 30kg/㎡，thickness is only 77mm

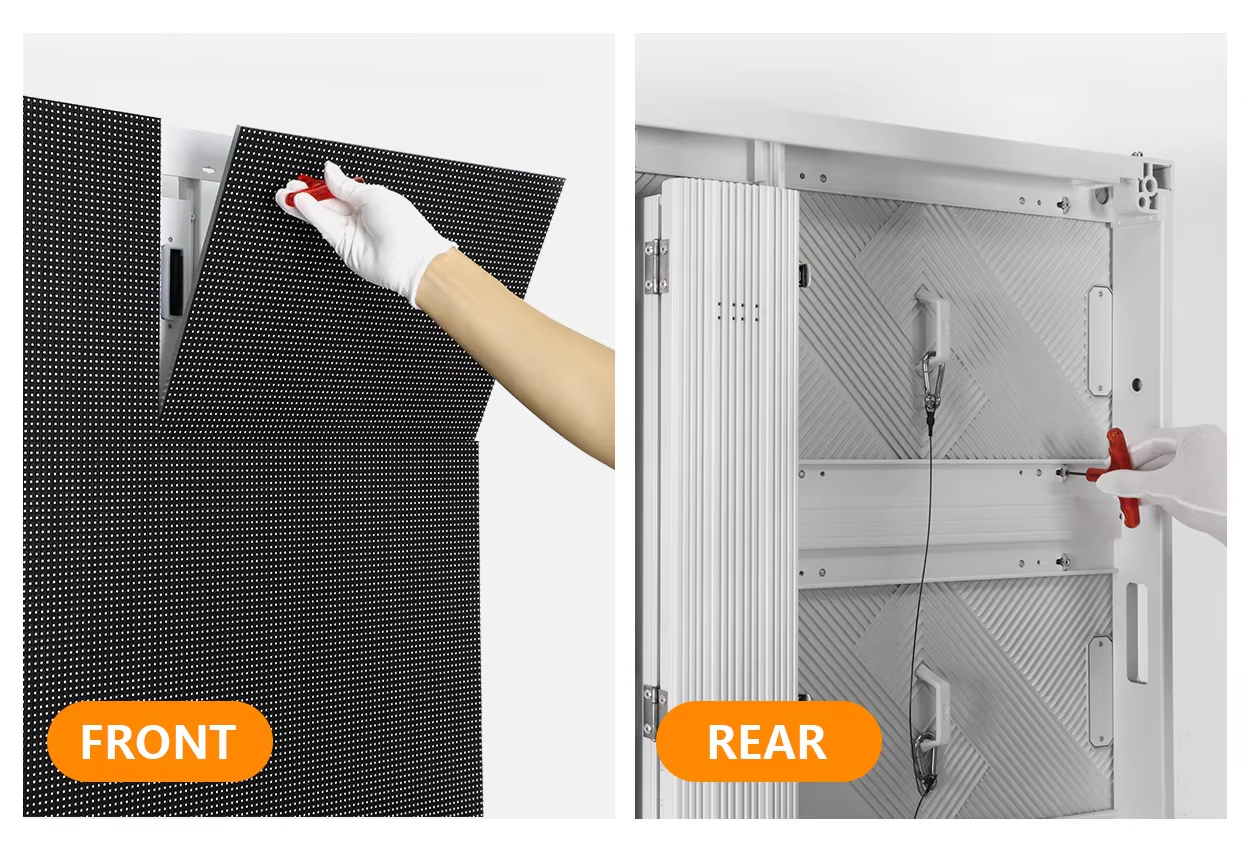

Front and Rear Service
The dual service mode of front and back design saves your maintenance cost, convenient installation and saves space. The LED panel and power box can be assembled and disassembled easily and quickly.
High brightness Clear imaging
Brightness 10000cd/m2,Stable and Reliable perform high refresh rate and high grey scale,which deliver an excellent visual effect.
Specification
Pixel Pitch
5.7mm
6.66mm
8mm
10mm
LED Configuration
SMD2727
SMD2727
SMD2727
SMD2727
Pixel Density
30625dot/m2
22500dot/m2
15625dot/m2
10000dot/m2
Module size
480*320mm
480*320mm
480*320mm
480*320mm
Module Resolution
84*56 dot
72*48 dot
60*40 dot
48*32dot
Cabinet Size
960*960*77mm
Cabinet Resolution
168*168dot
144*144dot
120*120dot
96*96dot
Cabinet Weight
27kg
IP Rating ( front/back)
IP66
Brightness Intensity
>6500 CD/m2
Viewing Angle (H/V)
140°/140°
Gray Scale
14bit
Max.Power Consumption
650W/㎡
Ave.Power Consumption
200W/㎡
Refresh Frequency
≥3840HZ
Operation Power
AC100~240 50/60HZ
Operating Temperature
-20℃~+50℃
Operating Humidity
10~95% RH
Operating Life
100,000hours
