CONWIN Curved Rental Events Never Black Led Screen
Features Description
- ±45° Ultra flexible
- High precision design
- 700-4500 high brightness
- Ultra-light design
- 3840Hz High refresh
- Quick Assembly and Disassebmly
Unique fast lock design, the upper and lower cabinet connection can be completed in only one second
- Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device, concave and convex 10 degrees of adjustment to meet the different arc connection applications.

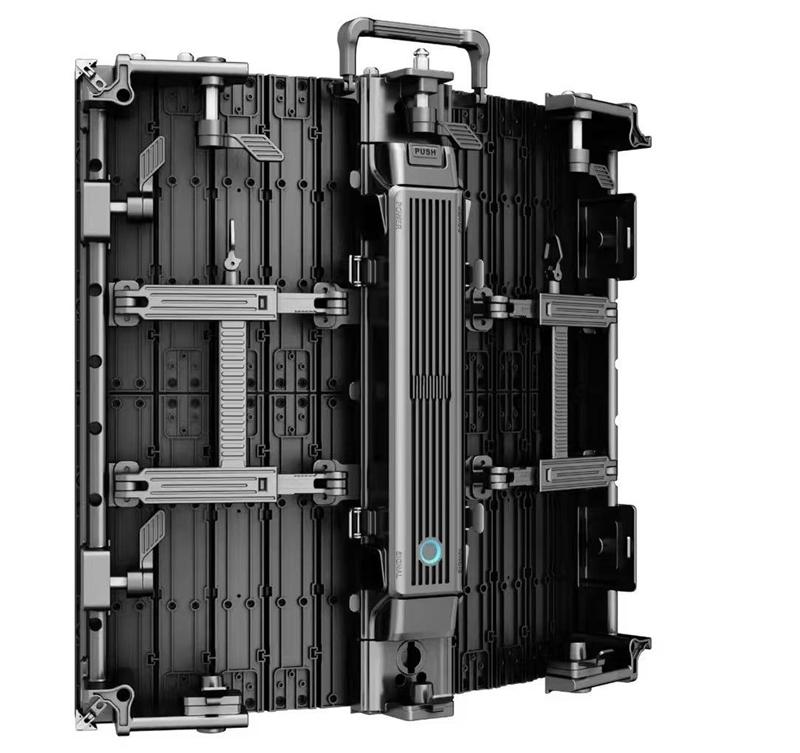

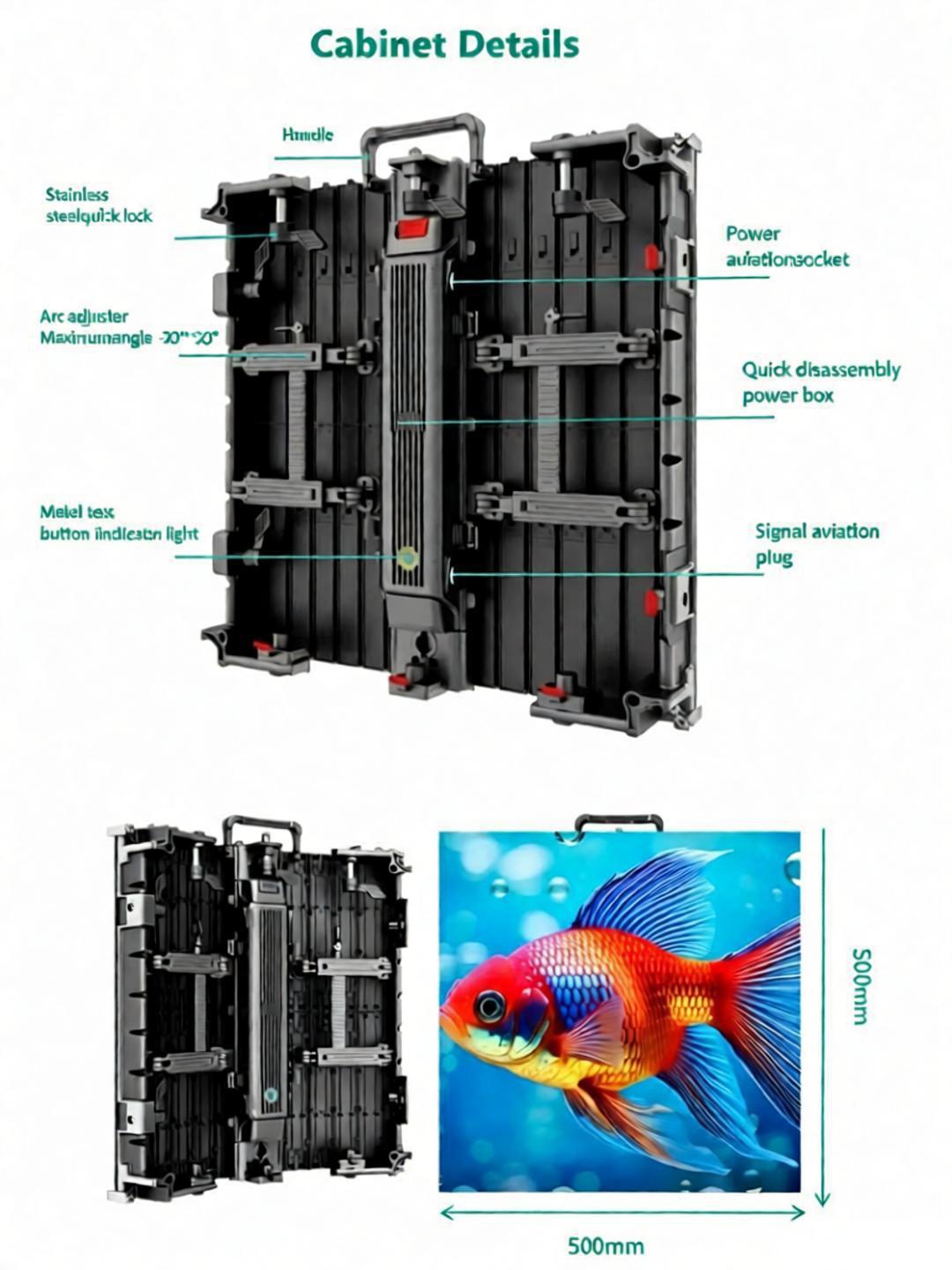

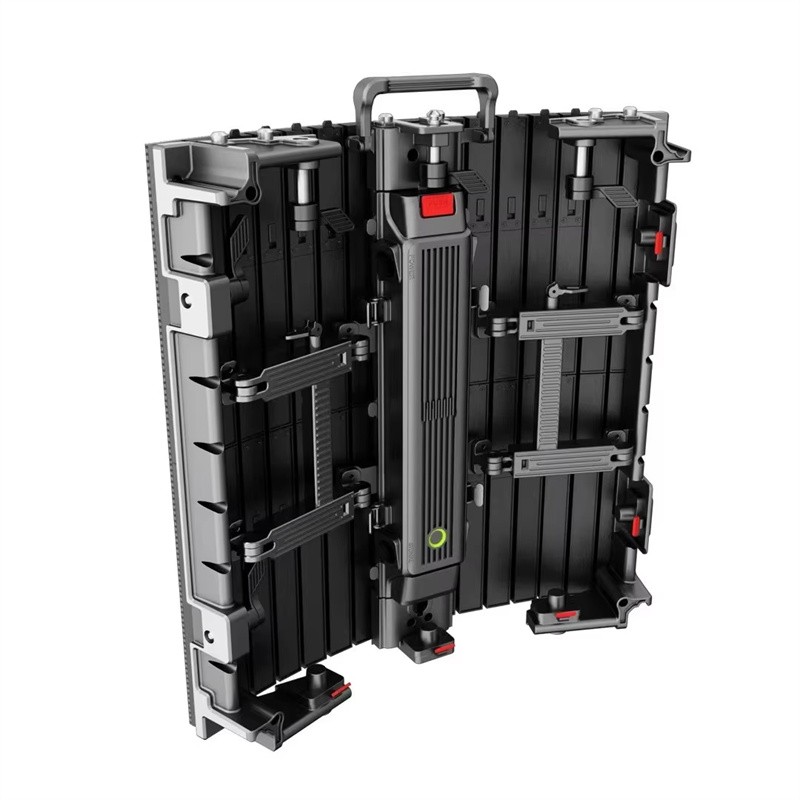

- Slim and Light Weight Die Casting Aluminum Cabinet Design

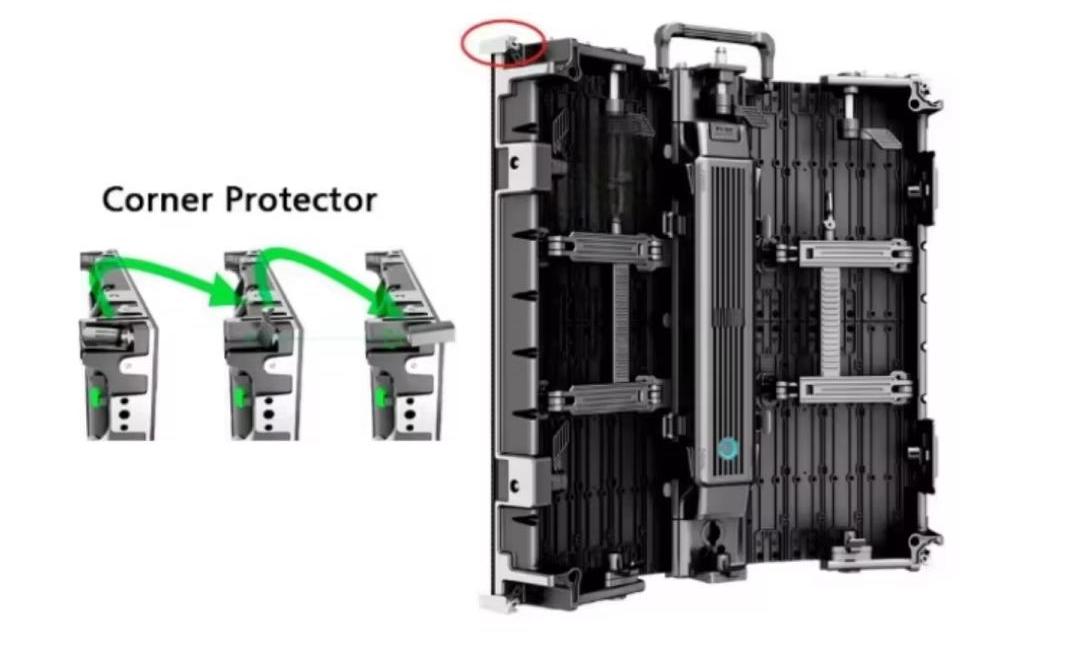

Anti-collision design
Rental LED display is designed with four corner guards to effectively prevent damage to the LED during transportation, installation, operation and disassembly

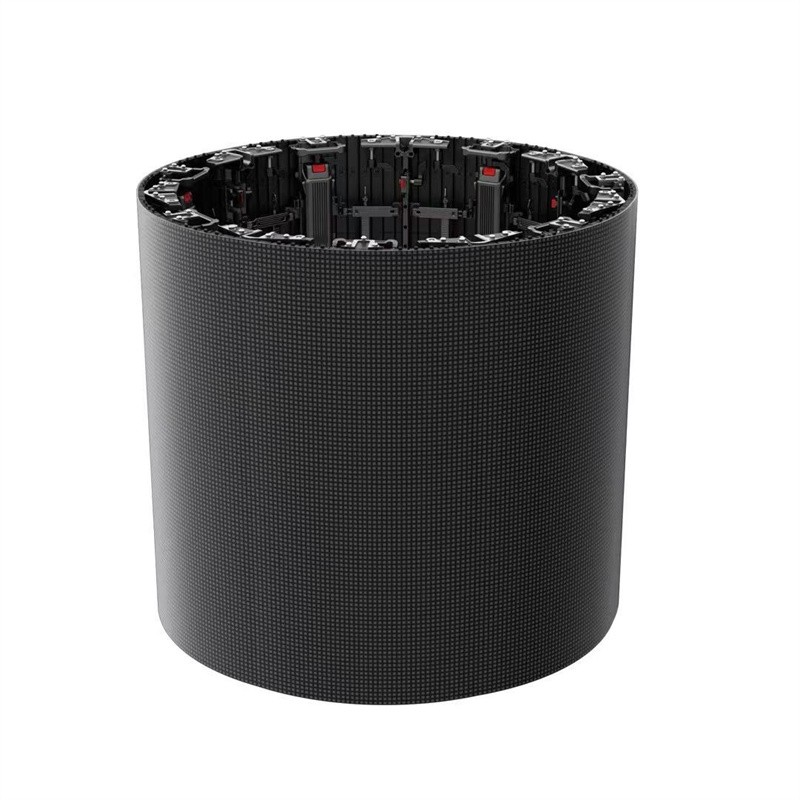

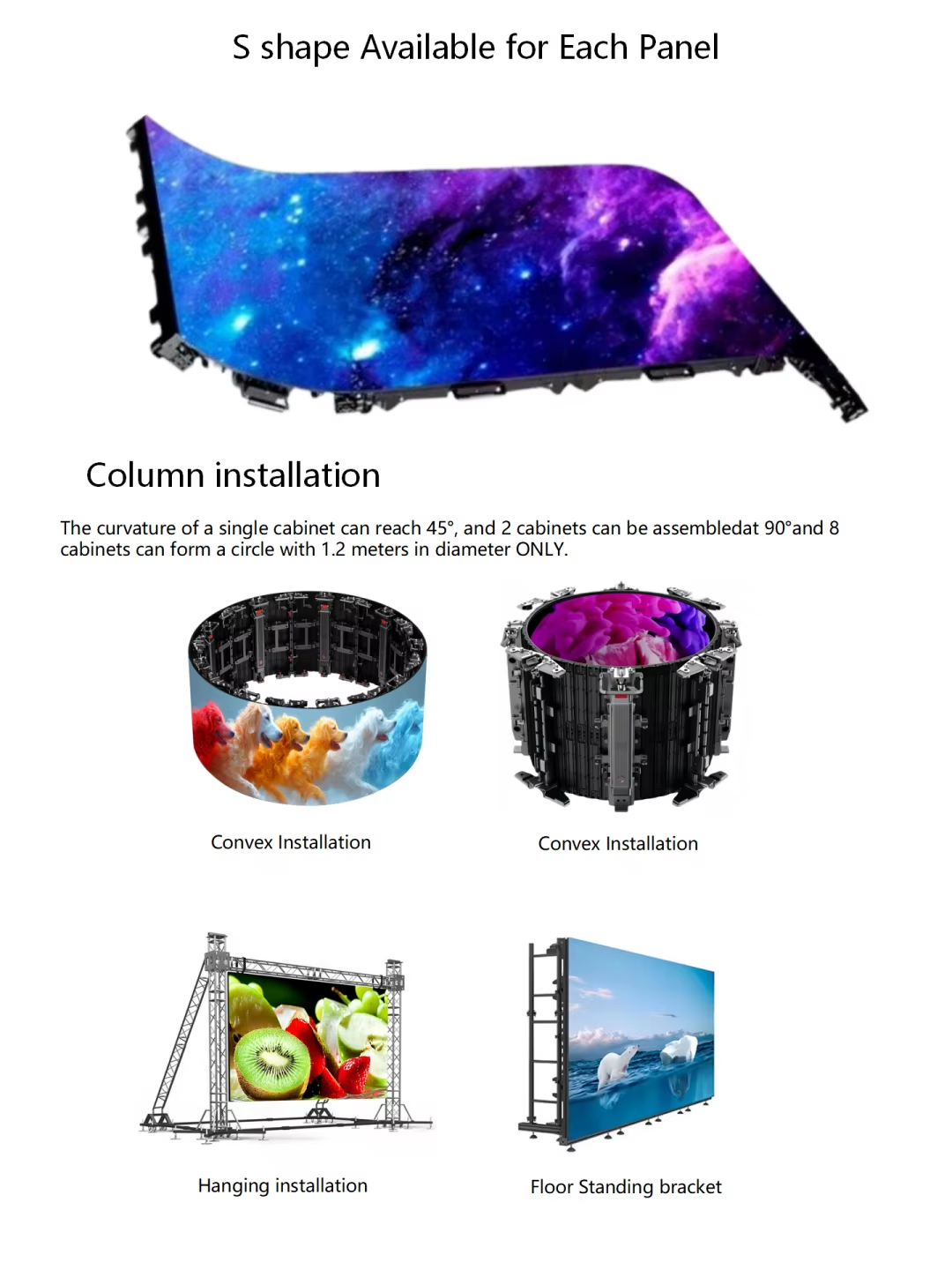

Creative installation
The ultra-curved cabinet can be easily assembled into various creative shapes

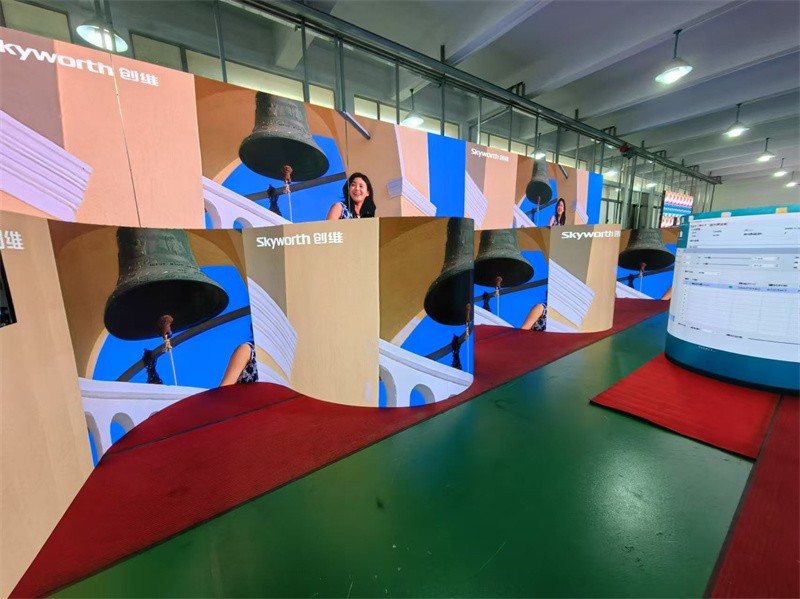

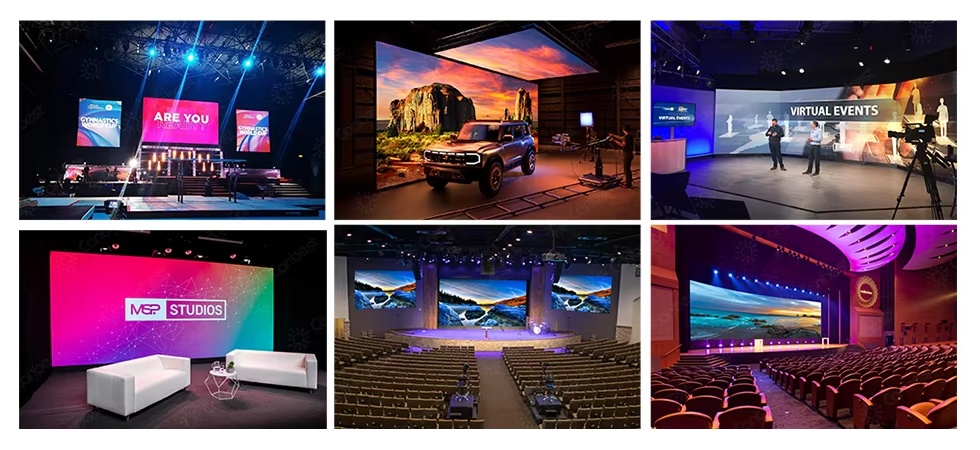

Case Reference
Specifications
Pixel pitch (mm)
P2.604(indoor)
P2.976(indoor)
P3.91(indoor)
P2.976(outdoor)
P3.91(outdoor)
Lamp model
SMD1515
SMD2020
SMD2020
SMD1415
SMD2020
Module pixel resolution(dots)
192*192
168*168
128*128
192*192
128*128
Module size(mm)
250*250
250*250
250*250
250*250
250*250
Pixel density (dots/m²)
147474
112896
65410
147474
65410
Brightness(nits)
700
700
700
4200
4200
white color temperature(°)
6000~10000
6000~10000
6000~10000
6000~10000
6000~10000
Viewing angle(°)
H:160V:140
H:160V:140
H:160V:140
H:160V:140
H:160V:140
Cabinet Size
500*500
500*500
500*500
500*500
500*500
Cabinet material
Die-casing aluminum
Die-casing aluminum
Die-casing aluminum
Die-casing aluminum
Die-casing aluminum
Panel weight
7.5KG
7.5KG
7.5KG
7.5KG
7.5KG
Grey scale
14Bit
14Bit
14Bit
14Bit
14Bit
Frame frequency
60Hz/50Hz
60Hz/50Hz
60Hz/50Hz
60Hz/50Hz
60Hz/50Hz
refresh rate(Hz)
3840
3840
3840
3840
3840
Driving method
1/32s
1/28s
1/16s
1/21s
1/16s
Working Voltage(V)
AC100-240V
AC100-240V
AC100-240V
AC100-240V
AC100-240V
Input Power(Hz)
50/60
50/60
50/60
50/60
50/60
Max Power consumption/panel(w)
480
480
480
480
480
Power consumption/panek(w)
160
160
160
160
160
Lifespan(H)
100000
100000
100000
100000
100000
IP Level
IP31
IP31
IP31
IP65
IP65
