Film LED Screen

Product Item : FL6
Category： Transparent LED Screen
film led screen
transparent led screen
glass led screen
window led screen
Product description：Transparent LED Film Manufacturer. Ultra-thin, high-brightness see-through displays for retail, exhibitions, and corporate lobbies.
INQUIRY EMAIL

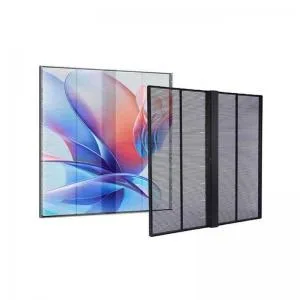

CONWIN Transparent LED Film Screen For Advertising

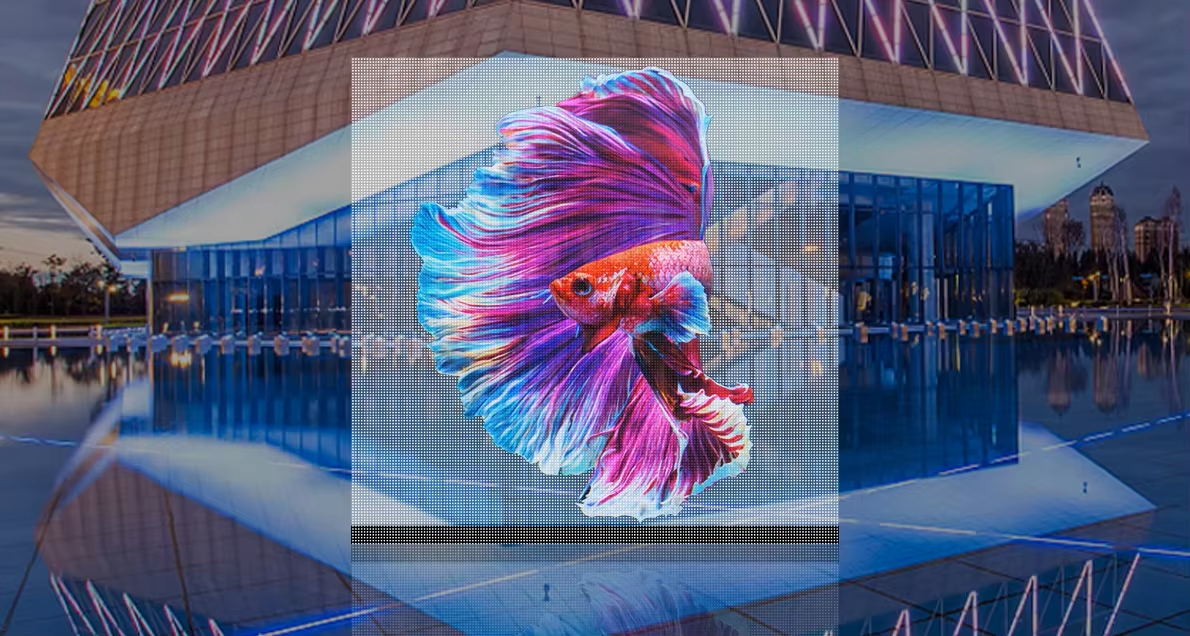

As high as 95% transparency -- No PCB Design Old transparent Galss Led Screen with Strip PCB visible,now with cutting-edge invisible technology to make PCB wires invisible.then led film panel can reach as high as 95% transparency.Main Features:
1. Great transparency from 95%
2. High brightness 200-2500 nits for different application

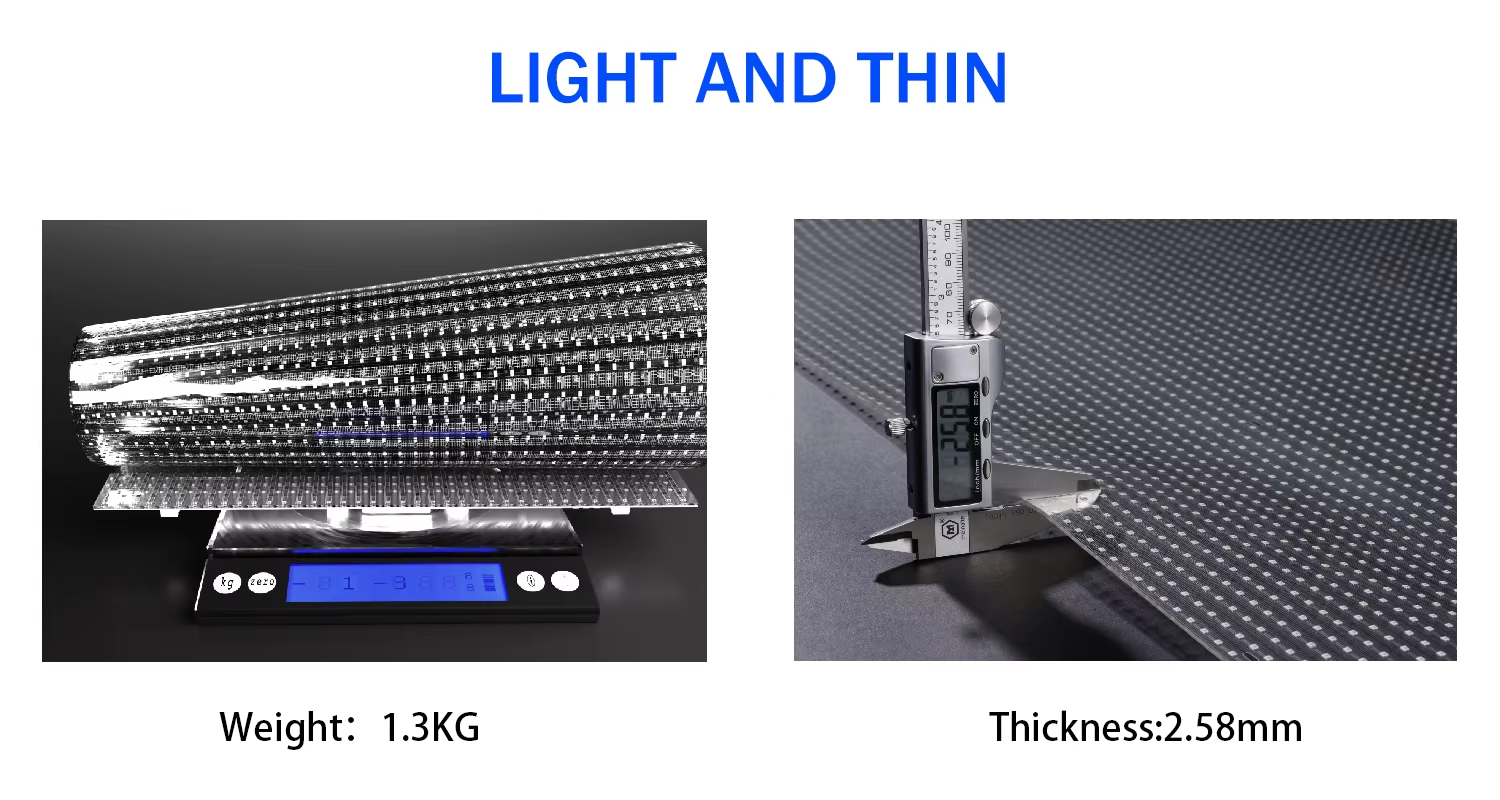

3. Ultra light and thin cabinet , save your transportation cost
4. Good daylighting and delicate decoration , Light,thin, strong structure , Super thin design with only 1.2mm thickness
5. No need to change any Building Structure for installation.

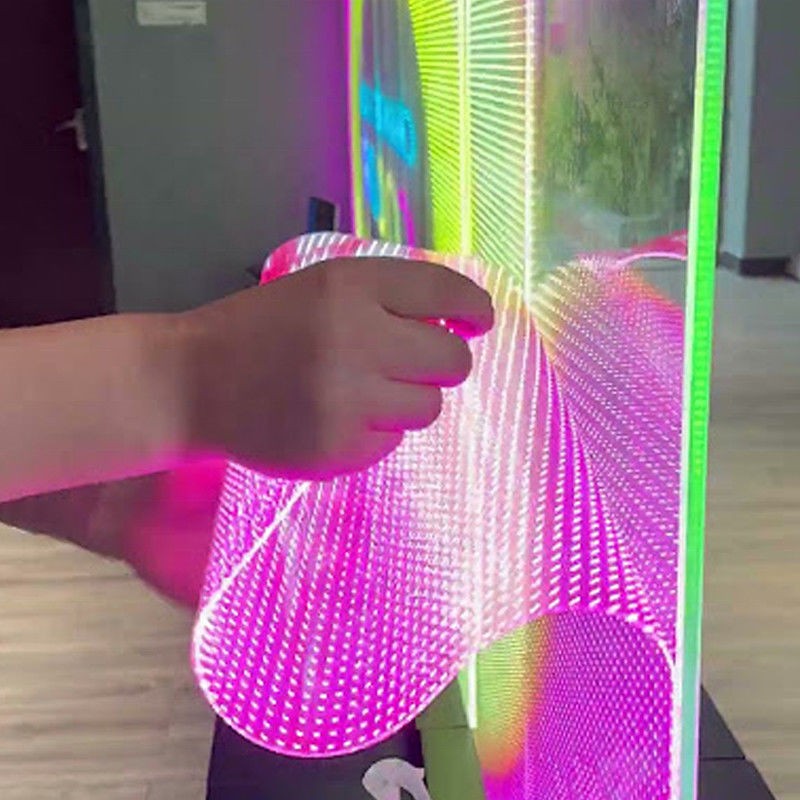

6. Easy to install on any existing glass surface using its self-adhesive transparent film. As it is soft and flexible. So works on a wide range of curved glass and round shape surfaces.

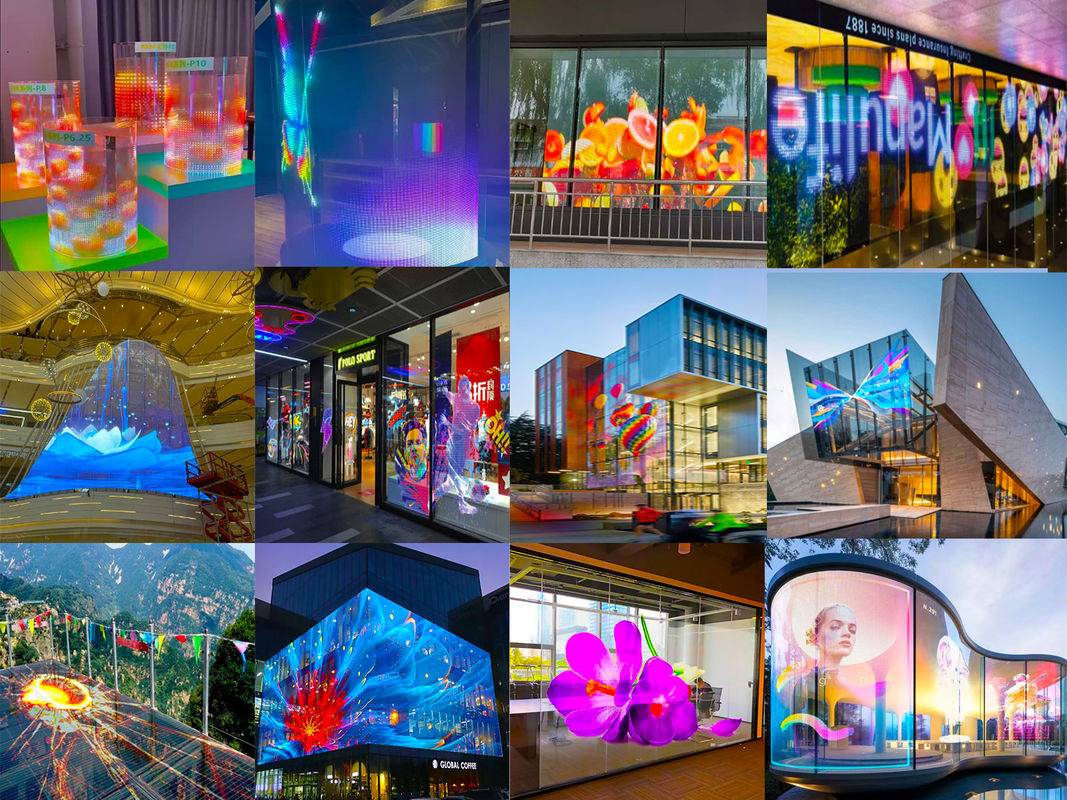

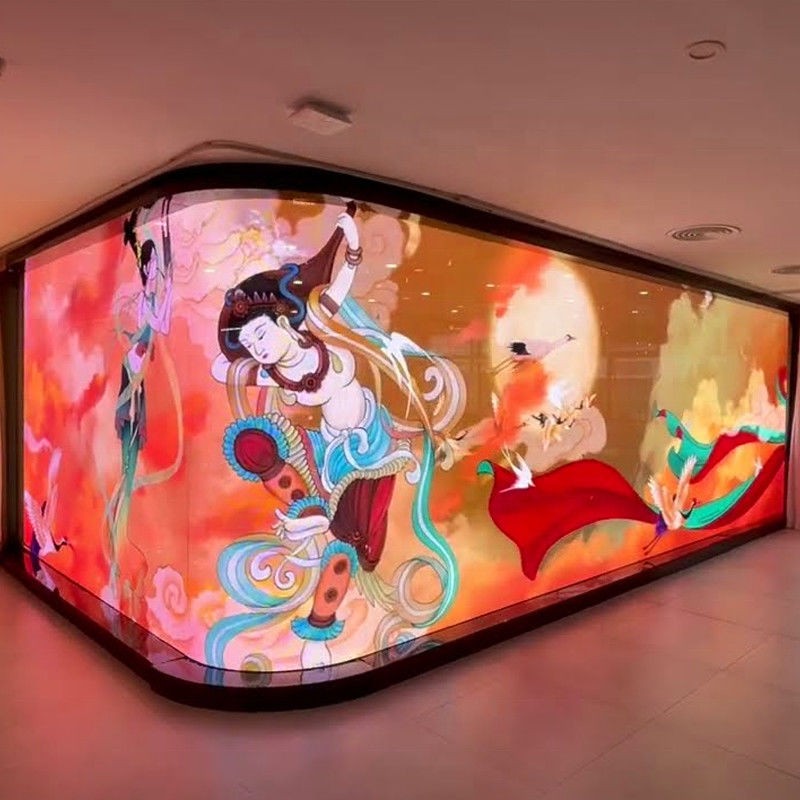

Case Reference

Specifications

Pixel Pitch（mm）	P4	P6	P8	P10	P20
Module Size	1000*240mm
Pixel Pitch(mm)	4*4mm	6*6mm	8*8mm	10*10mm	20*20mm
Pixel Density(dot/㎡）	62500	27889	15625	10000	2500
Module Resolution(dots)	175*60	164*40	125*30	100*24	50*12
Transparency	85%	85%	85%	85%	90%
Screen Brightness(nits)	3000	1000~3000	1500~4000	1500~4000	1500~3000
Module Weight	3.5KG/sqm
Protection	IP30
Refresh Rate	1920~3840Hz
Power supply requirement	AC100~240V 50Hz
Working Temperature	-20℃~40℃
Peak power	400W/㎡
Average Power	120/㎡
Thickness	2.5mm
Drive Mode	Static
Gary Level	16bit
