Holographic Led Screen

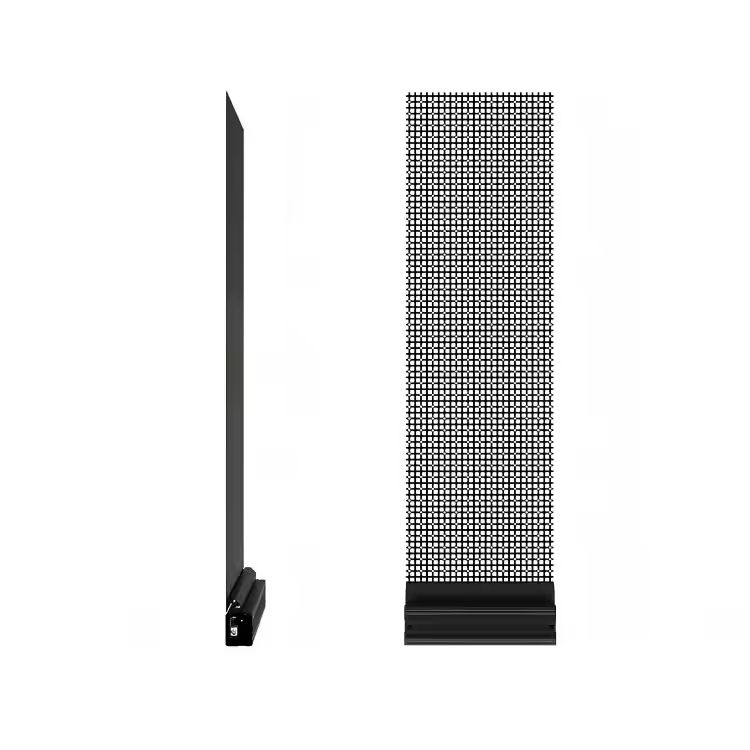

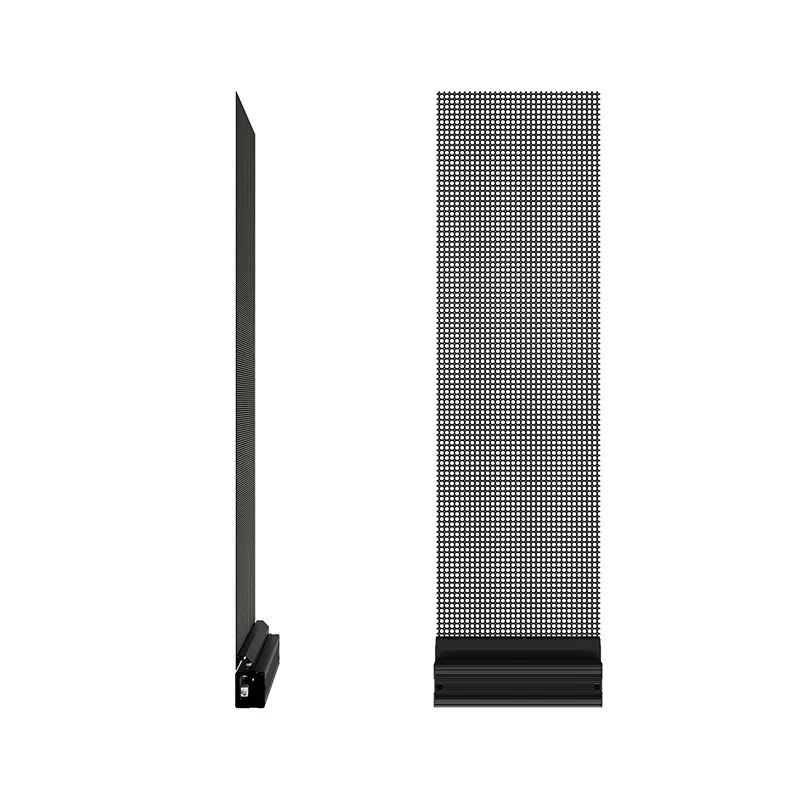

Transparent P3.91 Holographic Led Screen

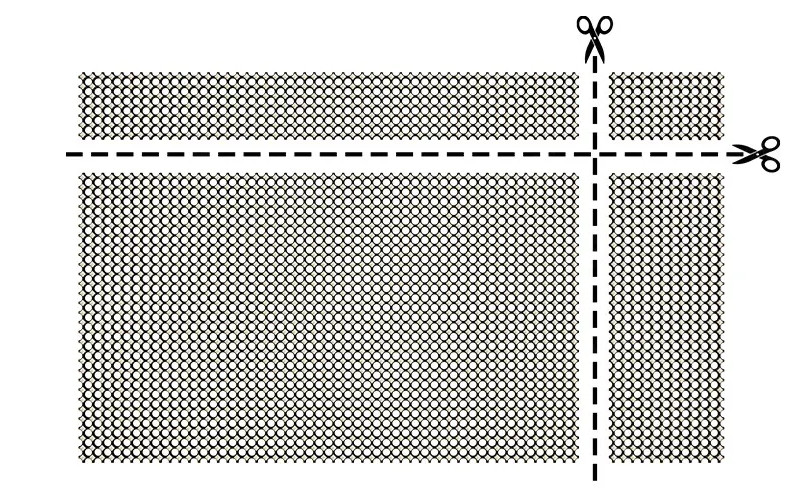

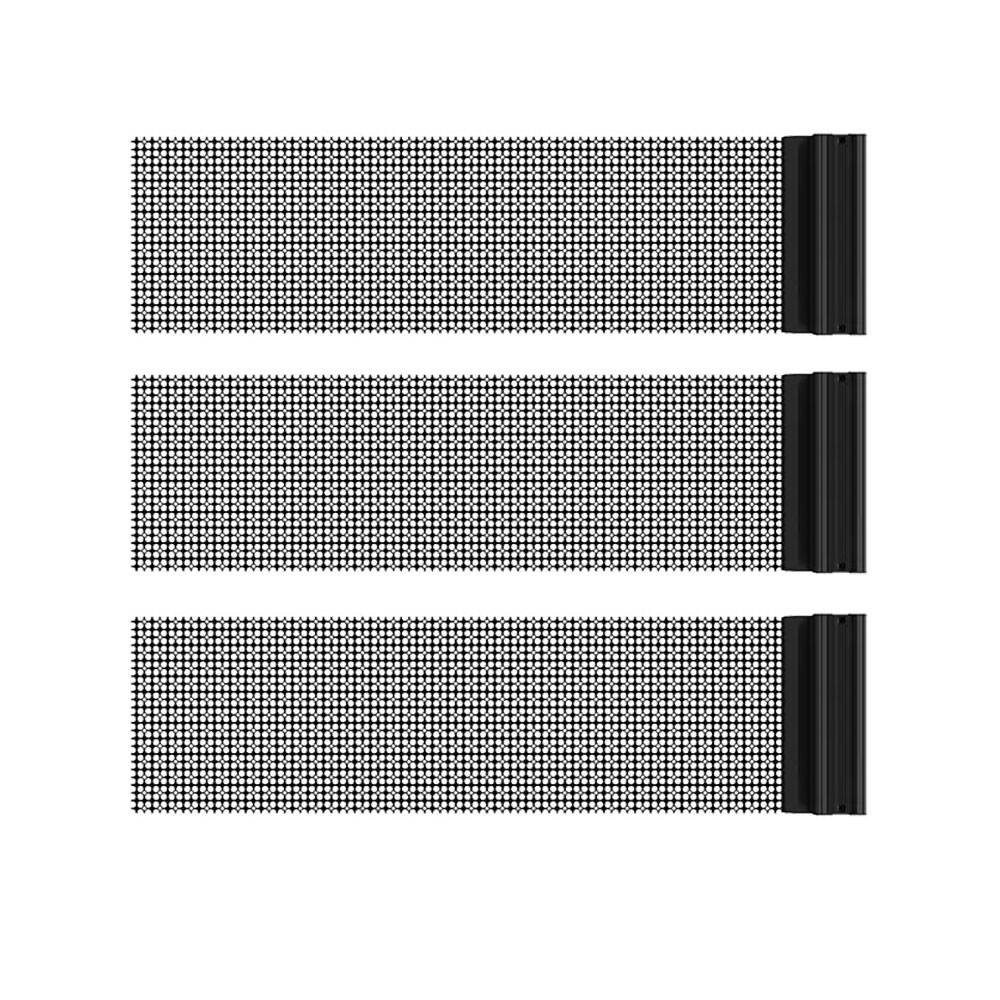

Support Any Size Cropping
The product supports point-by-point cutting and can be applied to curtain walls of various shapes and sizes

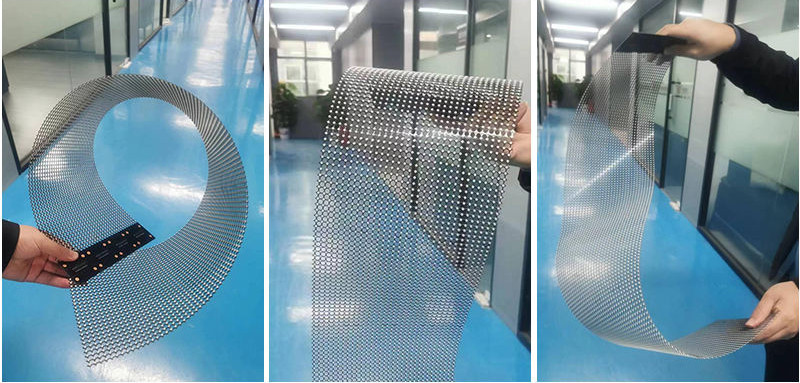

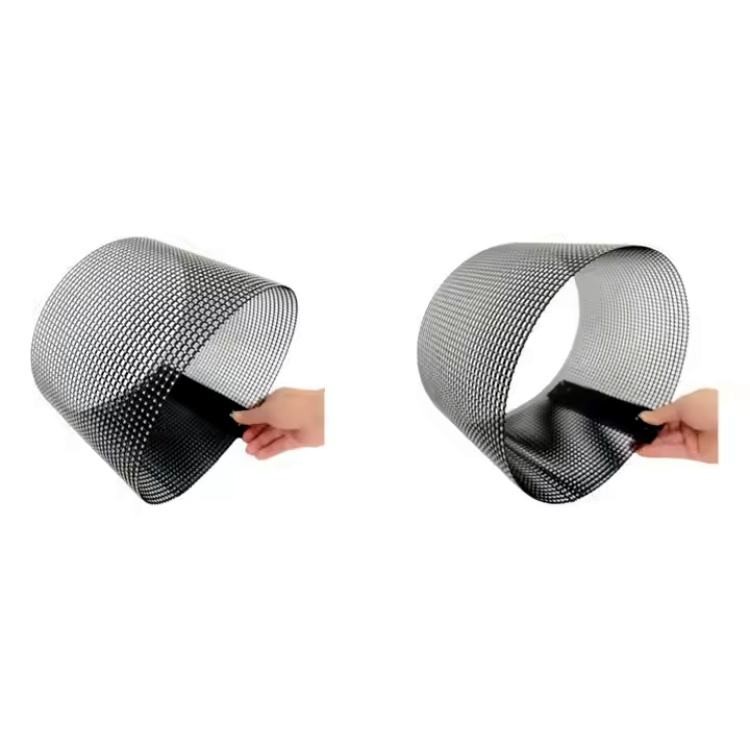

Flexible and bendable
Flexible panels that can be bent, cut, and is not limited by size or shape

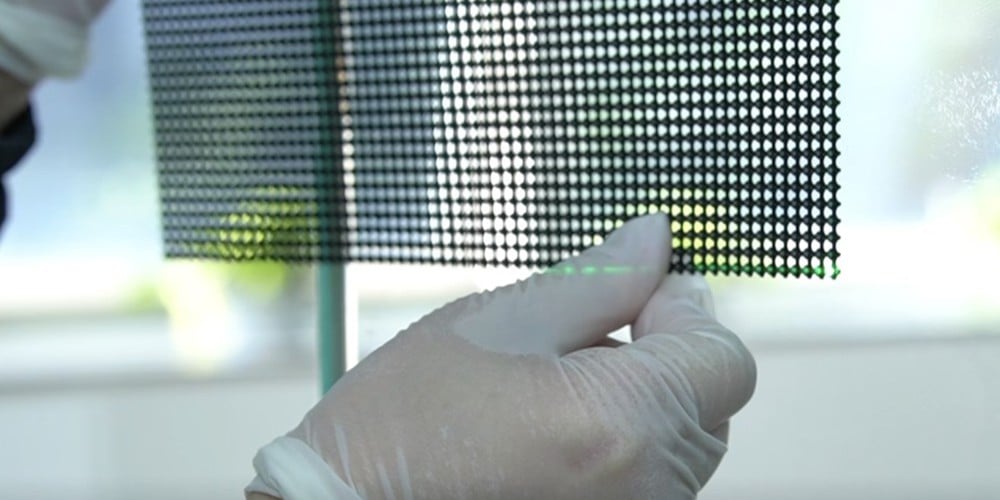

95% High transparency
Industry debut, no structural keel! Truly fully transparent,visual transparency can reach 90%.

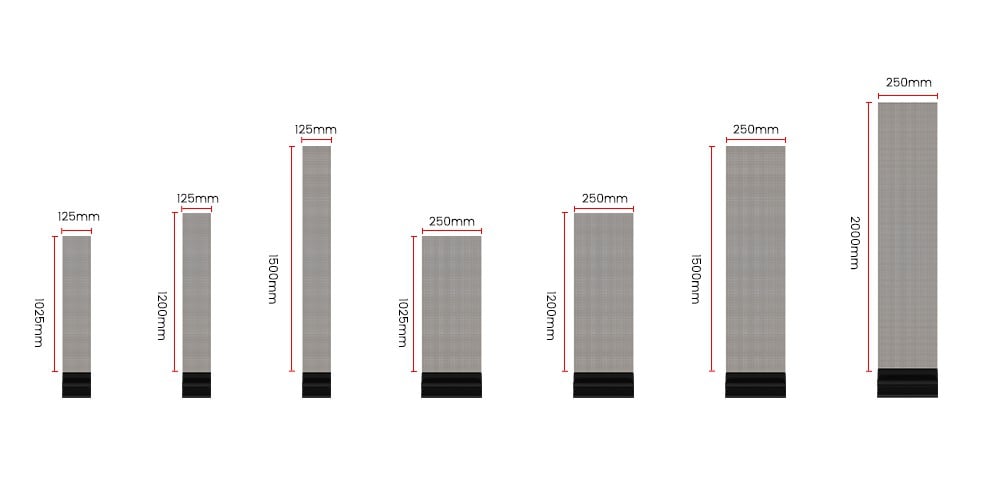

Customizable size
125*1025/125*1200/125*1500/250*1025/250*1197/250*1200/250*1500/250*2000mm

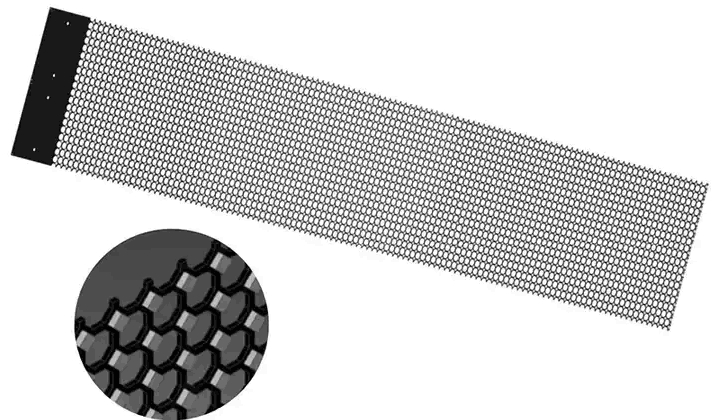

Great heat dissipation effect

Adopting light and driving integrated design, the holographic film screen without PC carrier, showing superb heat dissipation effect



Cost-saving installation

No steel frame structure or changes to the building's appearance are needed, effectively reducing transportation and installation costs.

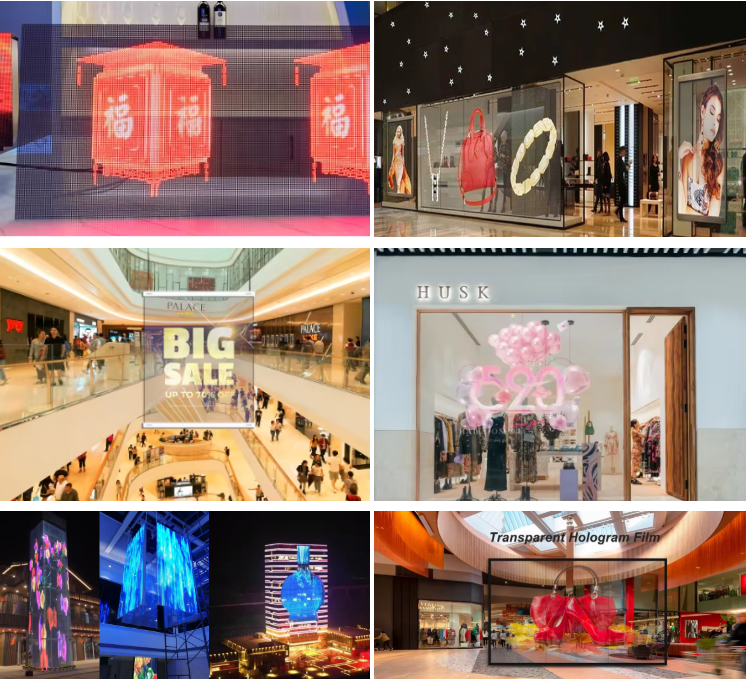

Case Reference


Specifications

Model

P2.5

P3.91

P6.25

Pixel Pitch

2.5mm

3.91mm

6.25mm

Pixel Density

160000dots/㎡

65536 dots/㎡

25600dots/㎡

LED Type

SMD1010

SMD1010

SMD2121

Module Size

1000mm*250mm

1000mm*250mm

1200mm*250mm

1000mm*250mm
1500mm*250mm

Module Resolution

200*60

250*30

166*40

Permeability

≥80%

≥85%

≥95%

Weight

≤6kg/sqm

Brightness

≥3000cd/㎡

Max.Power Consumption

400w/㎡

Ave.Power Consumption

200w/㎡

Refresh Rate

3840HZ

Color Temperature

3200K-8500K

IP Grade

IP30

Input Voltage

AC 220V/110V ±10%, 50-60Hz

Working Temperature

-20~50℃

Lifespan

100000H
