F Series

Product Item : F2
Category： Creative Led Screen
soft led module
curved led screen
flexible led screen
indoor video wall
Product description： Flexible LED Screen is designed for indoor advertising, offering vibrant full-color displays, It offers strong flexibility to form any shape.
INQUIRY EMAIL

CONWIN Flexible LED Screen for Advertising

Products features:

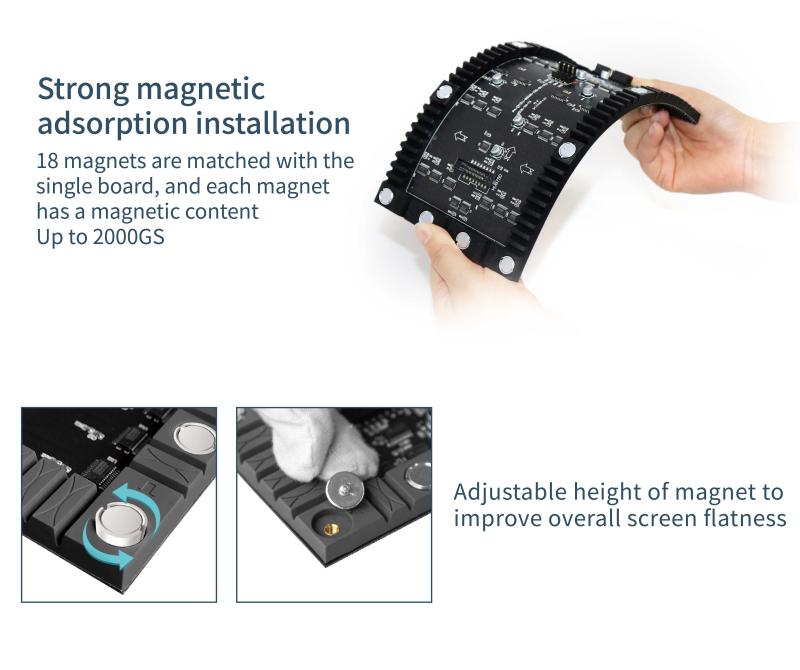

1.Add silicone frame + mask. Embedded magnet,
2.Reduce stitching gap. Soft, thin, strong magnets column, flexible led module.
3.SMT technology reduced the bad solder and static issue significantly clean, exquisite and high color
reproduction effect for video and text.

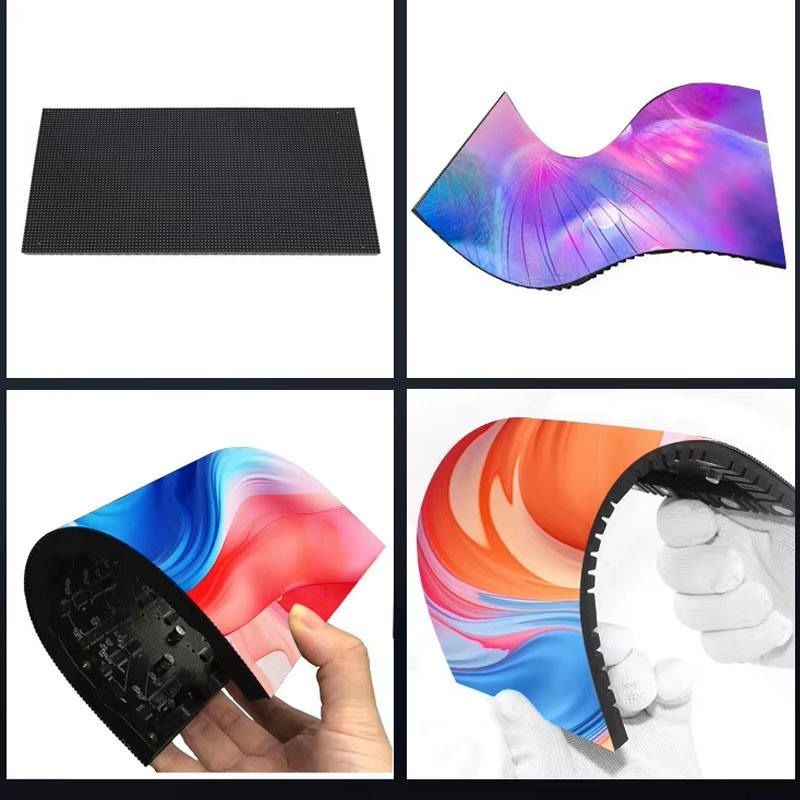

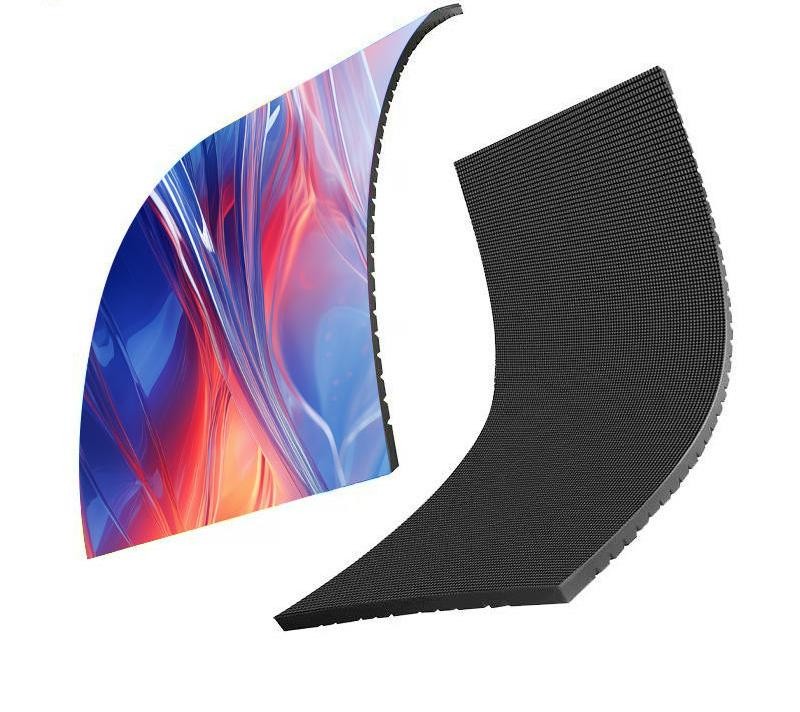

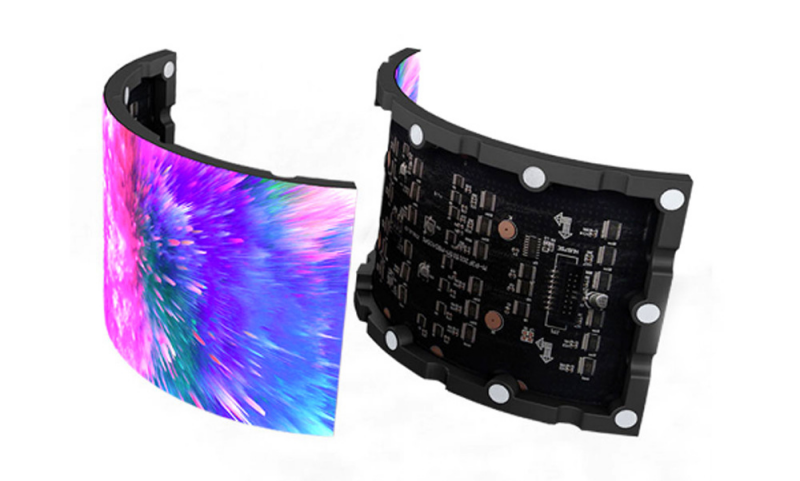

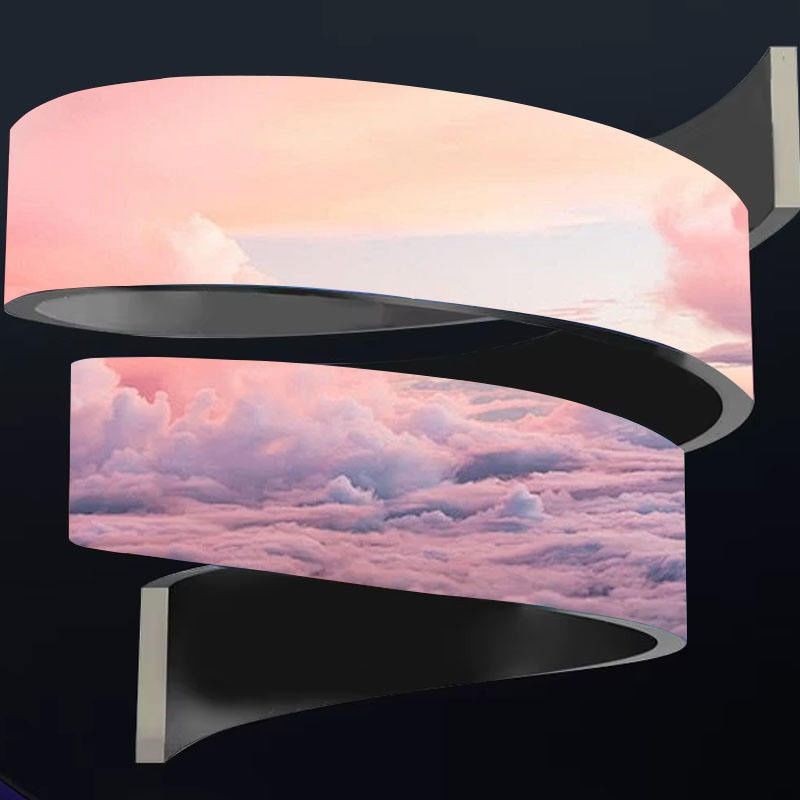

Flexible Soft LED Display module is super thin, very light weight and most flexible to design shapes, effects,

in any types, arc in any angles. With repeating curving, it won’t break LEDs as well design of mask covers.

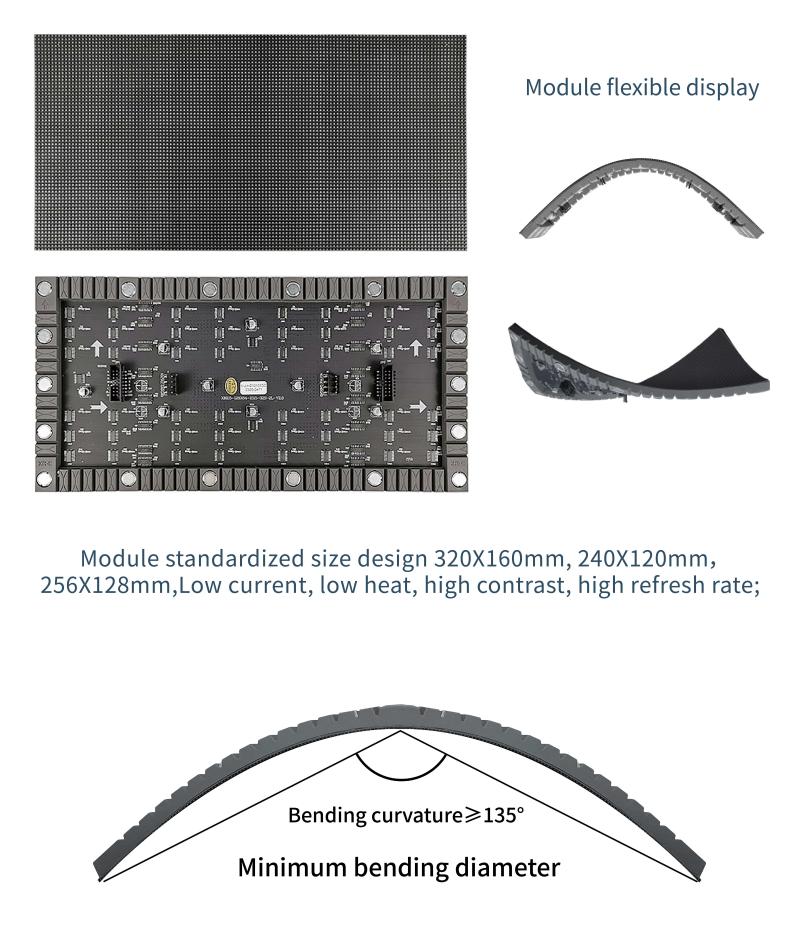

At present, 240x120mm series, 320x160mm series and 256x128mm series are available.

Ultra-thin And Ultra-light
Module’s thickness is only 8.6mm. Ultra-thin design takes up less space.
Soft,thin and light features are suitable to create more curved effects possibilities

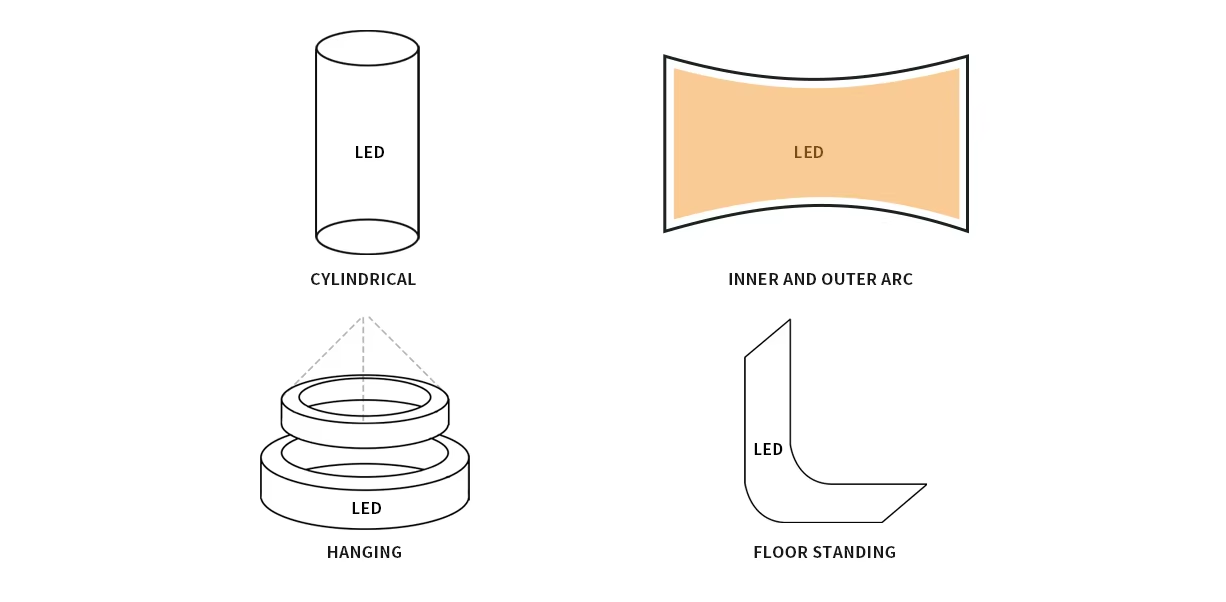

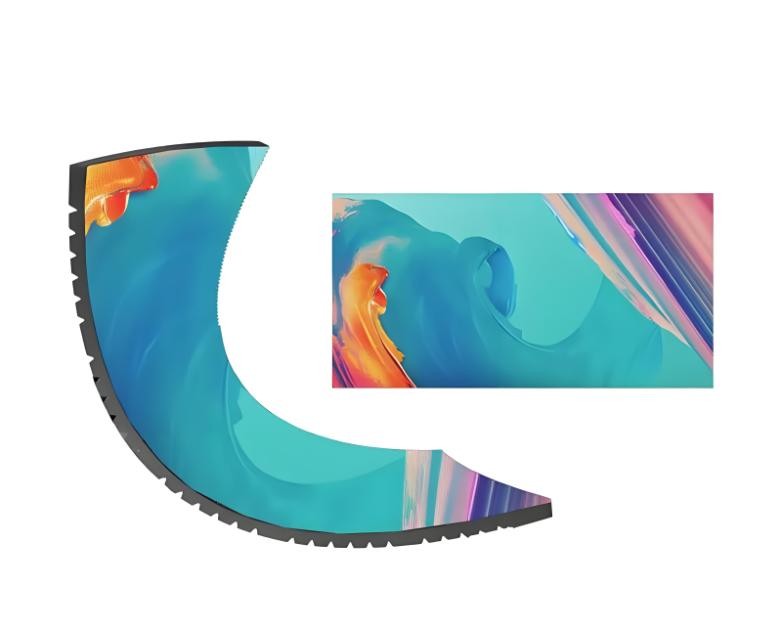

Customized Shape, Wide Application
Flexibale LED sign can be customized any shape as customer’s need, can be used in various fields and application,
such as shpping center, mall, bar, disco, stage, indoor building, outdoor buliding, television, exhibition, show.

Specifications

Pixel Pitch	1.25mm	1.56mm	1.86mm	2mm	2.5mm
LED Configuration	SMD1010	SMD1212	SMD1515	SMD1515	SMD2121
Application	Indoor	Indoor	Indoor	Indoor	Indoor
Pixel Density/sqm	640000dots	422500 dots	288906 dots	250000 dots	160000 dots
Module Size/mm	320 x 160 mm	320 x 160 mm	320 x 160 mm	320 x 160 mm	320 x 160 mm
Module Resolution	248 x 142 dots	208 x104 dots	172 x 86 dots	160 x 80 dots	128 x 64 dots
IP Rating	IP43	IP43	IP43	IP43	IP43
Scan	1/64S	1/52S	1/43S	1/40S	1/32S
Brightness /sqm	800-1000 nits	800-1000 nits	800-1000 nits	800-1000 nits	800-1000 nits
View Angle/°	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)
Gray Scale/bit	16 bit	16 bit	16 bit	16 bit	16 bit
Max. Power Consumption/W	640 W/sqm	640 W/sqm	640 W/sqm	640 W/sqm	640 W/sqm
Ave. Power Consumption/W	192 W/sqm	192 W/sqm	192 W/sqm	192 W/sqm	192 W/sqm
Refresh Frequency/Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-40℃~+60℃
Operating Humidity	10~90%RH
Operating Life	100,000Hours
