D Series

Product Item : D3
Category： Rental LED Display
curved video wall
Indoor and Outdoor
3840Hz
module magnet front service
Product description：Indoor and Outdoor flexible curved LED rental‌ for concerts & exhibitions, lightweight design, 24/7 support.
INQUIRY EMAIL

Flexible Curved Events Rental LED Screen

Feature Description

- ±45° Ultra flexible

- High precision design

- 700-4500 high brightness

- Ultra-light design

- 3840Hz High refresh

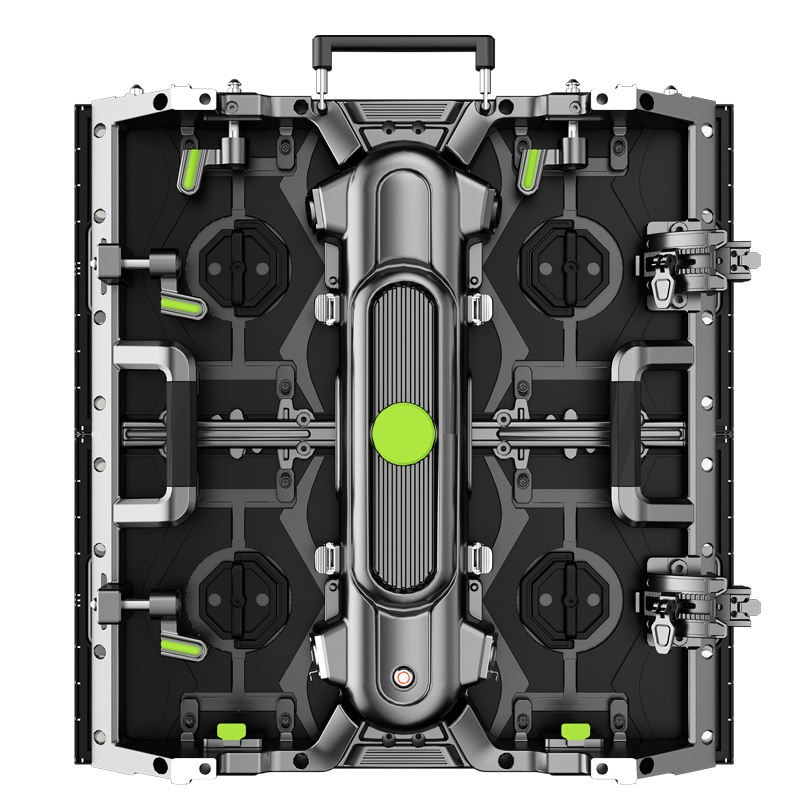

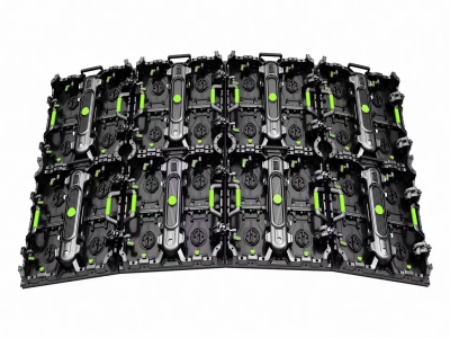

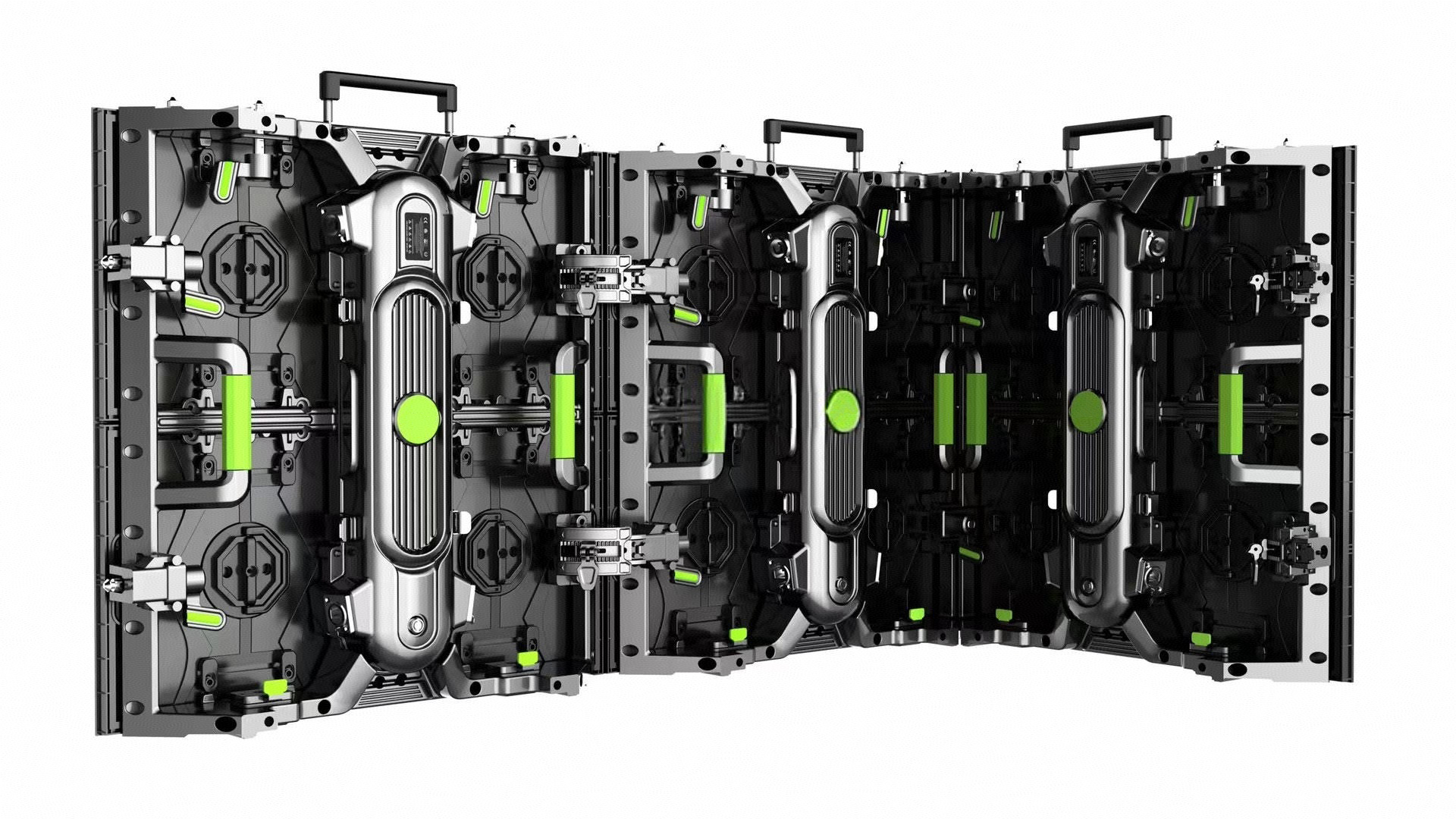

1.Flexible cabinet design

This 500mmx500mm cabinet can make bevel and add angle fast lock. It make the cabinet can assembled into curve screen or right angle screen.

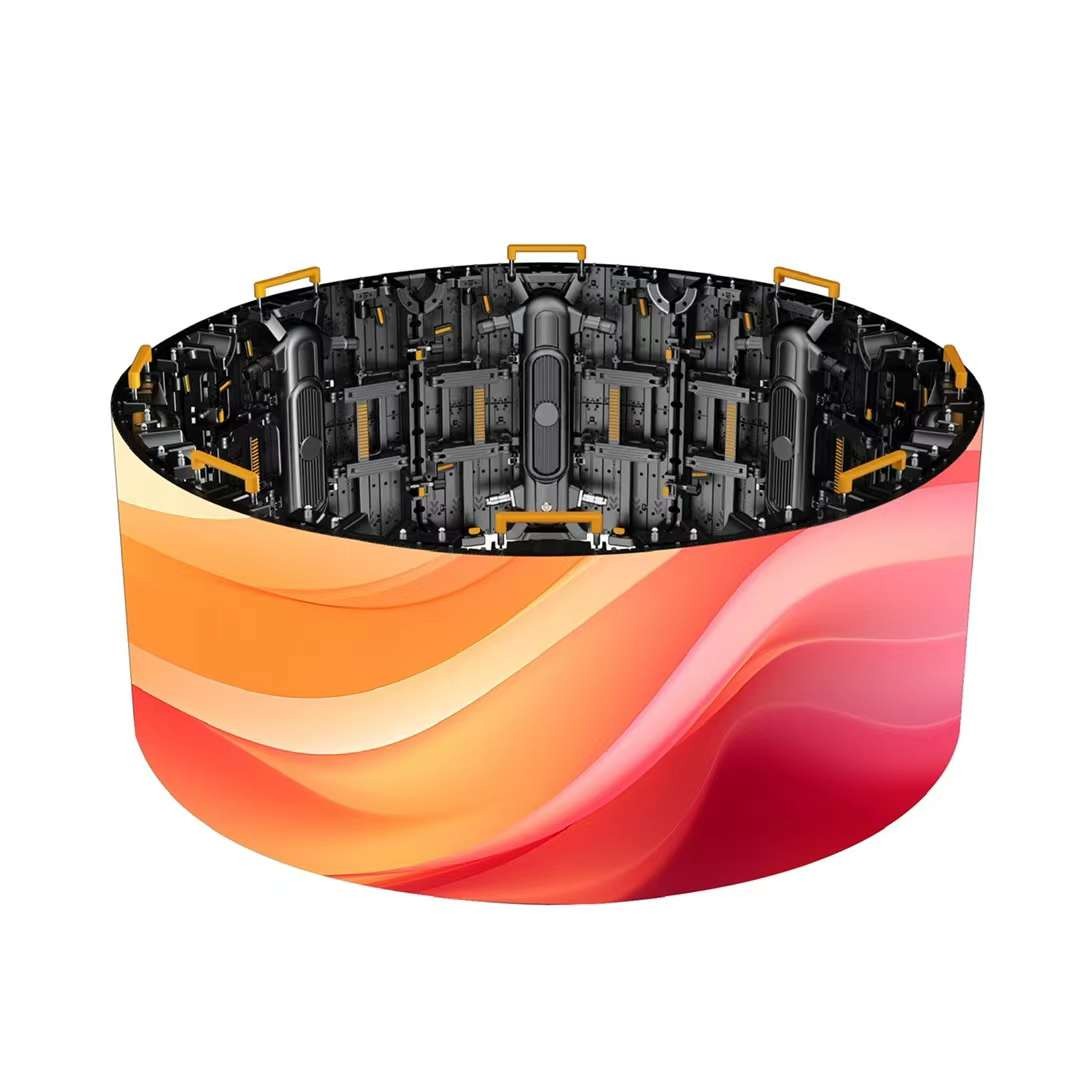

2.Inner circle and outer circle

It can be easily assembled into cylindrical LED screens. Only 8 cabinets are required to assemble into a ring.

3.Seamless splicing, super wide viewing angle, highly accurate brightness & color consistency .

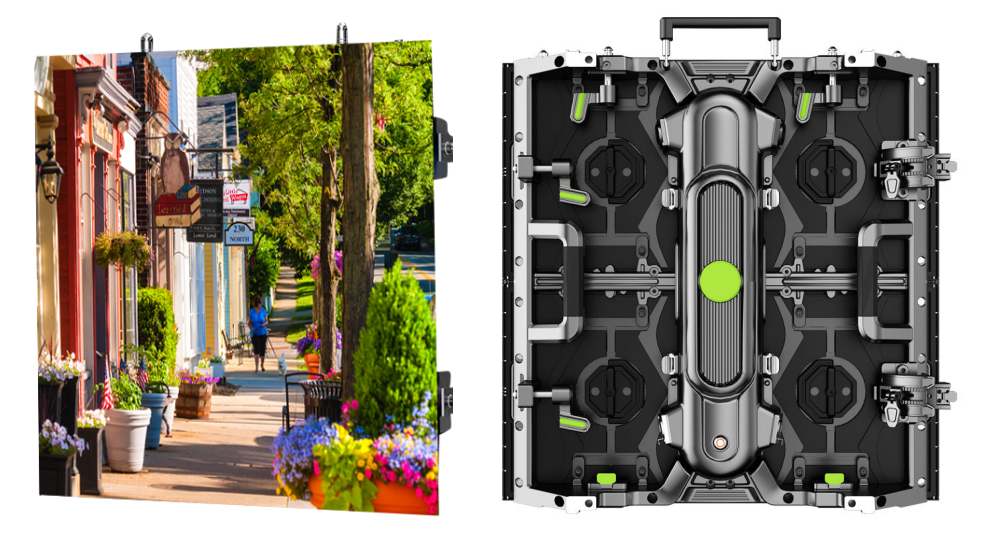

4..Front service module allows easy maintenance, saving time & space .16 Bit grey grade processing, the
color transition will be more natural. Super high refresh rate, high frame frequency, no ghosting.

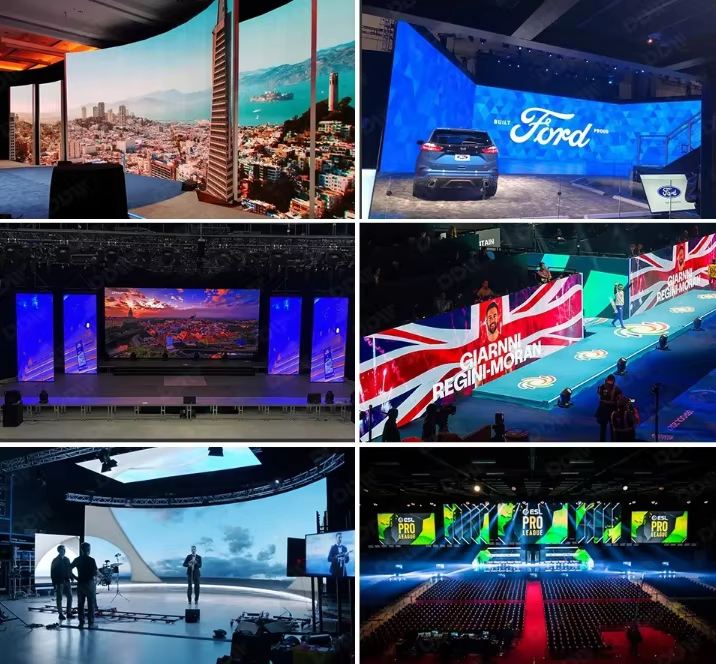

Case

Specifications

Pixel pitch (mm)	P2.604(indoor)	P2.976(indoor)	P3.91(indoor)	P2.976(outdoor)	P3.91(outdoor)
Lamp model	SMD1515	SMD2020	SMD2020	SMD1415	SMD2020
Module pixel resolution(dots)	192*192	168*168	128*128	192*192	128*128
Module size(mm)	250*250	250*250	250*250	250*250	250*250
Pixel density (dots/m²)	147474	112896	65410	147474	65410
Brightness(nits)	700	700	700	4200	4200
white color temperature(°)	6000~10000	6000~10000	6000~10000	6000~10000	6000~10000
Viewing angle(°)	H:160V:140	H:160V:140	H:160V:140	H:160V:140	H:160V:140
Panel dimention	500*500	500*500	500*500	500*500	500*500
Cabinet material	Die-casing aluminum	Die-casing aluminum	Die-casing aluminum	Die-casing aluminum	Die-casing aluminum
Panel weight	7.5KG	7.5KG	7.5KG	7.5KG	7.5KG
Grey scale	14Bit	14Bit	14Bit	14Bit	14Bit
Frame frequency	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz
refresh rate(Hz)	3840	3840	3840	3840	3840
Driving method	1/32s	1/28s	1/16s	1/21s	1/16s
Working Voltage(V)	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Input Power(Hz)	50/60	50/60	50/60	50/60	50/60
Max Power consumption/panel(w)	480	480	480	480	480
Power consumption/panel(w)	160	160	160	160	160
Lifespan(H)	100000	100000	100000	100000	100000
IP Level	IP31	IP31	IP31	IP65	IP65
