Outdoor T Series

Product Item : T Series
Category： Outdoor LED Display
Front maintenance
IP65 Waterproof for both front and back side
Energy saving
Super Slim
Product description：T series outdoor LED screen features aluminum cabinet, offering high brightness (>6500 CD/㎡), wide viewing angles (140°/140°), and energy-saving performance with low power consumption .
INQUIRY EMAIL

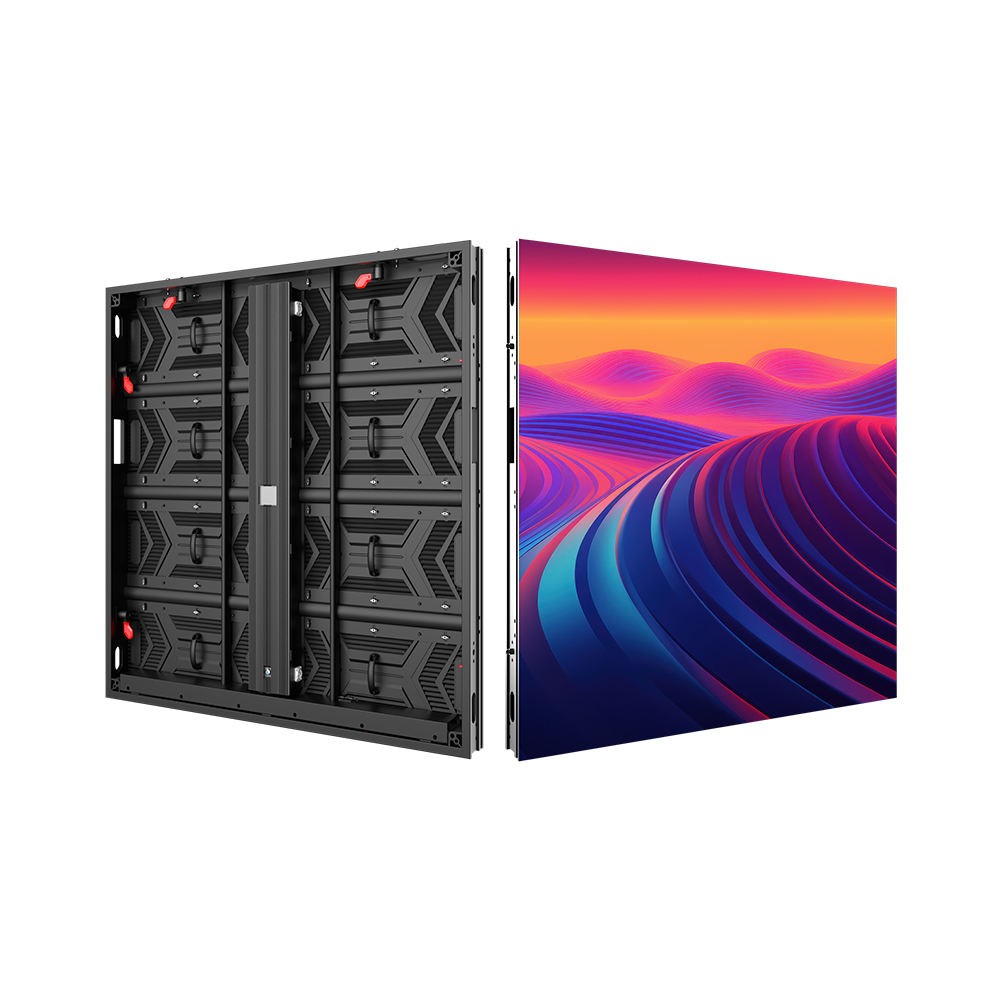

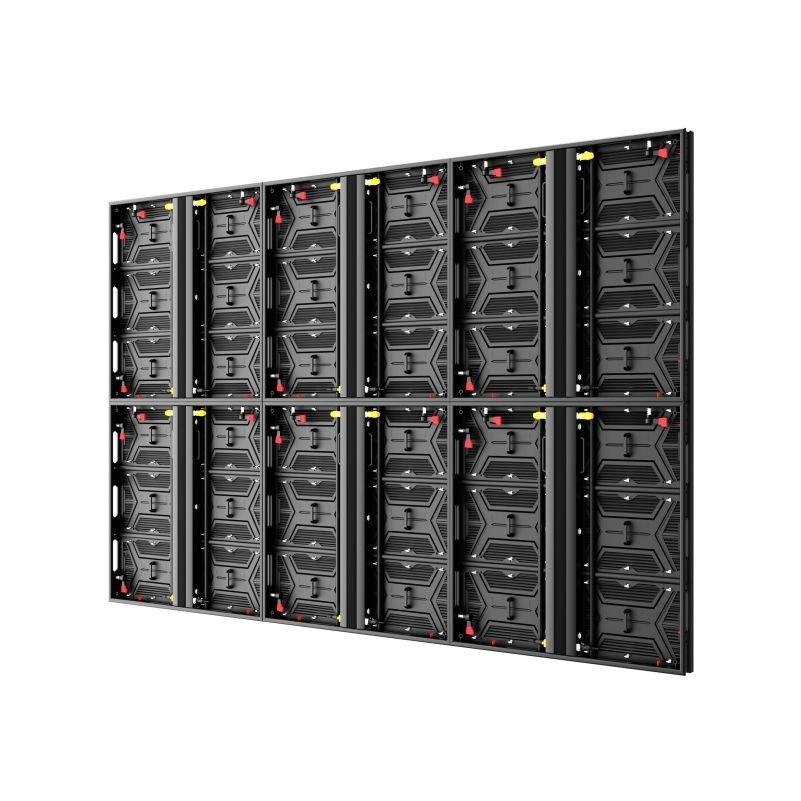

Energy Saving IP65 Outdoor Fixed LED Screen Aluminum Cabinet

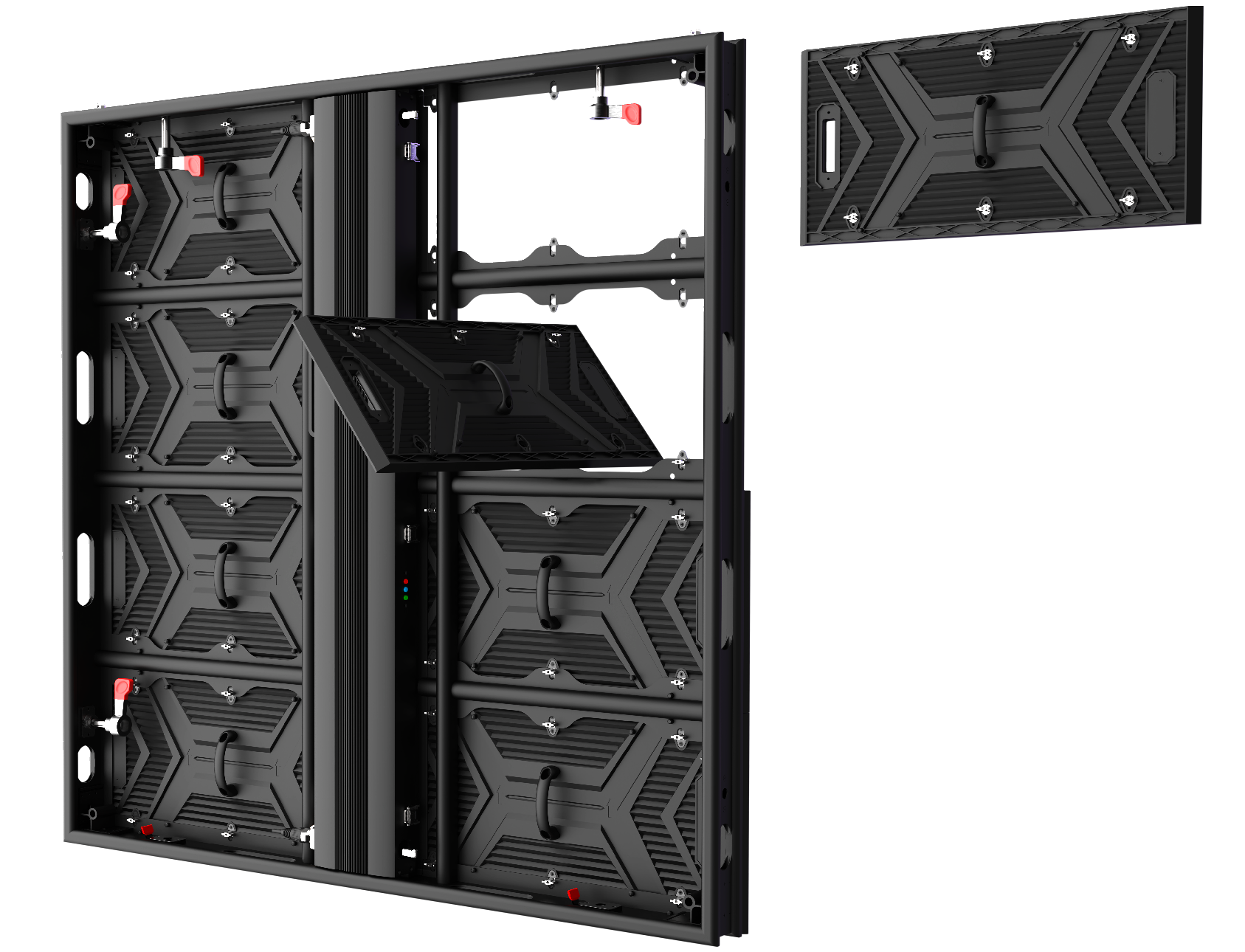

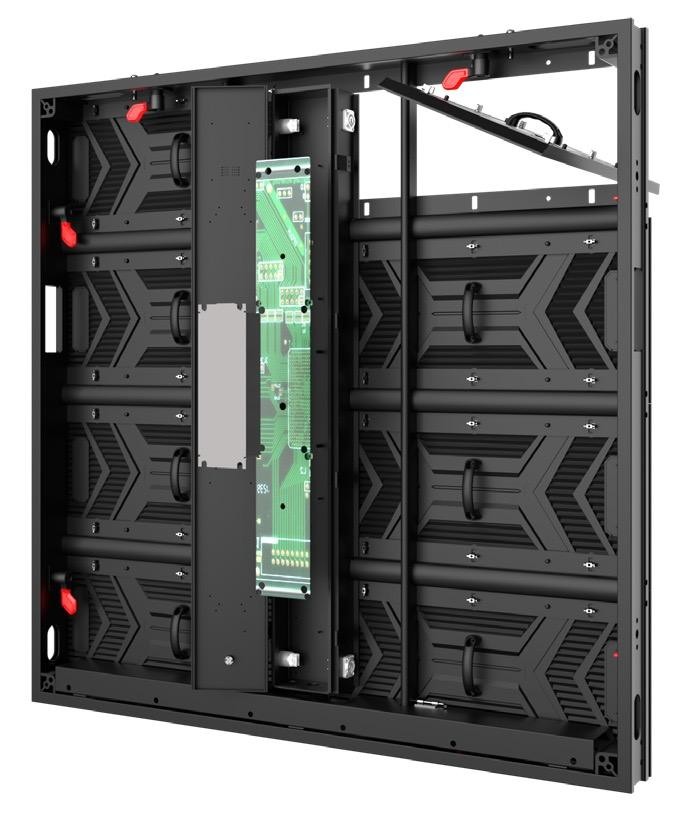

1.Full-front and Rear maintenance
Support front and back maintenance, the LED panel can be assemble and disassemble easily and quickly.

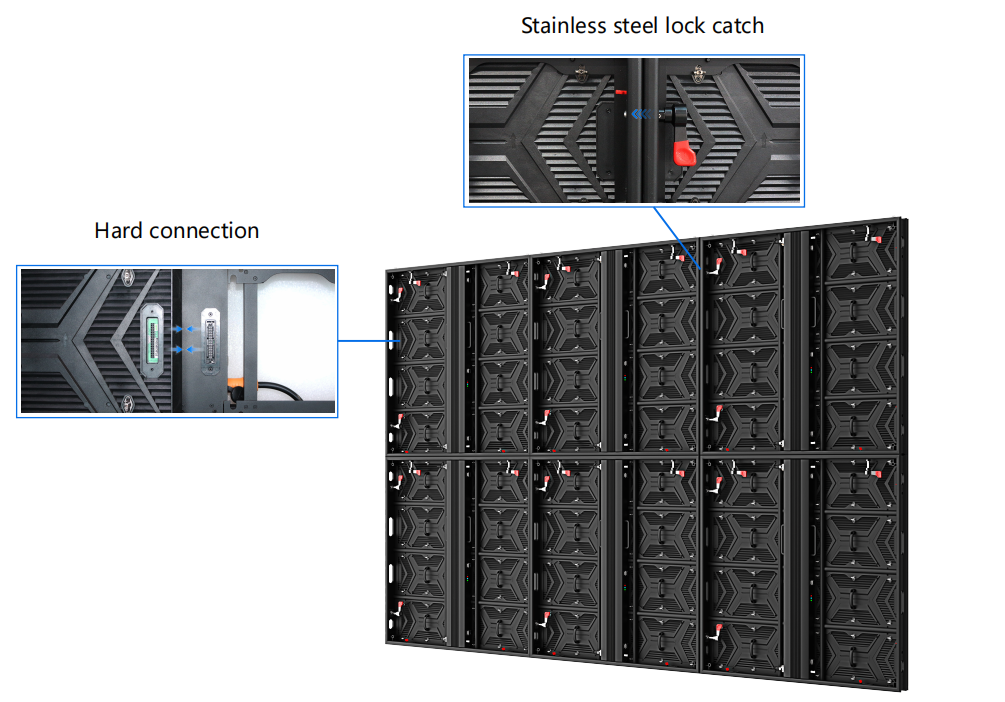

2.Seamless splicing
High quality aluminum profiles combine the advantages of lightweight, excellent heat dissipation,high precision, and outstanding flatness to meet the demanding needs of multiple scenarios.

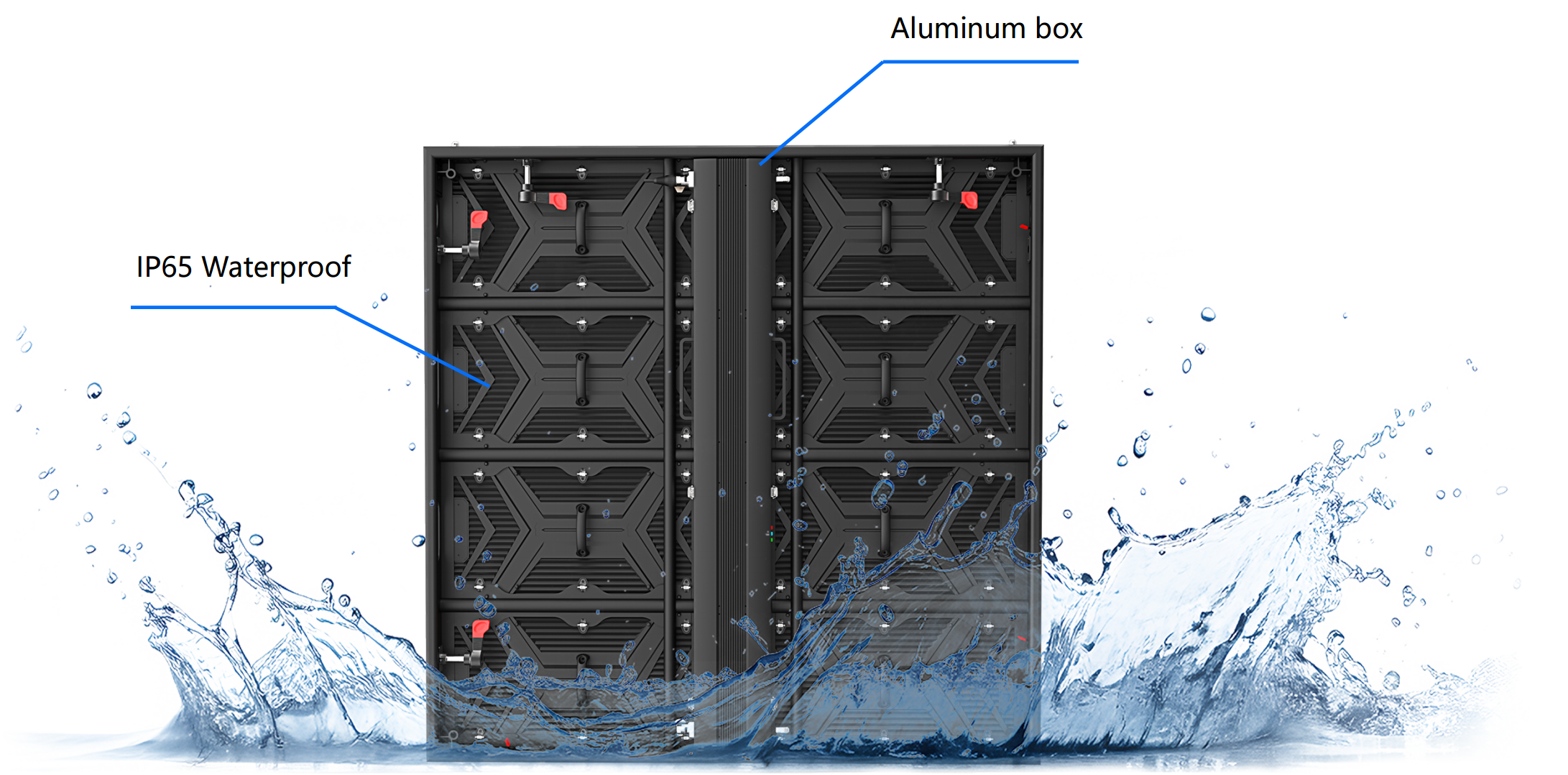

3.IP65 Waterproof for both front and back side

Fearless of extreme weather conditions.It has the advantages of high temperature resistance, rainstorm resistance, high humidity resistance, low temperature resistance, etc.

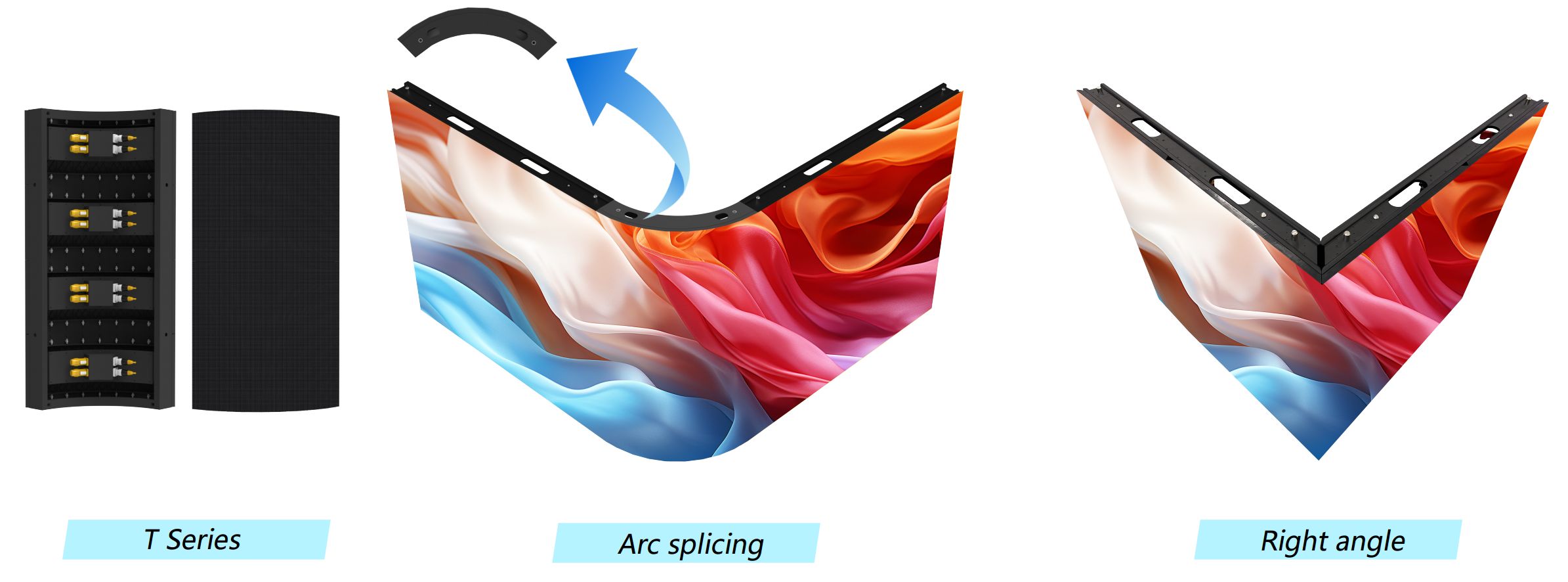

4.Creative Design

Supports splicing and installation in various ways, including right angles and arcs, and can be used for naked-eye 3D solutions.

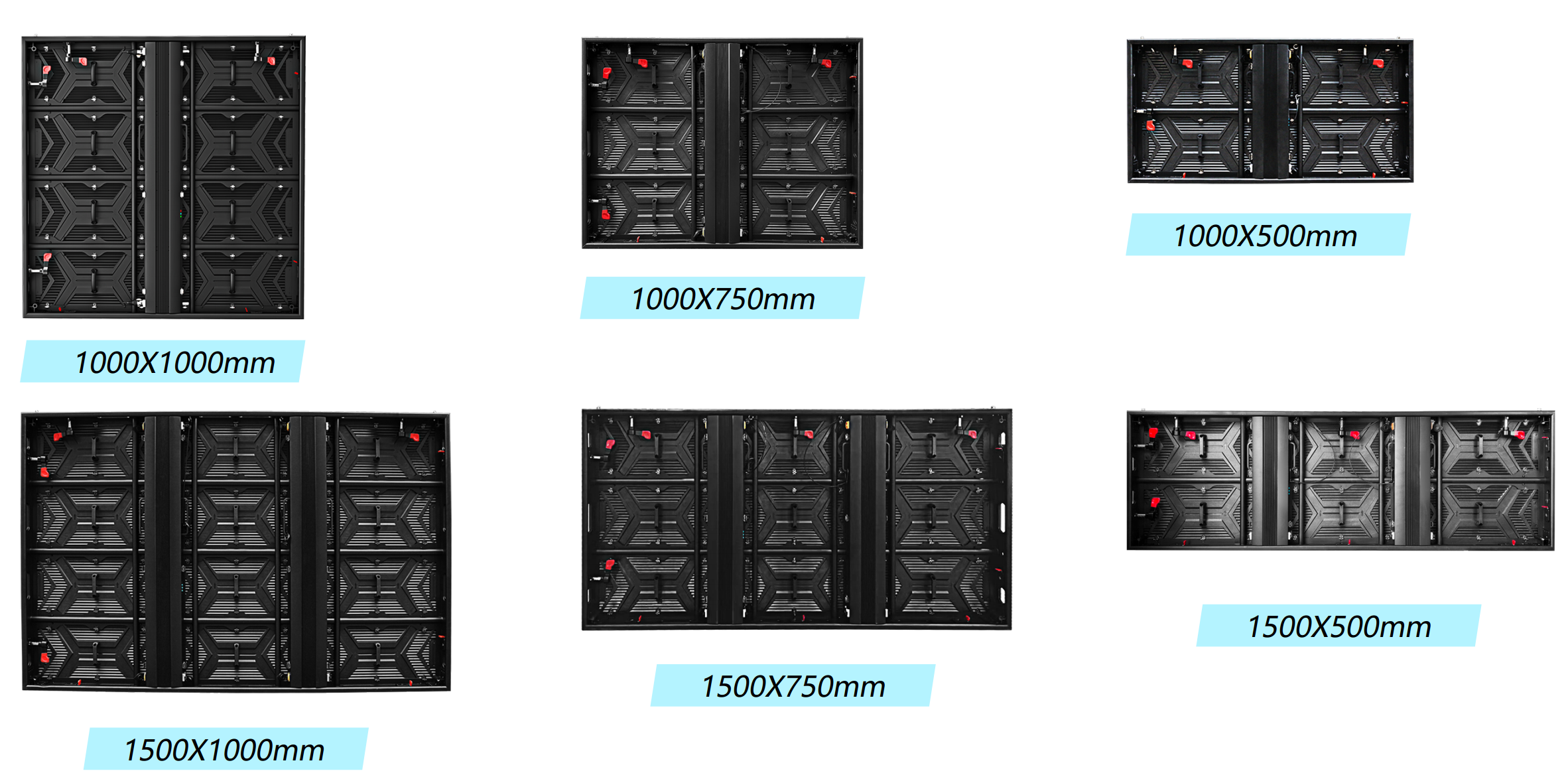

5.Multiple cabinet sizes are available

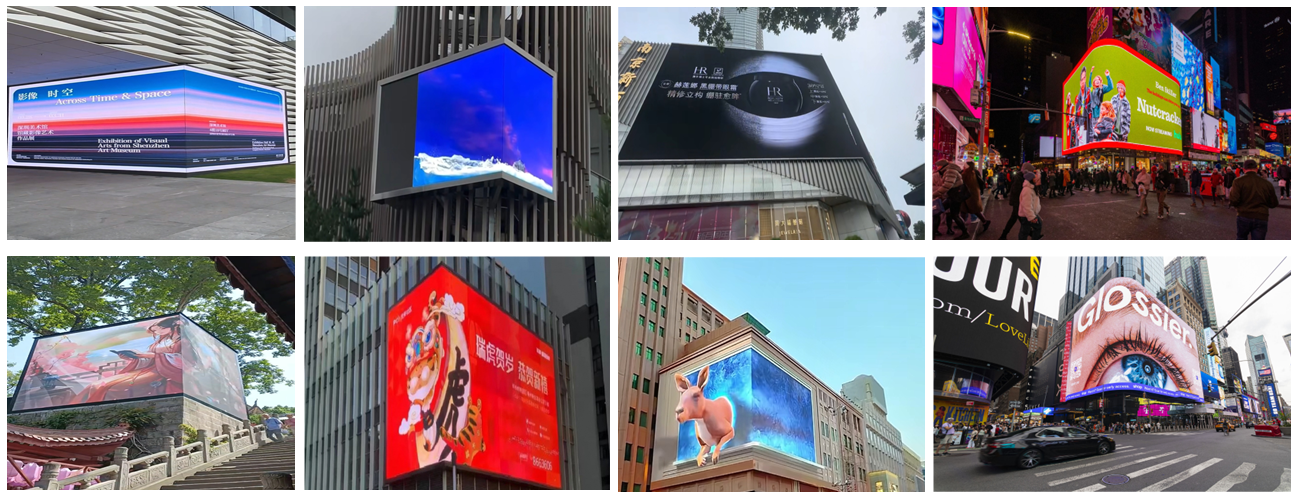

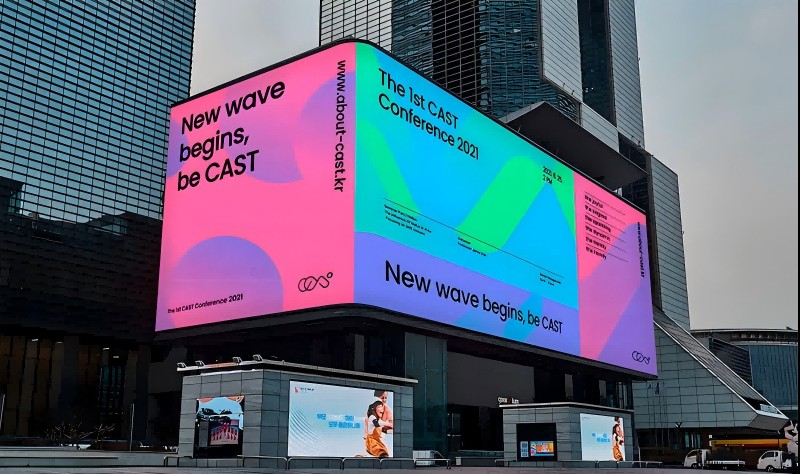

Case Reference

Specifications

Pixel Pitch	P2.976	P3.91	P4.81	P6.25	P7.81	P10.42
SMD Type	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density(dots/㎡)	112896	65536	43264	25600	16384	9216
Module Resolution	168x84	128x64	104x52	80x40	64x32	48x24
Module Size (mm)	500X250
Cabinet Size (mm)	1000X1000X83(Customizable for1500 width and 500/750 height）
Panel Resolution	336x336	256x256	208x208	160x160	128x128	96x96
Module quantity(W xH)	2X4
Panel Weight(kg)	22.5
Maintenance Mode	Front & Rear
Cabinet material	Aluminum
Brightness(Nits)	6000-10000
Color temperature(K)	5000-12000 Optional
Viewing Angle(H/V)	140°/160°
Best viewing distance	3-100m	4-100m	4-100m	6-150m	8-150m	10-200m
Contrast Ratio	10000 : 1
Frame -changing Frequency(Hz)	50/60
Driving Mode	1/21s	1/16s	1/13s	1/8s	1/4s	1/2s
Grey Level	16bit
Refresh Rate (Hz)	3840
Max power consumption(W/㎡)	650
Avg power consumption(W/㎡)	100-200
IP Rating	IP65
Power supply requirements	AC90-264V,47-63Hz
Working Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Storage Temp/Humidity(℃/RH)	-20~60℃/10%~85%
